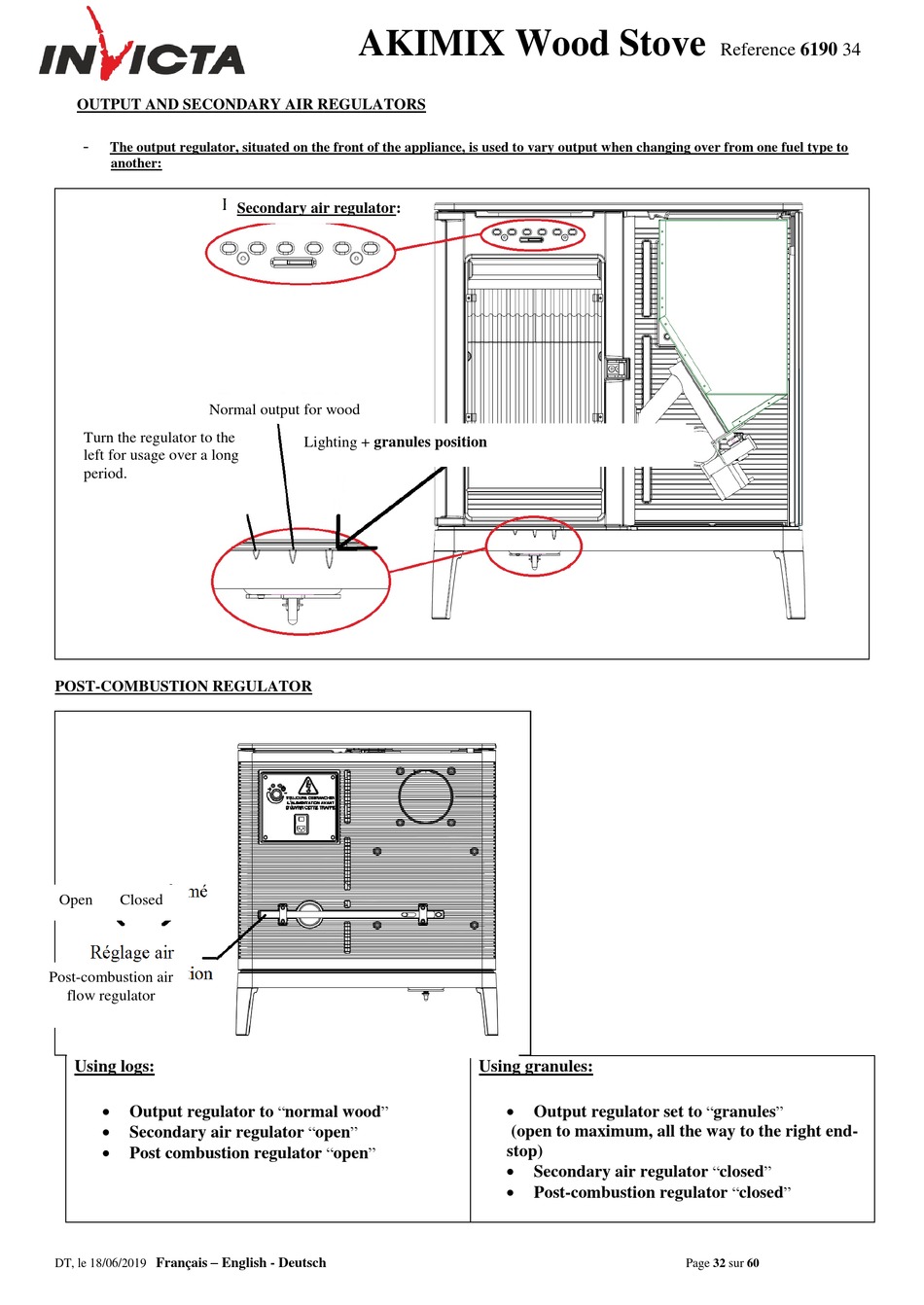

OUTPUT AND SECONDARY AIR REGULATORS
-
The output regulator, situated on the front of the appliance, is used to vary output when changing over from one fuel type to
another:
Normal output for wood
Turn the regulator to the
left for usage over a long
period.
POST-COMBUSTION REGULATOR
Open Closed
Open Closed
Normal output for
wood
Turn the regulator to the
left for usage over a long
period.
Post-combustion air
flow regulator
Using logs:

Output regulator to

Secondary air regulator

Post combustion regulator
Français – English - Deutsch
DT, le 18/06/2019
AKIMIX Wood Stove
Secondary air regulator:
Lighting + granules position
" "
normal wood
" "
open
" "
open
Using granules:

Output regulator set to
(open to maximum, all the way to the right end-
stop)

Secondary air regulator

Post-combustion regulator
Reference 6190 34
" "
granules
" "
closed
" "
closed
