Invicta ANTAYA Owner's Manual

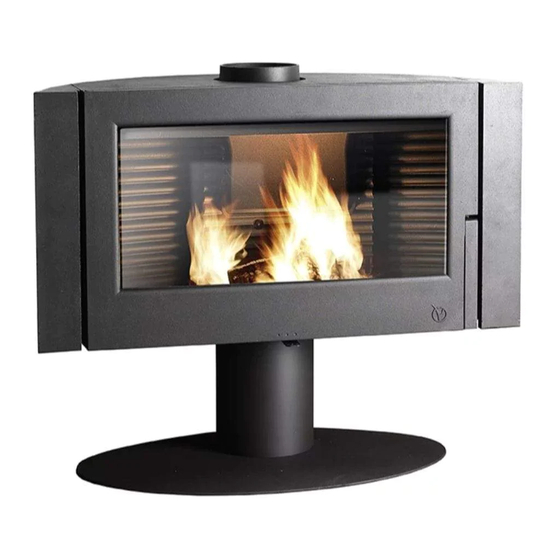

Cast iron wood stove
Hide thumbs
Table of Contents

Advertisement

Quick Links

OWNER'S MANUAL
Installation and Operating Instructions
SAVE THIS OWNER'S MANUAL
FOR FUTURE REFERENCE
PLEASE READ THIS ENTIRE OWNER'S MANUAL BEFORE YOU INSTALL AND USE YOUR
NEW INVICTA WOOD STOVE.
If this room heater is not properly installed, a house fire may result.
To reduce the risk of fire, follow the installation instructions.
Failure to follow these instructions can result in property damage, bodily injury, or even death.
Conforms to UL Std. 1482
Certified to ULC Std. S627
CONTACT LOCAL AUTHORITIES WITH JURISDICTION (BUILDING DEPARTMENT or FIRE
OFFICIALS), ABOUT PERMITS REQUIRED, RESTRICTIONS AND INSTALLATION
INSPECTION IN YOUR AREA.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ANTAYA and is the answer not in the manual?

Questions and answers

Related Manuals for Invicta ANTAYA

Summary of Contents for Invicta ANTAYA

  • Page 1 FOR FUTURE REFERENCE PLEASE READ THIS ENTIRE OWNER’S MANUAL BEFORE YOU INSTALL AND USE YOUR NEW INVICTA WOOD STOVE. If this room heater is not properly installed, a house fire may result. To reduce the risk of fire, follow the installation instructions.
  • Page 2 NOTES ON STOVE OPERATION AND EFFICIENCY Rating: You have purchased a Invicta stove tested to EPA Method 28R single burn rate stove 40 CFR Part 60 where applicable. This stove is certified to comply with the U.S. Environmental Protection Agency 2020 particulate emissions standard using crib wood.

  • Page 3: Table Of Contents

    ITAYA .............................. 32 OÊLE À BOIS GAYA FEUILLE ..........................34 OÊLE À BOIS ............................36 OÊLE À BOIS YMPHONIA ANTAYA ............................38 OÊLE À BOIS THEÏA ............................... 40 OÊLE À BOIS AKAN ..............................42 OÊLE À BOIS Energy Distribution 2015...

  • Page 4: Introduction

    This Invicta series as one of the largest glass window Contact your dealer for any necessary warranty on the market and allows you to enjoy the fire from a service.

  • Page 5: Codes

    • Never slam the door or use the door to force wood ODES in to the stove. When you install your Invicta serie woodstove, it is • Never over-fire your stove. imperative that you adhere to all Federal and local •...

  • Page 6: Periodic Checklist

    Establish a routine for the fuel, wood burner and ERIODIC HECKLIST firing technique. Check daily for creosote build-up Perform each of these tasks at the specified intervals. until experience shows how often you need to clean to be safe. Be aware that the hotter the fire the less At the End of Every Week: creosote is deposited, and weekly cleaning may be •...

  • Page 7: Specifications

    Firebox Capacity: 2.32 cubic feet. ANTAYA 6114-44 Maximum Log Length: Up to 24” (61cm). Emissions: 1.9 g/hr. Burn Time: Up to 6+ hrs. Note: The amount and weight of wood contained per cubic foot of firebox volume can vary from 10 to 25 lbs.
  • Page 8 GAYA ARDOISE 6117-44 SYMPHONIA 6115-44 GAYA FEUILLE 6118-44 THEIA 6116-44 ITAYA 6110-44 Energy Distribution 2015...

  • Page 9: Installation

    When clearances to all of these combustibles before actually connecting your stove. you receive the Invicta, carefully unpack and inspect the stove and all accompanying parts. Ensure that all If the floor is made of combustible material, then a parts are included inside the stove.

  • Page 10: Hearth Requirements & Floor Protection

    EARTH REQUIREMENTS FLOOR PROTECTION Ensure you protect combustible flooring with a covering of non-combustible material. This Invicta series does not require an insulated hearth pad. The minimum floor protection must be met under the stove and extend beyond the stove as follows: The minimum floor protection for US installations is 56 1/4in x 33in.
  • Page 11 Figure 4 – Clearance to Combustibles Parallel Corner Corner Clearances 18”-46cm 19”-48cm 26”-66cm Single wall Connector 35”-89cm 21-53cm 31.5”-80cm Double Wall Connector – 18”-46cm 12”-30cm 18.5”-47cm 34.5”-87cm 21”-53cm 31.5”-80cm Inc. Rear Heat Shield Energy Distribution 2015...
  • Page 12 Figure 5 Chimney Connector Clearances Single Wall Pipe Double Wall Pipe Inc. Rear Heat Through the wall top flue exit Shield 9” (23cm) 7” (18 cm) 14” (36 cm) 12” (32cm) For double wall pipe clearance to ceiling, refer to pipe manufacturer specifications. clearances See Parallel Clearance to Combustibles for to the sides of the stove.

  • Page 13: Chimney Connector Systems And Clearances From Combustible Walls

    CHIMNEY CONNECTOR SYSTEMS AND CLEARANCES FROM COMBUSTIBLE WALLS ESIDENTIAL EATING PPLIANCES Minimum 3.5in thick brick masonry all framed into combustible wall with a minimum of 12in. brick separation from clay liner to combustibles. The fire clay liner shall run from outer surface of brick wall to, but not beyond, the inner surface of chimney flue liner and shall be firmly cemented in place.

  • Page 14: Outside Air Supply

    Figure 6 Trim and Mantle Clearances UTSIDE AIR SUPPLY & ENTING COMPONENTS CONFIGURATION REQUIREMENTS • You can connect an outside air source as closed as DO NOT CONNECT THIS UNIT TO A CHIMNEY possible to this stove using an optional air dispenser. FLUE USED BY ANOTHER APPLIANCE The advantage of providing outside air directly to the •...
  • Page 15 Be sure to follow the manufacturer’s instructions • • Only install this stove to a lined masonry chimney to maintain an effective vapor barrier at the or an approved high temperature prefabricated location where the chimney of other component residential type building heating...
  • Page 16 In such cases, a damper can help requires a 7" (178 mm) inside diameter flue for new regulate the draft. The Invicta series requires a draft installations. A 7” diameter flue provides adequate between 0.06" and 0.1" WC. For drafts above 0.1"...
  • Page 17 (4.5 m) off the floor. The recommended requirements or other approved material. maximum chimney height is 45 feet (13.5m).This Invicta series requires a draft between 0.06” and 0.1” NTERIOR CHIMNEY REQUIREMENTS • water column. Ensure your chimney is long enough Must have at least 2"...
  • Page 18 Figure 9 – Typical Chimney Configurations Energy Distribution 2015...

  • Page 19: Operation

    OPERATION otherwise operate this wood heater in a manner inconsistent with operating instructions in this manual.’’ Once your INVICTA is installed, you are ready to light a fire. HOOSING IREWOOD Every installation, season’s firewood, and operator’s Burn only natural firewood (known as cordwood) in technique varies.

  • Page 20: Building Afire

    Basswood (Linden) 2,108 13.8 Medium High Buckeye, Ohio 1,984 13.8 Beech, European 3,757 Cottonwood 2,108 13.5 Maple, Sugar 3,757 Cedar, White 1,913 12.2 Oak, Red 3,757 Ash, White 3,689 23.6 Birch, Yellow 3,689 23.6 Moisture content also plays a key role in the performance of your stove.

  • Page 21: Normal Operation

    of the paints and oils used when manufacturing the chunks of wood should be added to the fire to woodstove. If you find it necessary, open a few reach safe break-in temperatures. windows to vent your room. The smoke and fumes 5) Once the stove is warm but not hot to the touch, will usually subside after 10 to 20 minutes of allow the fire to die out completely.

  • Page 22: Maintenance

    open the door completely. This procedure allows the firebox to clear of smoke before the door is open fully. EMOVAL ISPOSAL SHES In addition, reloading on a bed of hot, red coals You can leave a thin layer of ashes in the firebox if reduces smoking time and brings fresh fuel up to a preferred.

  • Page 23: Glass Replacement Procedures

    Use only 4mm x 329mm x 395mm Ceramic, or 1. Follow the instructions included with the replacement Neoceram glass. Contact your INVICTA dealer. glass kit. 2. Remove the screws from the glass clips (use Figure 20: Front Door assembly penetrating oil if necessary) –...

  • Page 24: Gaskets

    If the door seal leaks, ROUBLESHOOTING a new gasket will ensure a tight seal and improve stove performance. We recommend you only use INVICTA replacement OMMON SSUES gaskets when you need to replace your door gasket.
  • Page 25 dramatically affect stove performance, the problems optional outside air dispenser, which leads to the are typically temporary and solve themselves once the outside of the building, can correct this problem. weather changes. Tall Trees or Buildings: These obstructions, when If you question whether your stove is producing located close to the top of the chimney can cause adequate heat, the best way to troubleshoot the chronic or occasional downdrafts.

  • Page 26: Troubleshooting Guide

    TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE SOLUTIONS STOVE Operating Technique Slightly crack the door one minute before fully opening doors. SMOKES Cold Chimney or reverse Preheat the chimney when first starting a fire. Briefly open a draft window in the room containing the stove. Blocked Chimney Examine the chimney and stovepipe for blockage or creosote accumulations.

  • Page 27: Safety Label

    SAFETY LABEL Energy Distribution 2015...

  • Page 28: Warranty

    WARRANTY Energy Distribution 2015...

  • Page 29: Annex - Parts

    ANNEX - PARTS Energy Distribution 2015...

  • Page 30: Poêle À Bois Gaya Ardoise

    POÊLE À BOIS GAYA ARDOISE référence 6117 44 Repère Désignation Référence Buse 7 pouces visée ED BVS-7002 Dessus FB 610582 Base de Buse ED BVS-7001 Tirant AS 610127A Vis tête fraisée POZY de 6x16 AV 8656160 Vis tête bombée hexagonale creuse de 6x20 AV 8686200 Fond FB 610586...
  • Page 31 Energy Distribution 2015...

  • Page 32: Poêle À Bois Itaya

    POÊLE À BOIS ITAYA référence 6110 44 Repère Désignation Référence Buse 7 pouces visée ED BVS-7002 Dessus FB 610582 Tirant AS610127A Base de Buse ED BVS-7001 Vis tête fraisée POZY de 6x16 AV 8656160 Vis tête bombée hexagonale creuse de 6x20 AV 8686200 Fond ED 610586...
  • Page 33 Energy Distribution 2015...

  • Page 34: Poêle À Bois Gaya Feuille

    POÊLE À BOIS GAYA FEUILLE référence 6118 44 Repère Désignation Référence Buse 7 pouces visée ED BVS-7002 Dessus FB 610582 Base de Buse ED BVS-7001 Tirant AS 610127A Vis tête fraisée POZY de 6x16 AV 8656160 Vis tête bombée hexagonale creuse de 6x20 AV 8686200 Fond ED 610586...
  • Page 35 Energy Distribution 2015...

  • Page 36: Poêle À Bois Symphonia

    référence 6115 44 POÊLE À BOIS SYMPHONIA Repère Désignation Référence Buse 7 pouces visée ED BVS-7002 Dessus FB 610582 Base de Buse ED BVS-7001 Tirant AS 610127A Vis tête fraisée POZY de 6x16 AV 8656160 Vis tête bombée hexagonale creuse de 6x20 AV 8686200 Fond FB 610586...
  • Page 37 Energy Distribution 2015...

  • Page 38: Poêle À Bois Antaya

    6114 44 POÊLE À BOIS ANTAYA Repère Désignation Référence Buse 7 pouces visée ED BVS-7002 Dessus FB 610582 Base de Buse ED BVS-7001 Tirant AS 610127A Vis tête fraisée POZY de 6x16 AV 8656160 Vis tête bombée hexagonale creuse de 6x20...
  • Page 39 Energy Distribution 2015...

  • Page 40: Poêle À Bois Theïa

    POÊLE À BOIS THEÏA référence 6113 44 Repère Désignation Référence Buse 7 pouces visée ED BVS-7002 Dessus FB 610582 Base de Buse ED BVS-7001 Tirant AS 610127A Vis tête fraisée POZY de 6x16 AV 8656160 Vis tête bombée hexagonale creuse de 6x20 AV 8686200 Fond ED 610586...
  • Page 41 Energy Distribution 2015...

  • Page 42: Poêle À Bois Akan

    POÊLE À BOIS AKAN référence 6111 44 Repère Désignation Référence Buse 7 pouces visée ED BVS-7002 Dessus FB 610582 Base de Buse ED BVS-7001 Tirant AS 610127A Vis tête fraisée POZY de 6x16 AV 8656160 Vis tête bombée hexagonale creuse de 6x20 AV 8686200 Fond ED 610586...
  • Page 43 INVICTA STOVE AND FIREPLACES ARE DESIGNED AND MANUFACTURED BY: INVICTA GROUP SASU 785 520 180 R.C.S. SEDAN Greffe du Tribunal de Commerce de SEDAN Siège social INVICTA GROUP SASU ZI LA GRAVETTE 08350 DONCHERY www.invicta.fr Imported by / Importé par :...
