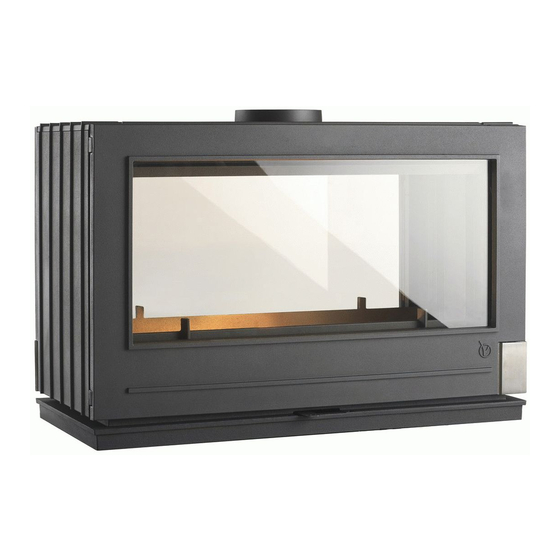

OWNER'S MANUAL
Installation and Operating Instructions
SAVE THIS OWNER'S MANUAL
FOR FUTURE REFERENCE
PLEASE READ THIS ENTIRE OWNER'S MANUAL BEFORE YOU INSTALL AND USE YOUR
NEW INVICTA WOOD STOVE.
If this room heater is not properly installed, a house fire may result.
To reduce the risk of fire, follow the installation instructions.
Failure to follow these instructions can result in property damage, bodily injury, or even death.
Conforms to UL Std. 1482
Certified to ULC Std. S627
CONTACT LOCAL AUTHORITIES WITH JURISDICTION (BUILDING DEPARTMENT or FIRE
OFFICIALS), ABOUT PERMITS REQUIRED, RESTRICTIONS AND INSTALLATION
INSPECTION IN YOUR AREA.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AARON and is the answer not in the manual?

Questions and answers

Related Manuals for Invicta AARON

Summary of Contents for Invicta AARON

  • Page 1 FOR FUTURE REFERENCE PLEASE READ THIS ENTIRE OWNER’S MANUAL BEFORE YOU INSTALL AND USE YOUR NEW INVICTA WOOD STOVE. If this room heater is not properly installed, a house fire may result. To reduce the risk of fire, follow the installation instructions.
  • Page 2 Please refer to the Warranty section of this manual for registration instructions. In case of warranty claims, please contact the point of original sale or the nearest authorized Invicta dealer. Our dealer network processes all warranty claims. Authorized Invicta dealers can be located at www.invictastoves.com.

  • Page 3: Table Of Contents

    ABLE OF ONTENTS INTRODUCTION ................................ 4 CODES ................................... 5 SAFETY INFORMATION ............................5 PERIODIC CHECKLIST ............................6 EMERGENCY PROCEDURES ..........................6 SPECIFICATIONS ..............................7 INSTALLATION ................................. 8 UNPACKING ................................8 PACK LIST ................................8 INSTALLING YOUR STOVE ........................... 8 HEARTH REQUIREMENTS & FLOOR PROTECTION ..................9 COMBUSTIBLE SURFACE REQUIRED CLEARANCES ..................

  • Page 4: Introduction

    This Invicta series as one of the largest glass window Contact your dealer for any necessary warranty on the market and allows you to enjoy the fire from a service.

  • Page 5: Codes

    • Never slam the door or use the door to force wood ODES in to the stove. When you install your Invicta serie woodstove, it is • Never over-fire your stove. imperative that you adhere to all Federal and local codes.

  • Page 6: Periodic Checklist

    Establish a routine for the fuel, wood burner and ERIODIC HECKLIST firing technique. Check daily for creosote build-up Perform each of these tasks at the specified intervals. until experience shows how often you need to clean to be safe. Be aware that the hotter the fire the less At the End of Every Week: creosote is deposited, and weekly cleaning may be •...

  • Page 7: Specifications

    PECIFICATIONS AARON 6129-04 Maximum Heat Output: 99,000 BTUs per hour of cordwood (based on independent laboratory test results). Floor Size of Heated Area: Up to a maximum of 1,500 square feet. Factors unique to your home can reduce the square footage the stove will heat.

  • Page 8: Installation

    NSTALLATION NSTALLING YOUR STOVE Choose a place to install your Invicta woodstove. Consider the location of your stove for optimum heating efficiency. In general, it is better to place your NPACKING stove in a main living area, rather than in a basement Energy Distribution packages your Invicta series or other confined space.

  • Page 9: Hearth Requirements & Floor Protection

    EARTH REQUIREMENTS FLOOR PROTECTION Ensure you protect combustible flooring with a covering of non-combustible material. This Invicta series does not require an insulated hearth pad. The minimum floor protection must be met under the stove and extend beyond the stove as follows: The minimum floor protection for US installations is 52 ½...

  • Page 10: Chimney Connector Systems And Clearances From Combustible Walls

    CHIMNEY CONNECTOR SYSTEMS AND CLEARANCES FROM COMBUSTIBLE WALLS ESIDENTIAL EATING PPLIANCES Minimum 3.5in thick brick masonry all framed into combustible wall with a minimum of 12in. brick separation from clay liner to combustibles. The fire clay liner shall run from outer surface of brick wall to, but not beyond, the inner surface of chimney flue liner and shall be firmly cemented in place.

  • Page 11: Outside Air Supply

    The chimney connector cannot pass through a • floor or ceiling, nor any attic or roof space, closet or similar concealed space. Where venting UTSIDE AIR SUPPLY requires passage through a wall or partition of combustible construction, the installation must conform to NFPA Code 211 or CAN/CSA - B365.
  • Page 12 In such cases, a damper can help chimney. Do not connect this stove to a chimney regulate the draft. The Invicta series requires a draft serving another appliance; you will compromise between 0.06" and 0.1" WC. For drafts above 0.1"...
  • Page 13 45 feet (13.5m). This working properly. To avoid a loss of draft, the cleanout Invicta series requires a draft between 0.06” and 0.1” door must close completely and provide a tight seal. If water column. Ensure your chimney is long enough...
  • Page 14 Figure 8 – Chimney Height Requirements Energy Distribution 2015 REVISION JULY 2020...
  • Page 15 Figure 9 – Typical Chimney Configurations Energy Distribution 2015 REVISION JULY 2020...

  • Page 16: Operation

    Always remove and place the cold hand away but close by the stove when not using it. Never let Once your INVICTA is installed, you are ready to light the cold hand hung in position to the stove. Burn a fire.
  • Page 17 Pine, Pitch 2,669 17.1 Wood Heat Value: Sorted By Btu Content Catalpa 2,360 16.4 Common Name Lb/ cord MBTU/ cord Hemlock 2,482 15.9 High Spruce, Black 2,482 15.9 Pine, Ponderosa 2,380 15.2 Osage Orange (Hedge) 4,728 32.9 Hickory, Shagbark 4,327 27.7 Hop Hornbeam (Ironwood) 4,267...

  • Page 18: Building Afire

    BUILDING FIRE • Do not load wood encrusted with ice into a burning stove - the thermal shock can cause Once you understand the controls of your wood stove damage. and have the appropriate firewood, you are ready to • Do not use a manufactured log grate or otherwise start a fire.

  • Page 19: Normal Operation

    NORMAL OPERATION the stove. Symptoms of chronic over-firing can include warped components, short burn times, a roaring sound in the stove or stovepipe, and UILDING VERYDAY discoloration of the stovepipe. A properly installed stove using fuel and following operating procedures 1) Open the front door and place five or six double as outlined in this manual should not over-fire.

  • Page 20: Maintenance

    EMOVAL ISPOSAL SHES AINTENANCE You can leave a thin layer of ashes in the firebox if NSPECTION AND EPLACEMENT ROCEDURES preferred. Allow fire to die down or go out completely. It is important to prevent ashes from building up WARNING : THIS WOOD HEATER NEEDS around the front door opening or they will spill out, or PERIODIC INSPECTION AND REPLACEMENT FOR they can pack into the gasket channel and prevent...

  • Page 21: Glass Replacement Procedures

    11. After 5 or 6 fires, check the glass retainer screws, and retighten if necessary. Use only 4mm x 329mm x 395mm Ceramic, or Neoceram glass. Contact your INVICTA dealer. Energy Distribution 2015 REVISION JULY 2020...

  • Page 22: Creosote Formation & Removal

    As a result, We recommend you only use INVICTA replacement creosote residue accumulates on the flue lining. When gaskets when you need to replace your door ignited, this creosote makes an extremely hot fire, gasket.

  • Page 23: Troubleshooting

    phenomenon of air starvation within the building is ROUBLESHOOTING exacerbated if exhaust fans, such as clothes dryers, bathroom fans or cook stove exhaust fans, are in operation within the home. Outfitting your stove with OMMON SSUES an optional outside air dispenser, which leads to the Virtually all woodstove operators experience basic outside of the building, can correct this problem.

  • Page 24: Troubleshooting Guide

    TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE SOLUTIONS STOVE Operating Technique Slightly crack the door one minute before fully opening doors. SMOKES Cold Chimney or reverse Preheat the chimney when first starting a fire. Briefly open a draft window in the room containing the stove. Blocked Chimney Examine the chimney and stovepipe for blockage or creosote accumulations.

  • Page 25: Safety Label

    SAFETY LABEL Energy Distribution 2015 REVISION JULY 2020...
  • Page 26 Energy Distribution 2015 REVISION JULY 2020...

  • Page 27: Warranty

    WARRANTY Energy Distribution 2015 REVISION JULY 2020...
  • Page 28 Energy Distribution 2015 REVISION JULY 2020...

  • Page 29: Annex - Parts

    ANNEX – PARTS Energy Distribution 2015 REVISION JULY 2020...
  • Page 30 Poêle à bois NELSON référence 6129 44 Repère Désignation Référence Pied F610591B Tube pietement AT610354A Ecrou a embase de 6 AV7220060 Embase F610855B Tirants AS610173A Rondelle de 6 AV4100060 Ecrou de 6 AV7100060 Bride de Registre AT610112A Registre de réglage d’air primaire ED-REO-1002 support de deflecteur AT610219A...
  • Page 31 Energy Distribution 2015 REVISION JULY 2020...
  • Page 32 Poêle à bois AARON référence 6129 04 Repère Désignation Référence Vis à tête hexagonale de 6x30 AV8406300 Façade F610842U Écrou a embase de 6 AV7220060 Embase F610855B Registre de réglage d'air secondaire AT610184A Rondelle de 6 AV4100060 Écrou de 6...
  • Page 33 INVICTA STOVE AND FIREPLACES ARE DESIGNED AND MANUFACTURED BY: INVICTA GROUP SASU 785 520 180 R.C.S. SEDAN Greffe du Tribunal de Commerce de SEDAN Siège social INVICTA GROUP SASU ZI LA GRAVETTE 08350 DONCHERY www.invicta.fr Imported by / Importé par :...
