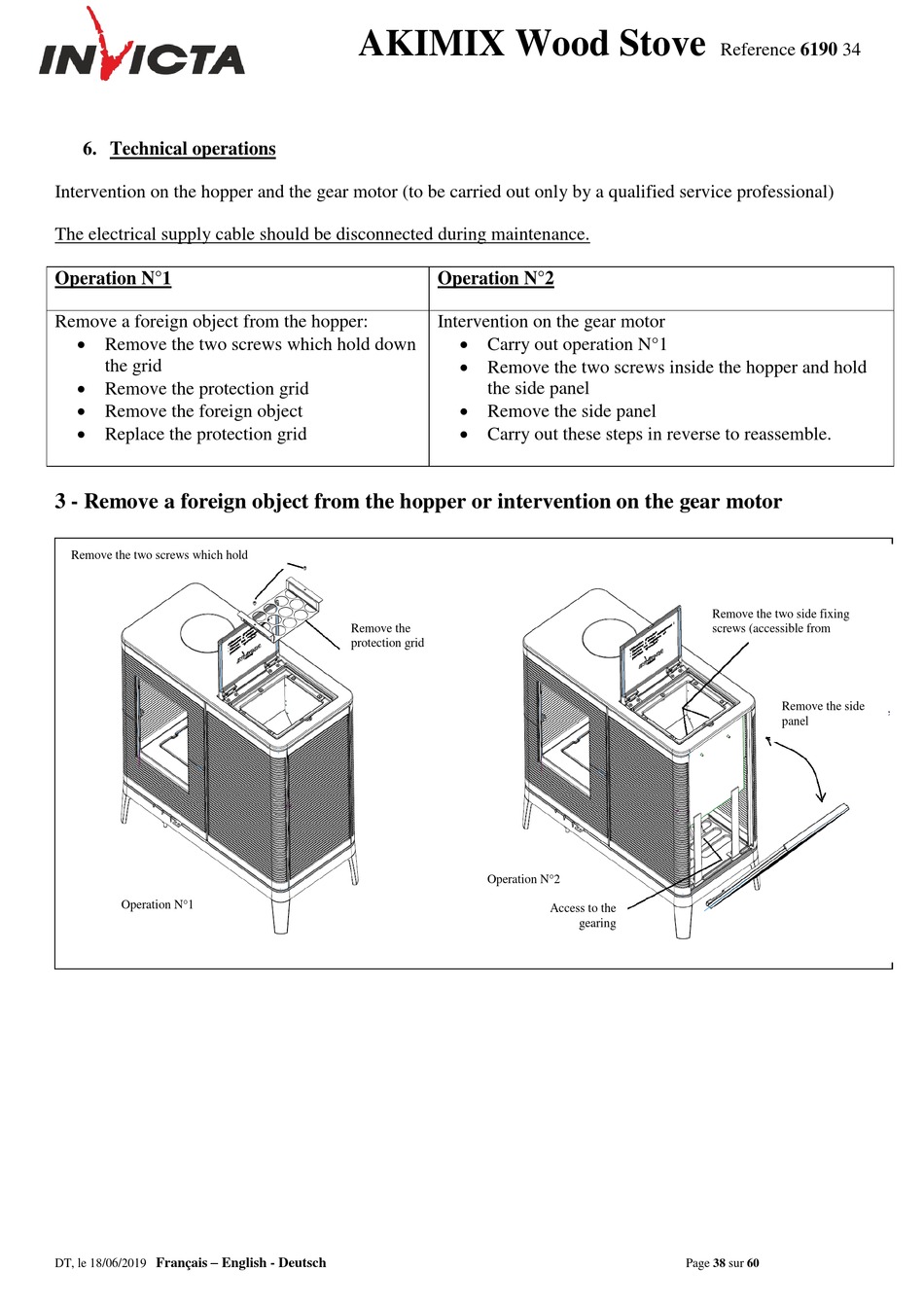

6. Technical operations
Intervention on the hopper and the gear motor (to be carried out only by a qualified service professional)
The electrical supply cable should be disconnected during maintenance.
Operation N°1
Remove a foreign object from the hopper:
 Remove the two screws which hold down
the grid
 Remove the protection grid
 Remove the foreign object
 Replace the protection grid
3 - Remove a foreign object from the hopper or intervention on the gear motor
Remove the two screws which hold
down the grid
Operation N°1
Français – English - Deutsch
DT, le 18/06/2019
AKIMIX Wood Stove
Operation N°2
Intervention on the gear motor
 Carry out operation N°1
 Remove the two screws inside the hopper and hold
the side panel
 Remove the side panel
 Carry out these steps in reverse to reassemble.
Remove the
protection grid
Operation N°2
Reference 6190 34
Remove the two side fixing
screws (accessible from
inside)
Access to the
gearing
Page 38 sur 60
Remove the side
panel
