Section Viii; Data Label Information - ADC AD-170SE Installation Manual

When contacting ADC, certain information is required to ensure proper service/parts information from ADC.
This information is on the data label that is affixed to the left side panel/wall area behind the control door. When
contacting ADC, please have the model number and serial number available.

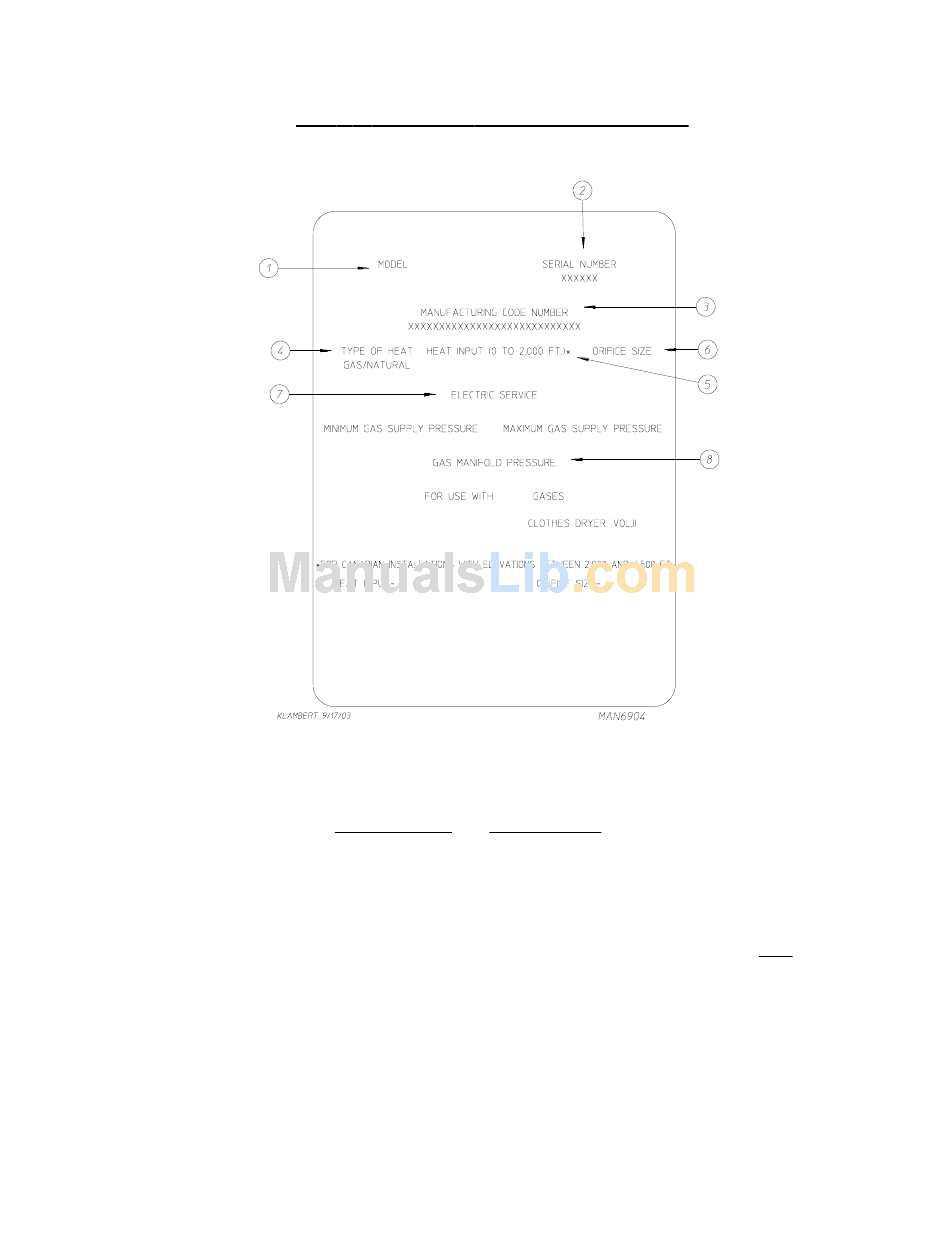

1. MODEL NUMBER – Describes the size of the dryer and the type of heat (gas, electric, or steam).
2. SERIAL NUMBER – Allows the manufacturer to gather information on your particular dryer.
3. MANUFACTURING CODE NUMBER – The number issued by the manufacturer, which describes ALL possible options
on your particular model.
4. TYPE OF HEAT – This describes the type of heat for your particular dryer, gas (either natural gas or liquid propane [L.P.]
gas), electric, or steam.
5. HEAT INPUT (for GAS DRYERS) – This describes the heat input in British thermal units per hour (Btu/hr).
6. ORIFICE SIZE (for GAS DRYERS) – Gives the number drill size used.
7. ELECTRIC SERVICE – This describes the electric service for your particular model.
8. GAS MANIFOLD PRESSURE (for GAS DRYERS) – This describes the manifold pressure taken at the gas valve tap.
