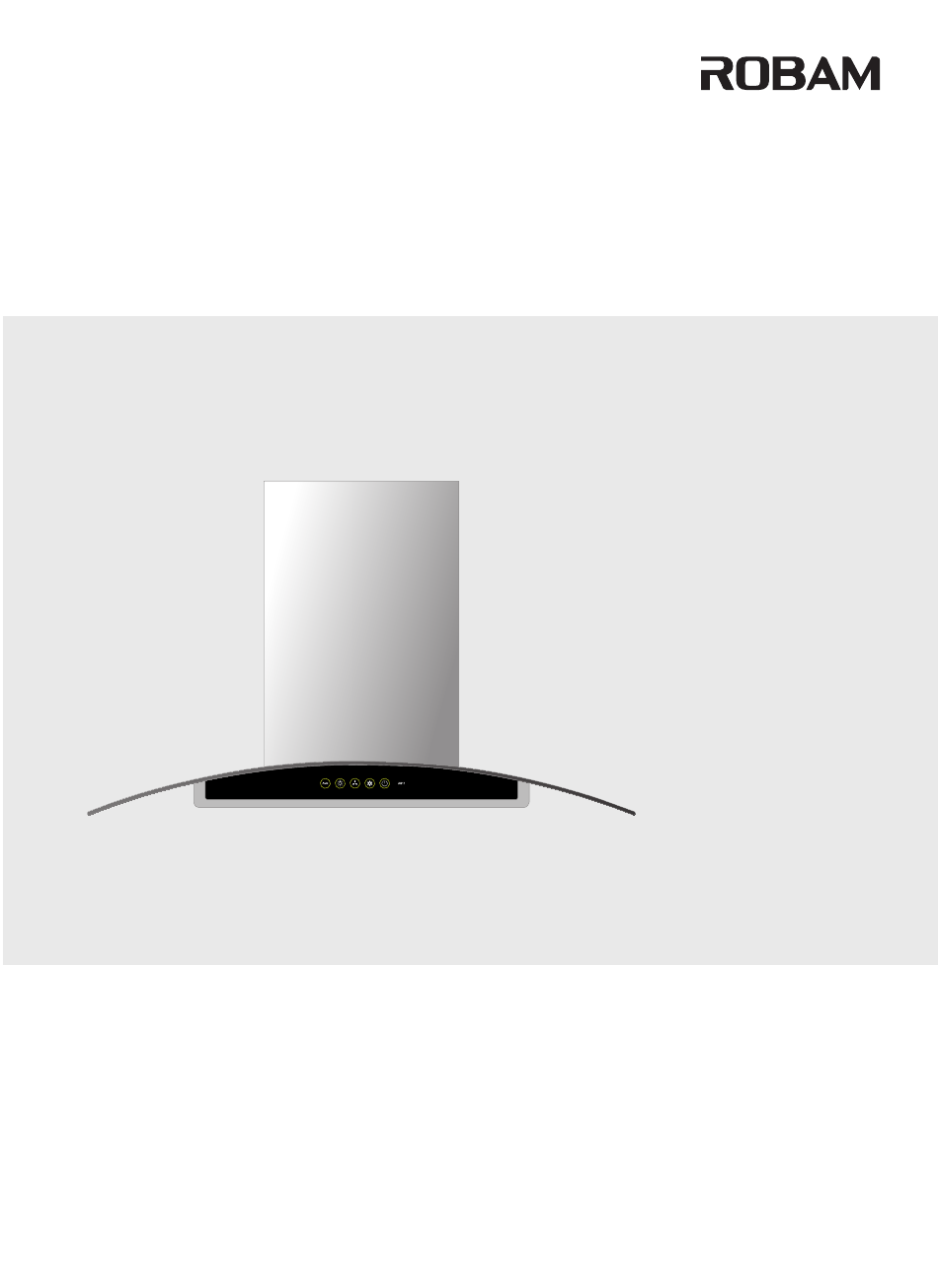

- Page 1 Operation Manual CXW-200-A811 Range Hood...
-
Page 2: Table Of Contents
CONTENTS 1.Important Information......1 2.Product Overview........1 3.Installation.........2 4.Use Instruction........5 5.Maintenance and Services....6 6.Circuit Diagram........9 7.General Troubleshooting......9... -
Page 3: Important Information
If range hood has obvious damage, please don’t electrify and contact operator. Children and disability are not allowed to use range hood independently in order to avoid accident. Product Overview Technical Paramater ≤56.5dB Model CXW-200-A811 Noise Power Supply 204W 220-240V~ 50Hz Rated Whole Machine Input Power Total Pressure Efficiency ≥22%... -
Page 4: Installation
机 烟 油 吸 Range Hood Size & Dimension Picture 2 Note: The size just for reference. Installation Warning 1.The range hood is prohibited from exhausting fume into hot flue , which is used for exhausting gas fuel or other fuel fume. 2 In installing metal expansion tube ensure perfect match of tube diameter with hole diameter to prevent accidental falling off loosened expansion tube due to excessive hole expansion... - Page 5 吸油烟机 Range Hood Installation Precautions Picture 3 Picture 4 Warning：The height from hood bottom to the cooktop should be not less than 650mm.(see installation in details).Don't allow to contact Don't install the range hood too high and keep it fire with range hood directly. Forbid gas stove free from external airflow to prevent reduced the from getting fire to prevent damage of range effect of fume removal...
- Page 6 机 烟 油 吸 Range Hood Installation 1、Location:Reference dimension for mounting of removable baffle is 430(mm),but subject to adjustment according to actual situations. The installation hole(picture 10) shall be centered vertically with the hood body and kept horizontally. Operator shall install range hood upright the gas hob with recommended lowest height between hood bottom and cooktop is 650mm (if maximum installation distance is specified in the instruction of installation, this shall be taken into consideration;...
-
Page 7: Use Instruction
吸油烟机 Range Hood 6. Install aluminum foil’s air duct: 1) Drill hole position for aluminum foil (for public flue, don’t need to drill holes) a. Aluminum foil and cooktop faces to window: disassemble one side glass, and install one plywood with holes, or open holes on the glass directly. -
Page 8: Maintenance And Services
机 烟 油 吸 Range Hood Picture 14 Picture 13 Light Lightly touch "Light" key by finger, its lamp turns When plug is connected well ,buzzer sounds three on and press "Light" key again, its lamp goes out. times and hood enters into waiting condition. (Lighting lamp turns off) Picture 16 Picture 15... - Page 9 吸油烟机 Range Hood Range hood shall be cleaned at regular intervals depending on the environmental conditions to keep clean and good effect ,it's helpful to extend service life. Our suggestion: To ensure smooth fume removal ,oil guide mesh should be cleaned every month .Impeller should be cleaned once every year by professionals.
- Page 10 机 烟 油 吸 Range Hood Dismounting steps Picture 29 1.Pull out power plug; 2.Screw off 4 screws behind the decorative tube and incline the decorative tube forward to certain angle and put it out by force with bands; 3.Take out drawing tube from the decorative tube; 4.Remove the cover plate after screwing off the fastening screws by screwdriver;...
-
Page 11: Circuit Diagram
吸油烟机 Range Hood Warning There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels 。 - Do not flambé under the range hood. - Regulations concerning the discharge of air have to be fulfilled. - This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 12 Edition: A/2...
