Event log and Site Manager

Event log – Event log
8.1
The event registration that logs events in the device,
Status tab. Here, both internal events and events generated by detector functions are shown. An event has
four different fields:
▪
Timestamp - time marking
▪
Type - type of event can be Error, Warning, Info or Debug
▪
Text - description of the event
▪
Extra information - four fields for extra information mainly for internal use
In the example in Figure 11, extra information is used. For the EF Detected event, the first digit tells which
detector has started. In this case, it is Detector 1. The second digit of the EF Detected is the State. Here it is
8 which means that it was the reignition function that detected the fault. Third digit for EF NONDIR
Detected or EF Detected indicates that faulty phase is L2. For overcurrent, there are also options 12, 13, 23
or 123, which show which phases are involved.

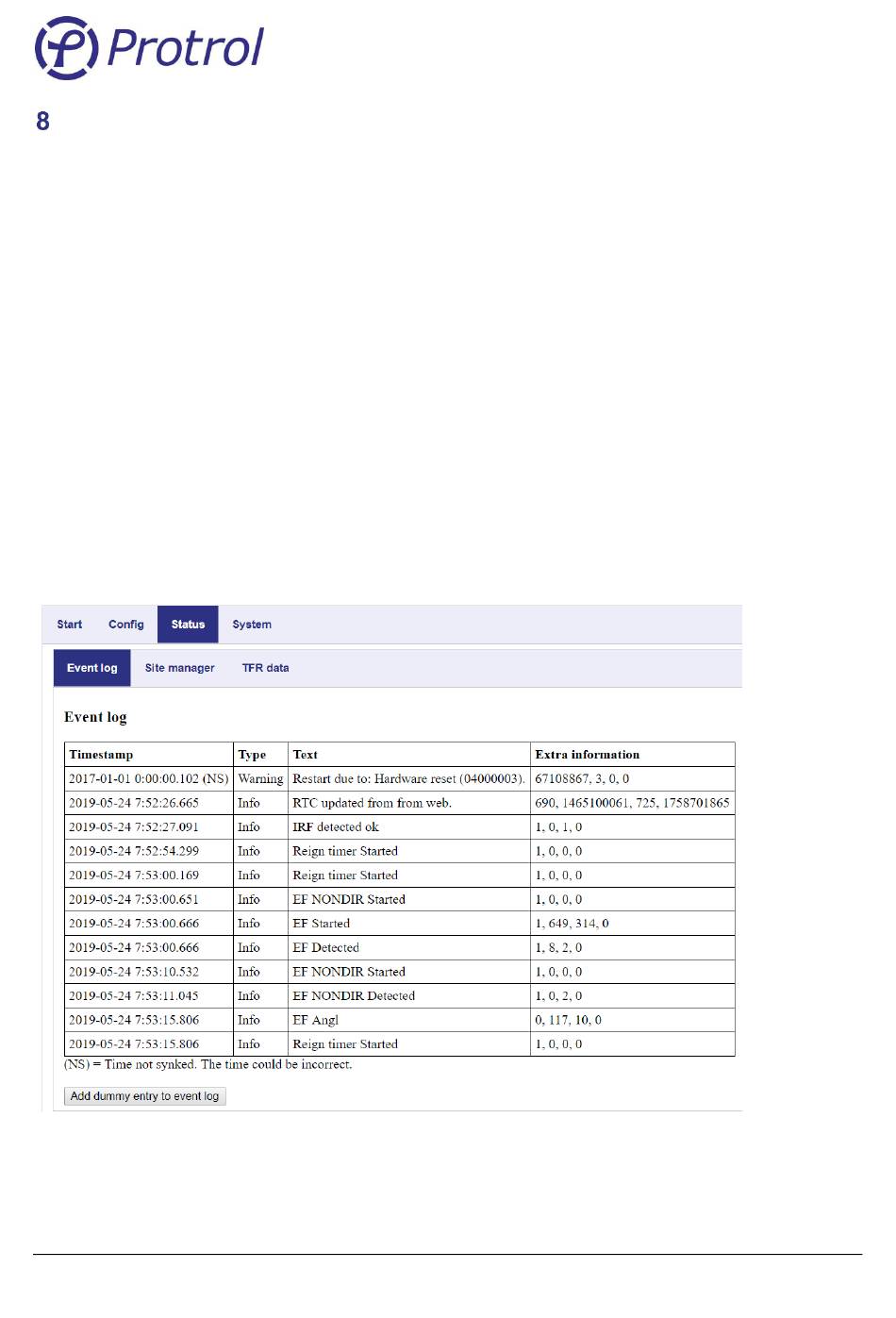

Figure 11. Event log.
At the bottom there is a button to generate a dummy event for test purposes.
