Protrol IPC4020 Manual

Fault detector and rtu
Hide thumbs Also See for IPC4020:
Table of Contents

Advertisement

Quick Links

Download this manual

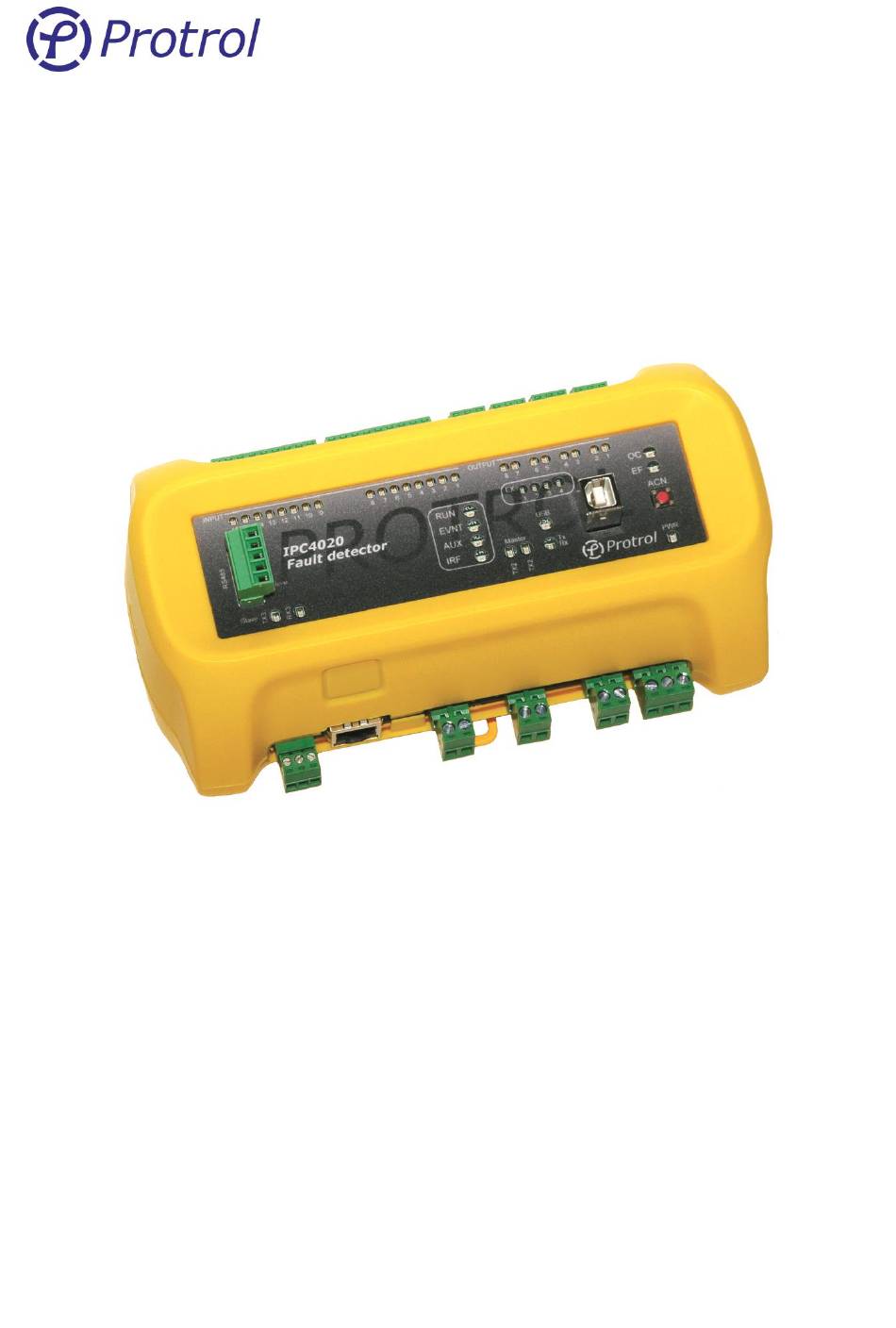

IPC4020/IPC4022
IPC4020 and IPC4022 are fault detectors for over current and earth fault, both with
integrated remote terminal unit functionality.
This user's manual describes the interfaces and management of the devices. This
includes:
▪ Overview
▪ Connection using the service port
▪ Configuration, reset and upgrade
▪ System interface
▪ Detector functions
▪ Event list, Site manager and transient fault recorder
M A N U A L
Fault Detector and RTU

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPC4020 and is the answer not in the manual?

Questions and answers

Related Manuals for Protrol IPC4020

Summary of Contents for Protrol IPC4020

  • Page 1 IPC4020/IPC4022 Fault Detector and RTU IPC4020 and IPC4022 are fault detectors for over current and earth fault, both with integrated remote terminal unit functionality. This user’s manual describes the interfaces and management of the devices. This includes: ▪ Overview ▪ Connection using the service port ▪...

  • Page 2: Table Of Contents

    Analog Inputs (I/O-addressing – Analog Inputs) ______________________________________ 24 Analog Inputs – Internal _______________________________________________________________ 25 Analog Inputs – Detector x _____________________________________________________________ 26 Detector Functions __________________________________________________________ 28 General ______________________________________________________________________ 28 Protrol AB Phone: +46 31 45 82 00 Alfagatan 3 internet: www.protrol.se 431 49 Mölndal, SWEDEN...
  • Page 3 Settings – Detector n ____________________________________________________________ 32 Current Transformer __________________________________________________________________ 32 Overcurrent _________________________________________________________________________ 32 Earth Fault, General __________________________________________________________________ 32 Earth Fault Protrol ____________________________________________________________________ 33 Non-Directional Earth Fault ____________________________________________________________ 33 Phase Break ___________________________________________________________________ 34 Event log and Site Manager ___________________________________________________ 36 Event log – Event log ____________________________________________________________ 36 Site Manager __________________________________________________________________ 37 Transient Fault Recorders –...

  • Page 4: Safety Information

    The device should be connected to protective grounding through contact X4.2. Abbreviations IPC401x Previous generation fault detectors – IPC4010, -11 and -12 IPC402x IPC4020, IPC4020exp or IPC4022 ASDU Application Service Data Unit COMTRADE Common Transient Data Exchange DHCP Dynamic Host Configuration Protocol...

  • Page 5: Overview

    TERM Ethernet Link RJ45 RS485 Act. Figure 1. Overview IPC4020 with expansion for two extra detector functions (to the left). The outputs 1, 2, 5 and 6 are routed to power relays. Binary inputs Binary outputs Option W IPC4022 RS485...

  • Page 6: Front Panel - Hmi

    There are various LED indicators on the front panel for inputs, outputs, communication ports and status purposes. Figure 4. Front panel of IPC4020. Each binary input and output have a LED above its screw terminal and reflects the position of the input/output. Voltage on an input activates the LED. Closed relay output activates the LED.

  • Page 7: Push-Button For Local Acknowledge (Acn)

    There is built-in protection for surge voltages. However, cables for communication that may be subjected to overvoltage must have a primary protection, for example Protrol OVP. As a rule of thumb, one can say that cables that leave the building / station must be supplemented with a primary protection.

  • Page 8: Rs485-Port För Iec 60870-5-101 Master (Option)

    There is built-in protection for surge voltages. However, cables for communication that may be subjected to overvoltage must have a primary protection, for example Protrol OVP. As a rule of thumb, one can say that cables that leave the building / station must be supplemented with a primary protection.

  • Page 9: Ethernet Interface For Iec 60870-5-104 And Service Port

    IPC402x requires an external power supply of 24-48 VDC which is connected to terminal block X4. The connection is not polarity sensitive. The unit must be connected to protective ground via X4.2. Protrol AB Phone: +46 31 45 82 00 Alfagatan 3 internet: www.protrol.se...

  • Page 10: Service Interface

    Service Interface The built-in web server in IPC402x gives authorized access to all settings, status information, file transfer etc., either via Ethernet RJ45 or USB type B. Protrol recommends using Chrome or Firefox web browsers. Connecting using Ethernet The prerequisite for connecting via Ethernet is that the service computer has IP settings that match, i.e., the same subnet and subnet mask, with those of the IPC device that you want to connect to.

  • Page 11: Connecting Using Usb

    Connecting using USB It is also possible to connect using USB type B. to do so, a separate software, Protrol USB Bridge for Windows 7/10, is needed. This is available on Protrol's website. Below is a brief description of how to connect via the program.

  • Page 12: Login

    Ver 1909 Login After connecting to the Protrol device, a login screen is displayed. This includes information about the connected Protrol device and the input field for logging in. Figure 6. The login field of the web server. The following standard users can be selected:...

  • Page 13: Configuration And Settings

    Settings saved on file are loaded using the Open…. button. Reset settings: • IPC402x is delivered either with Protrol's factory defaults or with specific customer settings (delivery defaults) according to agreement between Protrol and the customer. • Reset to factory / customer settings is made on the System tab.
  • Page 14 - It is possible to repent by just keeping the acknowledge button pressed until the device is in normal operation. ▪ The unit now resets the settings and then restarts. Protrol AB Phone: +46 31 45 82 00 Alfagatan 3 internet: www.protrol.se 431 49 Mölndal, SWEDEN...

  • Page 15: Settings - Unit

    UTC offset Adjustment, offset, of time -60..60 IP address primary NTP Primary NTP server 0.0.0.0 IP address secondary NTP Secondary NTP server 0.0.0.0 Protrol AB Phone: +46 31 45 82 00 Alfagatan 3 internet: www.protrol.se 431 49 Mölndal, SWEDEN e-mail: info@protrol.se...

  • Page 16: Remote Control Interface

    This section describes the configuration settings for remote communication; IP addresses, settings for IEC 60870-5-101 and IEC 60870-5-104, and more. Communication – Ethernet The settings for Ethernet are found in the Config/Communication/Ethernet tab: Protrol AB Phone: +46 31 45 82 00 Alfagatan 3 internet: www.protrol.se 431 49 Mölndal, SWEDEN e-mail: info@protrol.se...

  • Page 17: Communication - Iec 60870-5-101/104

    Specifies how long to wait for the Execute 1..3600 command after an object has been Selected. If no Execute command arrives within the set time, the order will be interrupted. Protrol AB Phone: +46 31 45 82 00 Alfagatan 3 internet: www.protrol.se 431 49 Mölndal, SWEDEN...
  • Page 18 4800, 9600 This is for information only and cannot be changed by the user The port is set to 8-E-1, i.e., 8 data bits, even parity and 1 stop bit. Protrol AB Phone: +46 31 45 82 00 Alfagatan 3 internet: www.protrol.se...

  • Page 19: Binary Inputs (I/O-Addressing - Binary Inputs)

    On the tab Input 1-16 all physical and system signals are listed. The Detector x tab contains binary objects for the detector functions. Up to three detectors can be found, the settings are identical. Protrol AB Phone: +46 31 45 82 00 Alfagatan 3 internet: www.protrol.se...

  • Page 20: Binary Inputs - Input 1-16

    Objects connected to physical input 16. Can only have the type single indication. Indication for internal error. Can only have the type single indication. Protrol AB Phone: +46 31 45 82 00 Alfagatan 3 internet: www.protrol.se 431 49 Mölndal, SWEDEN...

  • Page 21: Binary Inputs - Detector X

    Indication for phase break OC Trip Ind Indication mirroring the LED OC Trip. EF Trip Ind Indication mirroring the LED EF Trip. Protrol AB Phone: +46 31 45 82 00 Alfagatan 3 internet: www.protrol.se 431 49 Mölndal, SWEDEN e-mail: info@protrol.se...

  • Page 22: Binary Outputs (I/O-Addressing - Binary Outputs)

    From the factory, all objects are set as single command and the sequence selected / executed. All objects Output n have Pulse time set to 100 ms from factory. Protrol AB Phone: +46 31 45 82 00 Alfagatan 3 internet: www.protrol.se...

  • Page 23: Binary Outputs - Detector X

    Since the items are not used, they are set to Blocked on delivery. Inställningar – Detector x: Parameter Description Factory value address Logical output n Logical object for controlling customized functions. 21x0n Protrol AB Phone: +46 31 45 82 00 Alfagatan 3 internet: www.protrol.se 431 49 Mölndal, SWEDEN e-mail: info@protrol.se...

  • Page 24: Analog Inputs (I/O-Addressing - Analog Inputs)

    Lower octets of the address. Decimal. For a detailed description of what the different types provide regarding format, scaling and how the deadband is defined, see descriptions in the following text. Protrol AB Phone: +46 31 45 82 00 Alfagatan 3 internet: www.protrol.se...

  • Page 25: Analog Inputs - Internal

    Integers corresponding to 0.1 Celsius degrees Scaled [SI*100] Integers corresponding to 0.01 Celsius degrees. Unit temperature Deadband [%] Set as a percentage of 100 degrees Celsius. Protrol AB Phone: +46 31 45 82 00 Alfagatan 3 internet: www.protrol.se 431 49 Mölndal, SWEDEN e-mail: info@protrol.se...

  • Page 26: Analog Inputs - Detector X

    3x08 The following values can be sent: - 0,1,2,3,12,13,23,123 Can only be of the types: - "Float [SI]" or "Scaled [SI * 1]" Protrol AB Phone: +46 31 45 82 00 Alfagatan 3 internet: www.protrol.se 431 49 Mölndal, SWEDEN e-mail: info@protrol.se...
  • Page 27 Avg Current Period Deadband Float [SI] Faulty phase, as floating point. Fault Phase Scaled [SI*1] Faulty phase, as integer. Fault Phase Deadband Not used. Protrol AB Phone: +46 31 45 82 00 Alfagatan 3 internet: www.protrol.se 431 49 Mölndal, SWEDEN e-mail: info@protrol.se...

  • Page 28: Detector Functions

    IPC402x contains the following detector functions: ▪ Overcurrent - detects short circuit or overload ▪ Earth fault Protrol - patented method for sensitive detection of solid and intermittent earth faults ▪ Earth fault non-directional – residual current based detection ▪...

  • Page 29: Evaluation Of Earth Faults

    See the example below showing a solid earth fault and the corresponding state changes during the evaluation process. Earth Fault -0,5 -1,5 State Time delay Figure 8. States during the evaluation of a solid earth fault. Protrol AB Phone: +46 31 45 82 00 Alfagatan 3 internet: www.protrol.se 431 49 Mölndal, SWEDEN e-mail: info@protrol.se...

  • Page 30: Evaluation Of Transient And Arcing Faults

    State Reignition time Figure 9. Earth fault with arcing characteristics – after the second ”START” the detector progresses immediately to state TRIP. Protrol AB Phone: +46 31 45 82 00 Alfagatan 3 internet: www.protrol.se 431 49 Mölndal, SWEDEN e-mail: info@protrol.se...

  • Page 31: Settings - Common

    Specialist Post Trip Blocking Time for blocking of detector functions after 0..1000000 2000 Time fault detection Test qualifier Parameter for test 0..4294967295 Protrol AB Phone: +46 31 45 82 00 Alfagatan 3 internet: www.protrol.se 431 49 Mölndal, SWEDEN e-mail: info@protrol.se...

  • Page 32: Settings - Detector N

    100..10000 Earth Fault, General The IPC402x devices have two types of earth fault detectors; Protrol's patented method and a complementary non-directional earth fault function that can be employed when switching onto faults. The non-directional function can also be used to detect fault connection, that a phase is missing or that one phase is connected with the wrong polarity.

  • Page 33: Earth Fault Protrol

    However, the internal event is always generated. Settings – Earth Fault: Parameter Description Range Factory value Unit Enable Protrol earth fault function activated Yes or No Level Earth fault current level 0.1..100.0 Delay Time delay between START and TRIP 0..10000...

  • Page 34: Phase Break

    Phase breaks do not result in a start signal. Note that if a phase is missing but the two remaining have a phase difference of 120 degrees, there will be no phase break. Such a fault is indicated by a non- directional earth fault. Protrol AB Phone: +46 31 45 82 00 Alfagatan 3 internet: www.protrol.se...
  • Page 35 Time delay between START and TRIP 0..10000 5000 Trip relay TRIP output relay 0..8 0 (non) Relay pulse Pulse length of TRIP output signal 100..10000 Protrol AB Phone: +46 31 45 82 00 Alfagatan 3 internet: www.protrol.se 431 49 Mölndal, SWEDEN e-mail: info@protrol.se...

  • Page 36: Event Log And Site Manager

    123, which show which phases are involved. Figure 11. Event log. At the bottom there is a button to generate a dummy event for test purposes. Protrol AB Phone: +46 31 45 82 00 Alfagatan 3 internet: www.protrol.se 431 49 Mölndal, SWEDEN...

  • Page 37: Site Manager

    Ver 1909 Site Manager Site manager is found in the web interface on the Status tab. Figure 12. Site manager. Protrol AB Phone: +46 31 45 82 00 Alfagatan 3 internet: www.protrol.se 431 49 Mölndal, SWEDEN e-mail: info@protrol.se...
  • Page 38 There is a checkbox that enables activation of the outputs via the web interface. It is checked as long as you are logged in. To activate an output, simply click on the LED symbol. It then lights up and closes the relay output for 2 seconds. Protrol AB Phone: +46 31 45 82 00 Alfagatan 3 internet: www.protrol.se...

  • Page 39: Transient Fault Recorders - Tfr

    When the disturbances are acknowledged, the oldest acknowledged disturbance will be next to be discarded. This means that after an acknowledgment, IPC402x is always ready to register a new disturbance record. Protrol AB Phone: +46 31 45 82 00 Alfagatan 3 internet: www.protrol.se...
  • Page 40 TFR data is saved in the same basic format as for IPC401x. Data can thus be displayed by the same tool, see [3]. For conversion to COMTRADE there is a special tool, available on Protrol’s web page. Also, files from IPC401x can be converted.
  • Page 41 Ver 1909 Figure 15. TFR log file – data at the end of the file. Protrol AB Phone: +46 31 45 82 00 Alfagatan 3 internet: www.protrol.se 431 49 Mölndal, SWEDEN e-mail: info@protrol.se...
  • Page 42 When the file is selected, the configuration file and data file are displayed to the right. Change any input, scaling, labels, etc., if necessary. • Convert by clicking Create COMTRADE files. Protrol AB Phone: +46 31 45 82 00 Alfagatan 3 internet: www.protrol.se 431 49 Mölndal, SWEDEN...

  • Page 43: Upgrade Of Firmware

    Figure 17. System tab for IPC402x. After restart of the device, which will be performed automatically, it is recommended to check the current software version. Protrol AB Phone: +46 31 45 82 00 Alfagatan 3 internet: www.protrol.se 431 49 Mölndal, SWEDEN...

  • Page 44: Checklist For Commissioning And Testing

    If no current injection instrument is available and if the station is in operation with measurable currents, a simple test of the earth fault detector can be performed by short-circuiting a phase briefly on the terminal. Protrol AB Phone: +46 31 45 82 00 Alfagatan 3 internet: www.protrol.se...
  • Page 45 Ver 1909 Current Source Figure 18. Current injection in two opposing phases. Protrol AB Phone: +46 31 45 82 00 Alfagatan 3 internet: www.protrol.se 431 49 Mölndal, SWEDEN e-mail: info@protrol.se...

  • Page 46: References

    Ver 1909 References IPC4020-datablad-xxyy-en.pdf IPC4022-datablad-xxyy-en.pdf IPC4010 12 manual 1609 en.pdf Protrol AB, Alfagatan 3, SE-431 49 Mölndal, SWEDEN Phone: +46 31 45 82 00. E-mail: info@protrol.se www.protrol.se Protrol AB Phone: +46 31 45 82 00 Alfagatan 3 internet: www.protrol.se 431 49 Mölndal, SWEDEN...
