Remote Control Interface

IPC402x includes an integrated RTU (Remote Terminal Unit) function.
All physical binary and analog inputs can be configured to communicate values to a remote control system.
Physical outputs can be set up to be controlled from remote.
Also events from detector functions as well as various objects for activation (e.g. Autoreclosure) and objects
for acknowledgment can be assigned to a remote control system.
IPC402x supports the communication protocols IEC 60870-5-101 and IEC 60870-5-104.
IEC 60870-5-101:
•
Physical interface for IEC 60870-5-101 is RS485 (X11) or RS232 (X12 DSUB9, optional).
•
Both 2 and 4 wire communication is supported for RS485 communication.
•
Terminate RS485 by short-circuiting inputs 4 and 5 on the X11 terminal. Only the last device should
be terminated if there additional IPC402x on the same RS485 loop.
IEC 60870-5-104:
•
Physical interface for IEC 60870-5-104 is RJ45 10/100Base – TX Full Duplex.
For more and detailed information regarding settings for communication, objects etc, refer to the following
chapters.
A general description on how to configure IPC402x is found in Chapter 5.
General Settings – Communication
6.1
This section describes the configuration settings for remote communication; IP addresses, settings for IEC
60870-5-101 and IEC 60870-5-104, and more.
Communication – Ethernet

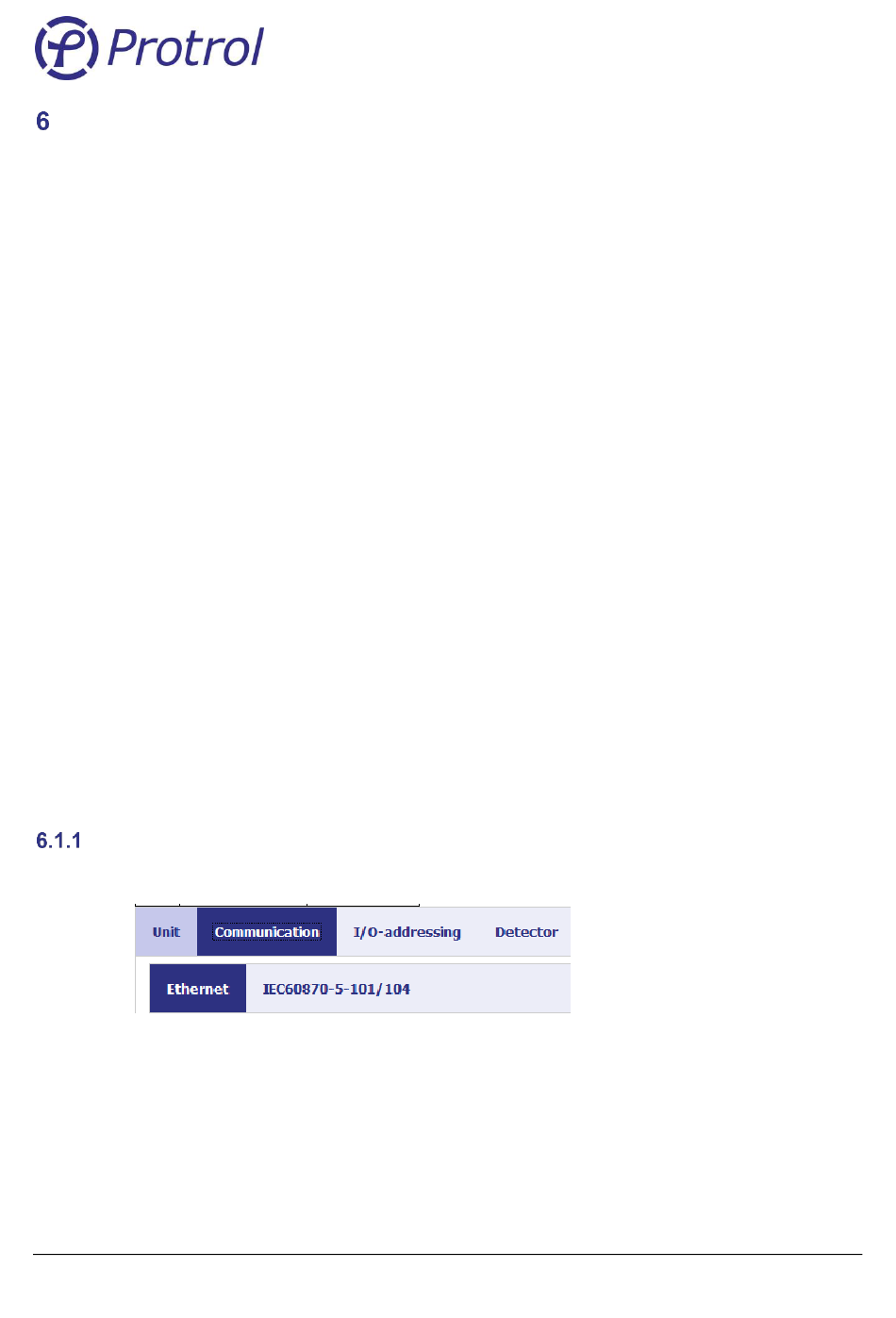

The settings for Ethernet are found in the
Protrol AB
Alfagatan 3
431 49 Mölndal, SWEDEN
Config/Communication/Ethernet
16
tab:
