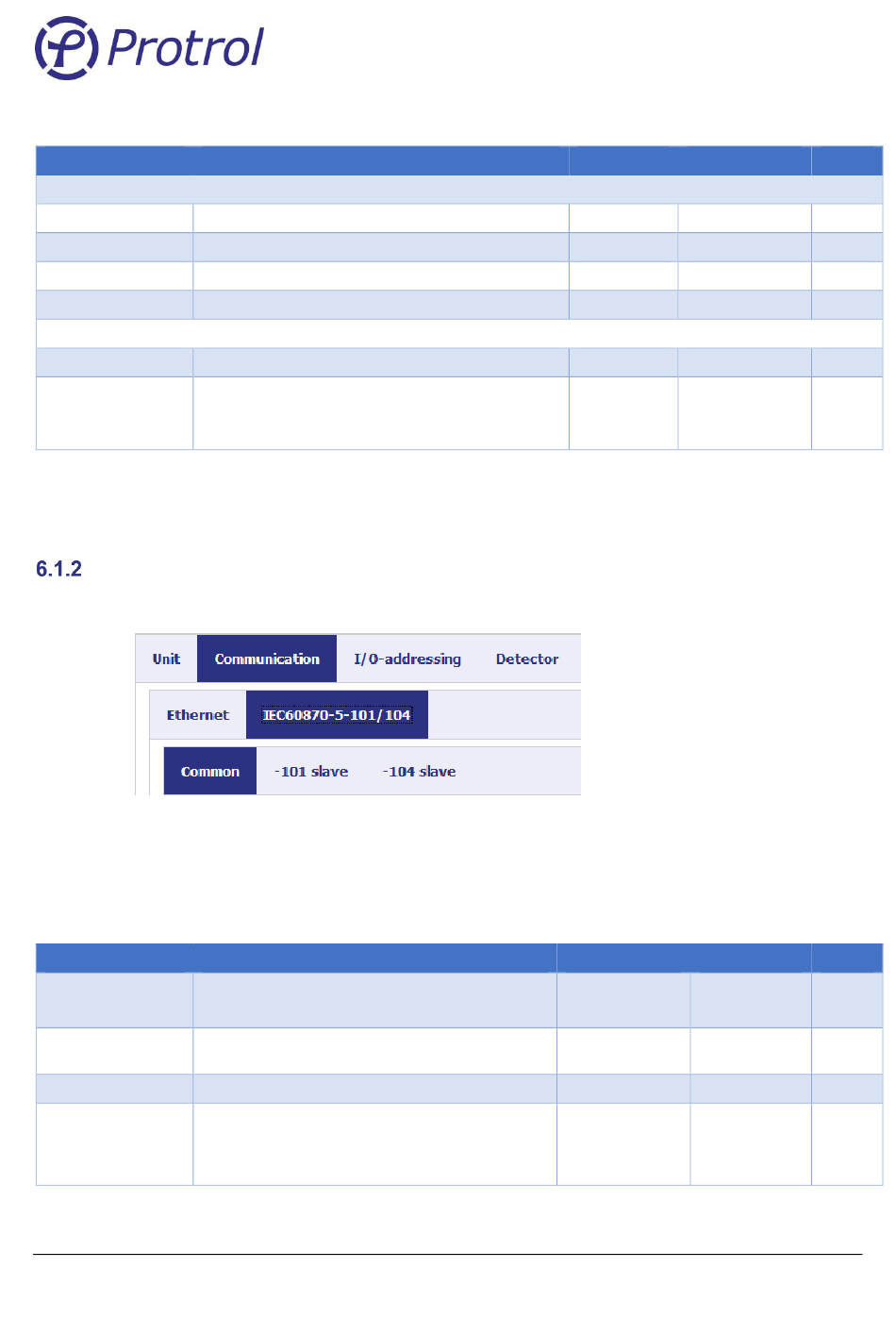

Communication - Iec 60870-5-101/104 - Protrol IPC4020 Manual

Settings - Ethernet:
Parameter Description
Settings for unit:
Enable static IP Fixed or dynamic IP address (via DHCP).
IP address Fixed IP address for the device.
Netmask Netmask
Gateway IP address for network gateway
Trusted IP addresses for IEC 60870-5-104:
IP address n Address for n IEC 60870-5-104 master
Enable n Accept connection from this address.
If no address is specified, connection is accepted
from all addresses.
1) Range according to common notation (4 bytes in decimal form, 0..255).
Observe that the address 0.0.0.0 is not allowed.
Communication – IEC 60870-5-101/104
There are three sub-tabs under the
Each tab and its settings are described in the following chapter.
IEC 60870-5-101/104 – Common
6.1.2.1
Settings – Common:
Parameter Description
Common address Common ASDU address.
(CA) Can have range 1 octet or 2 octets.
Use end of init The device shall send a startup message.
(M_EI)
Interface to use Choice of remote control interface
Select timeout Specifies how long to wait for the Execute
command after an object has been Selected. If no
Execute command arrives within the set time, the
order will be interrupted.
Protrol AB
Alfagatan 3
431 49 Mölndal, SWEDEN
IEC 60870-5-101/104 tab.
17
Range Factory value
Yes or No Yes
1)
192.168.0.31
1)
255.255.255.0
1)
192.168.0.1
1)
192.168.0.10n
Yes or No No
Range Factory value
1..254 1
1..65534
Yes or No Yes
Non, -101, -104 -104
1..3600 30
Phone: +46 31 45 82 00
internet: www.protrol.se
e-mail: info@protrol.se
Ver 1909
Unit
-
-
-
-
-
-
Unit
-
-
-
s
