IEC 60870-5-101/104 – -104 slave
6.1.2.3

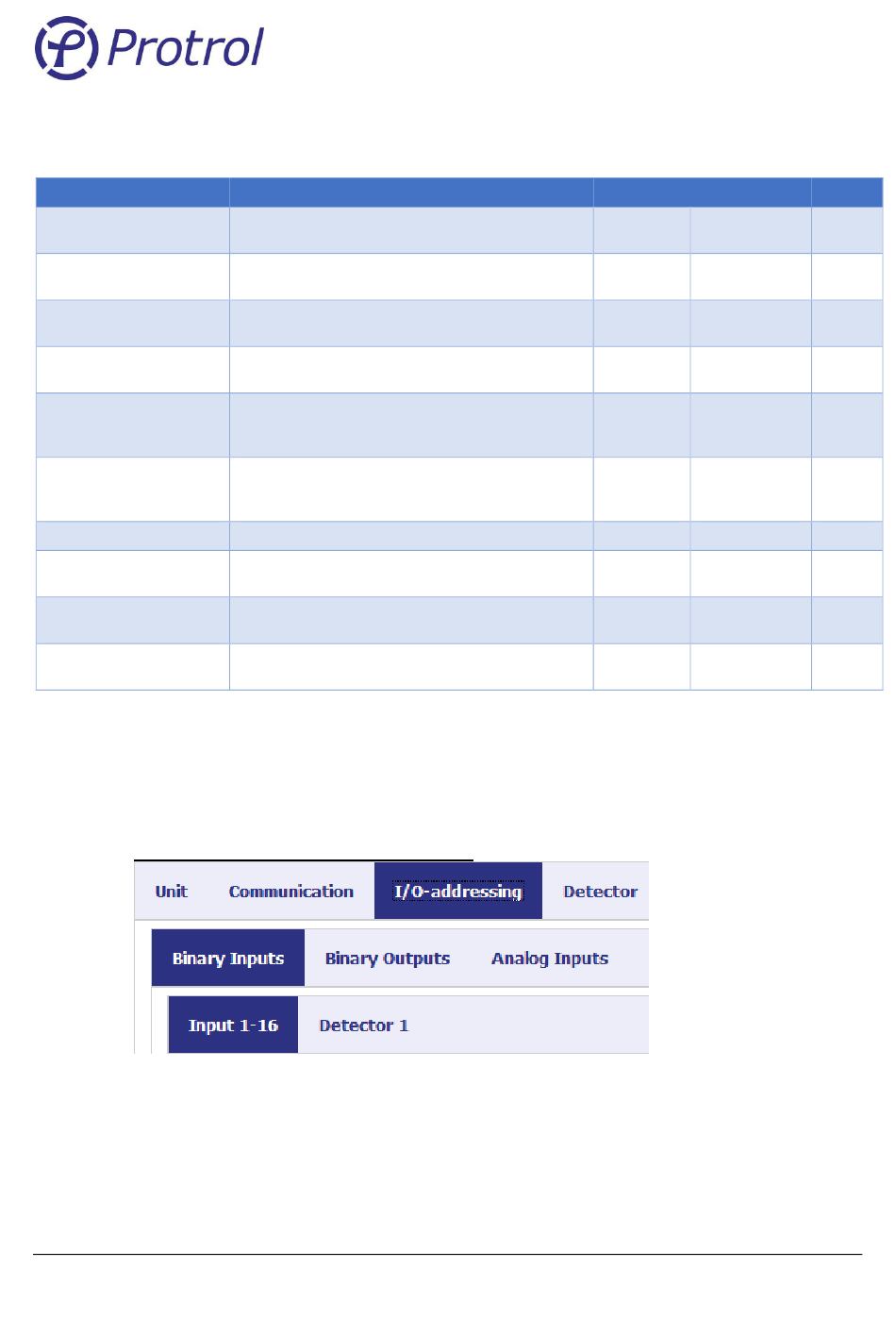

Settings - 104 slave:
Parameter
APDU timeout (t1)
ACKN timeout (t2)
TEST timeout (t3)
k unackn I format
ASDU
w ackn I format ASDU
Command timetag
timeout
Time tag type
Common address
(CA) size
Object address
(OA) size
Cause of transmission
(COT) size
1) Detta är endast för information och kan inte ändras av användaren.
Binary inputs (I/O-addressing – Binary Inputs)
6.2
Communication settings for all binary inputs are found under
On the tab Input 1-16 all physical and system signals are listed.
The Detector x tab contains binary objects for the detector functions. Up to three detectors can be found,
the settings are identical.
Protrol AB
Alfagatan 3
431 49 Mölndal, SWEDEN
Description
Time limit for sent unconfirmed message.
If the time has expired, communication is closed.
Deadline for received unconfirmed messages.
Confirmation (ackn) is sent no later than this time.
Test message timeout. Test message is sent no
later than this time.
Maximum number of unconfirmed messages (I
format). If exceeded, communication is closed.
Maximum number of unconfirmed received
messages (I format). Confirmation (ackn) will be
sent no later than this number.
Maximum difference between local time in the unit
and time marking on an order. If the telegram
does not arrive in time, the order is not allowed.
Specifies the type of time format IPC402x uses.
Size of the RTU address, number of octets.
Size of the object address, number of octets.
Size of "COT", number of octets.
19
Range
1..3600
1..3600
1..3600
1..255
1..255
1..3600
1)
-
1)
-
1)
-
1)
-
Config – I/O-addressing – Binary Inputs.
Ver 1909
Factory value Unit
15 s
10 s
30 s
12 -
8 -
30 s
CP56 -
2 Octet
3 Octet
2 Octet
