3.7 Sensor and Lamp

3.7.1 Smoke Sensor

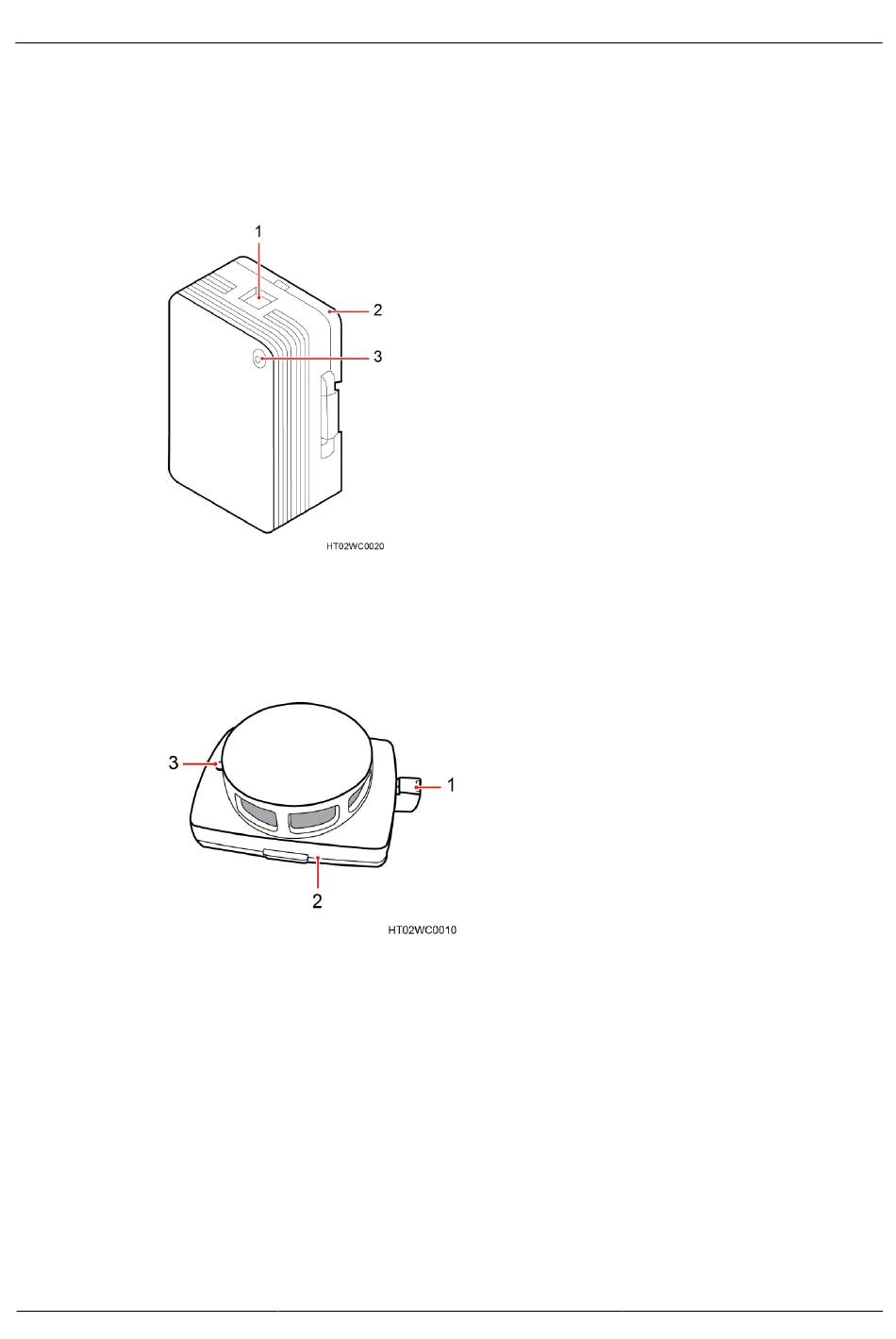

Figure 3-11 Smoke sensor 1
(1) Wiring port
Figure 3-12 Smoke sensor 2
(1) Wiring port
Issue 04 (2019-12-20) Copyright © Huawei Technologies Co., Ltd.
(2) Base
(2) Base
3 Components
(3) Indicator
(3) Indicator
