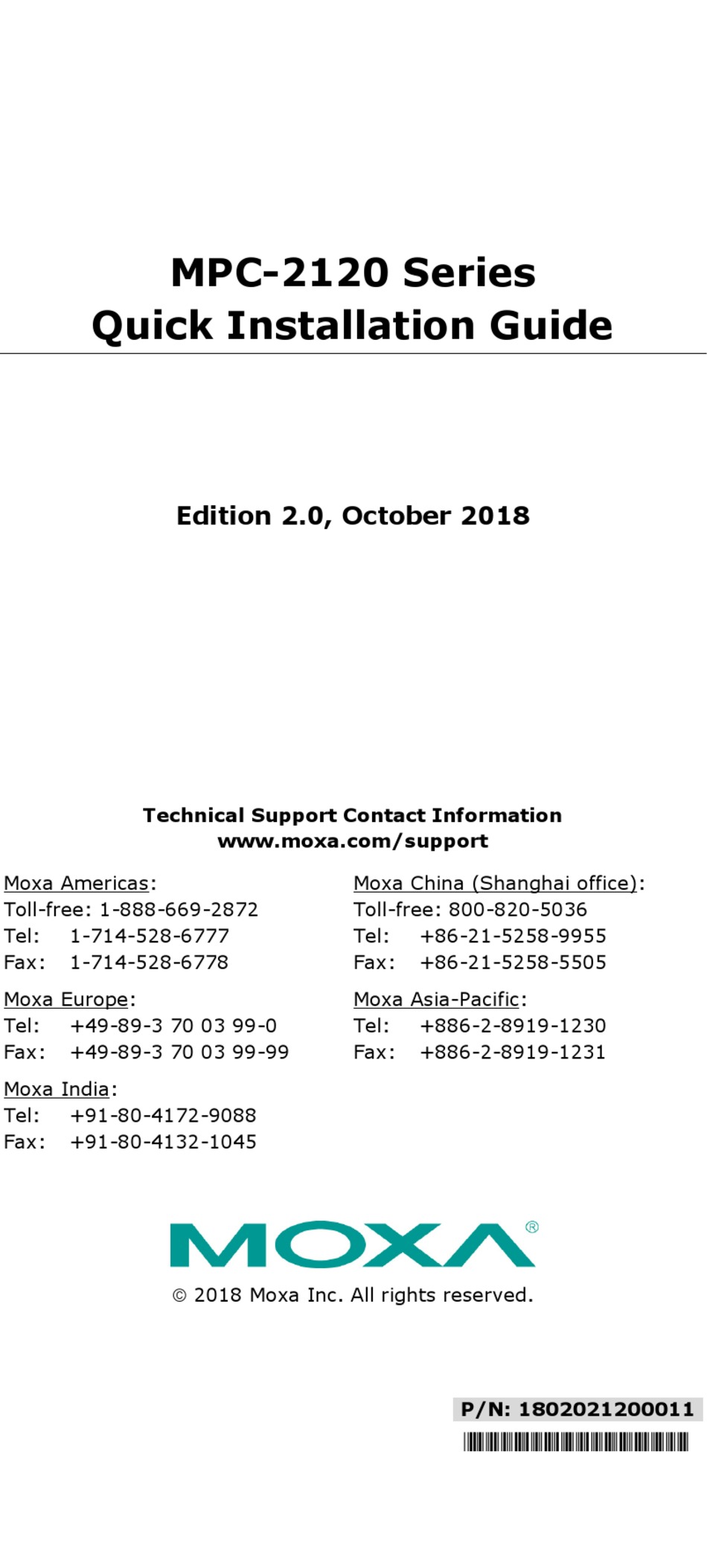

- Page 1 MPC-2120 Series Quick Installation Guide Edition 2.0, October 2018 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0...
-
Page 2: Package Checklist

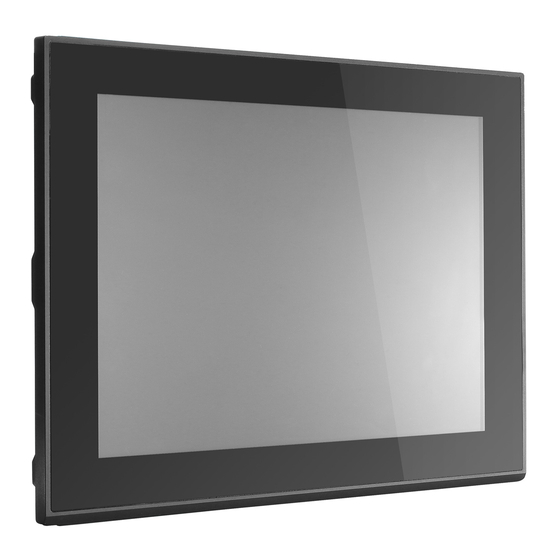

Overview The MPC-2120 12-inch panel computers with Intel® Atom™ E3800 Series processors deliver a reliable and durable platform of wide versatility for use in industrial environments. With two software selectable RS-232/422/485 serial ports and two gigabit Ethernet LAN ports, the MPC-2120 panel computers support a wide variety of serial interfaces as well as high-speed IT communications, all with native network redundancy. - Page 3 Panel Mounting A panel-mounting kit consisting of 8 mounting units is provided in the MPC-2120 package. For details on the dimensions and the cabinet space required to panel mount the MPC-2120, refer to the following illustration: To install the panel-mounting kit on the MPC-2120, place the mounting units in the holes provided on the rear panel and push the units to the left as shown in the illustration below: - 3 -...
- Page 4 Use a torque of 4Kgf-cm to secure the mounting screws to fasten the panel-mounting kit onto the wall. VESA Mounting The MPC-2120 is provided with VESA-mounting holes on the back panel, which you can use directly without the need for an adapter. The dimension of the VESA mounting area is 50 mm x 75 mm.
- Page 5 Display-Control Buttons The MPC-2120 is provided with two display-control buttons on the right panel. The display-control buttons can be used as described in the following table: Symbol and Name Usage Function • Power on • Enter Sleep or Hibernation mode •...
-
Page 6: Connector Description
Connector Description DC Power Input The MPC-2120 uses a DC power input. To connect the power source to the 2-pin terminal block, use a 60 W power adapter. The terminal-block connector for the power input is available in the accessories package. The DC pin assignments are as shown in the figure. - Page 7 DIO Port The MPC-2120 is provided with a DIO port, which is a 10-pin terminal block that includes 4 DIs and 4 DOs as illustrated in the following diagram. Installing a CFast or SD Card MPC-2120 provides two storage options—CFast and SD card. The storage slots are located on the left panel.
- Page 8 2. Insert the CFast or SD card into the slot using the push-push mechanism. 3. Reattach the cover and secure it with screws. Real-Time Clock The real-time clock (RTC) is powered by a lithium battery. We strongly recommend that you do not replace the lithium battery without help from a qualified Moxa support engineer.
- Page 9 II – CPU type E2: Intel® Atom™ Processor E3826 1.46 GHz E4: Intel® Atom™ Processor E3845 1.91 GHz (MPC-2120 series only) III – Marketing purpose 0 to 9, A to Z, dash, blank, (,), or any character for marketing purpose.
- Page 10 IECEx Certificate no.: IECEx UL 18.0064X Address of FI.4, No.135, Lane 235, Baoqiao Rd. Xindian manufacturer: Dist., New Taipei City, Taiwan Condition of Use • Subject devices are intended for use in an area of not more than pollution degree 2 in accordance with IEC/EN 60664-1. •...
