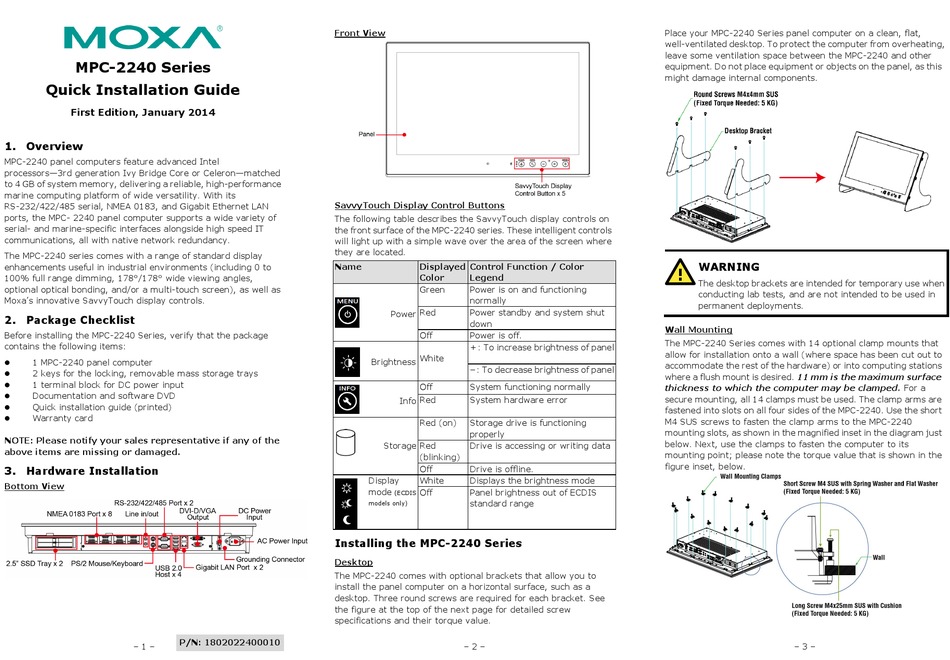

Moxa Technologies MPC-2240 Series Quick Installation Manual

MPC-2240 Series

Quick Installation Guide

First Edition, January 2014
1. Overview
MPC-2240 panel computers feature advanced Intel
processors—3rd generation Ivy Bridge Core or Celeron—matched
to 4 GB of system memory, delivering a reliable, high-performance
marine computing platform of wide versatility. With its
RS-232/422/485 serial, NMEA 0183, and Gigabit Ethernet LAN
ports, the MPC- 2240 panel computer supports a wide variety of
serial- and marine-specific interfaces alongside high speed IT
communications, all with native network redundancy.
The MPC-2240 series comes with a range of standard display
enhancements useful in industrial environments (including 0 to
100% full range dimming, 178°/178° wide viewing angles,
optional optical bonding, and/or a multi-touch screen), as well as
Moxa's innovative SavvyTouch display controls.

2. Package Checklist

Before installing the MPC-2240 Series, verify that the package
contains the following items:
1 MPC-2240 panel computer

2 keys for the locking, removable mass storage trays

1 terminal block for DC power input

Documentation and software DVD

Quick installation guide (printed)

Warranty card

NOTE: Please notify your sales representative if any of the
above items are missing or damaged.

3. Hardware Installation

Bottom View
P/N: 1802022400010
– 1 –
Front View
SavvyTouch Display Control Buttons
The following table describes the SavvyTouch display controls on
the front surface of the MPC-2240 series. These intelligent controls
will light up with a simple wave over the area of the screen where
they are located.
Name Displayed Control Function / Color
Color Legend
Green Power is on and functioning
normally
Red Power standby and system shut
Power
down
Off Power is off.
+: To increase brightness of panel
Brightness White
–: To decrease brightness of panel
Off System functioning normally
Red System hardware error
Info
Red (on) Storage drive is functioning
properly
Storage Red Drive is accessing or writing data
(blinking)
Off Drive is offline.
Display White Displays the brightness mode
mode Off Panel brightness out of ECDIS
(ECDIS
models only) standard range
Installing the MPC-2240 Series
Desktop
The MPC-2240 comes with optional brackets that allow you to
install the panel computer on a horizontal surface, such as a
desktop. Three round screws are required for each bracket. See
the figure at the top of the next page for detailed screw
specifications and their torque value.
– 2 –
Place your MPC-2240 Series panel computer on a clean, flat,
well-ventilated desktop. To protect the computer from overheating,
leave some ventilation space between the MPC-2240 and other
equipment. Do not place equipment or objects on the panel, as this
might damage internal components.
WARNING
The desktop brackets are intended for temporary use when
conducting lab tests, and are not intended to be used in
permanent deployments.
Wall Mounting
The MPC-2240 Series comes with 14 optional clamp mounts that
allow for installation onto a wall (where space has been cut out to
accommodate the rest of the hardware) or into computing stations
where a flush mount is desired. 11 mm is the maximum surface
thickness to which the computer may be clamped. For a
secure mounting, all 14 clamps must be used. The clamp arms are
fastened into slots on all four sides of the MPC-2240. Use the short
M4 SUS screws to fasten the clamp arms to the MPC-2240
mounting slots, as shown in the magnified inset in the diagram just
below. Next, use the clamps to fasten the computer to its
mounting point; please note the torque value that is shown in the
figure inset, below.
– 3 –
