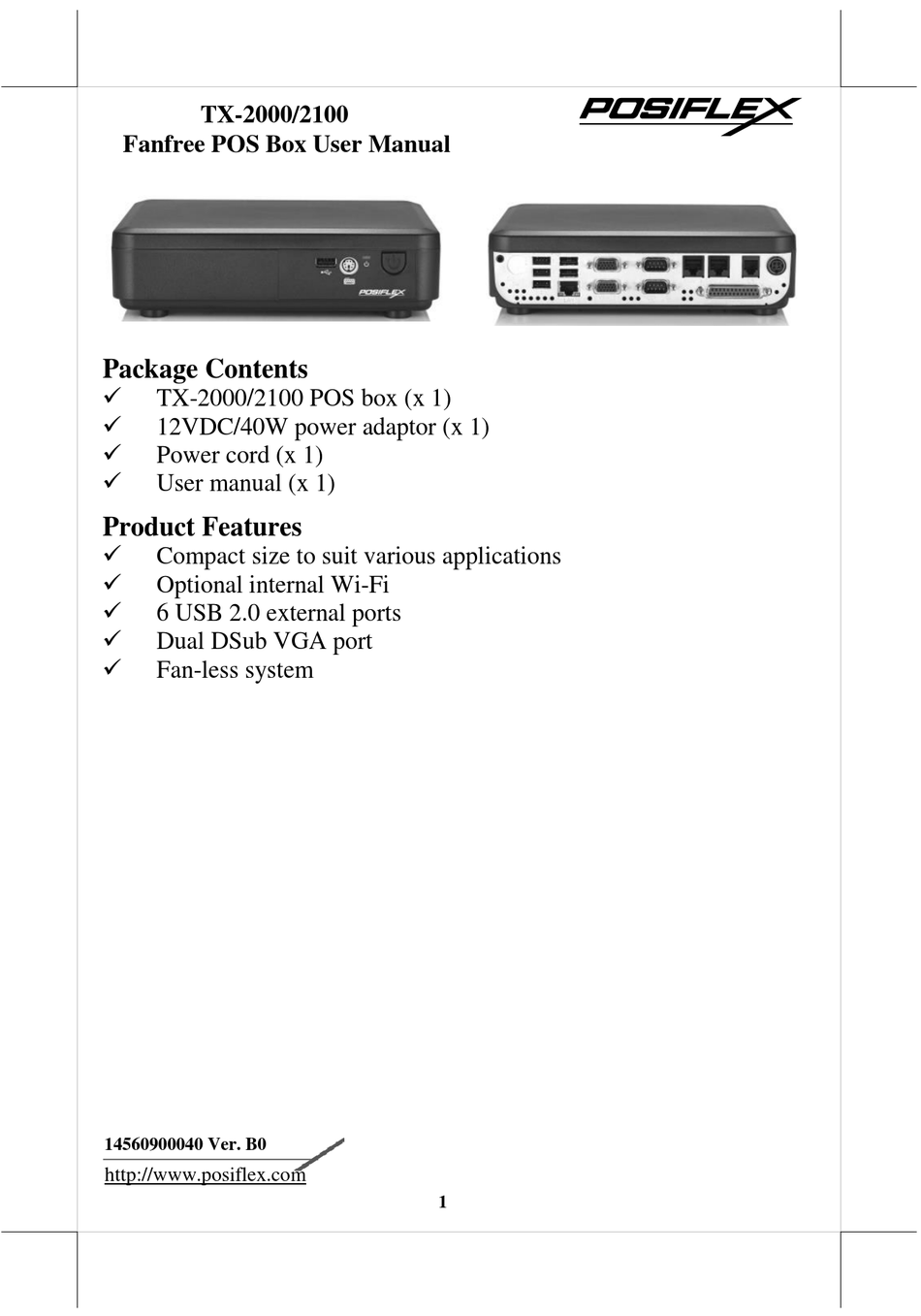

TX-2000/2100
Fanfree POS Box User Manual
Package Contents
TX-2000/2100 POS box (x 1)
12VDC/40W power adaptor (x 1)
Power cord (x 1)
User manual (x 1)
Product Features
Compact size to suit various applications
Optional internal Wi-Fi
6 USB 2.0 external ports
Dual DSub VGA port
Fan-less system
14560900040 Ver. B0
http://www.posiflex.com
1
Advertisement
Table of Contents
Related Manuals for POSIFLEX TX-2000
Summary of Contents for POSIFLEX TX-2000
- Page 1 TX-2000/2100 Fanfree POS Box User Manual Package Contents TX-2000/2100 POS box (x 1) 12VDC/40W power adaptor (x 1) Power cord (x 1) User manual (x 1) Product Features Compact size to suit various applications ...

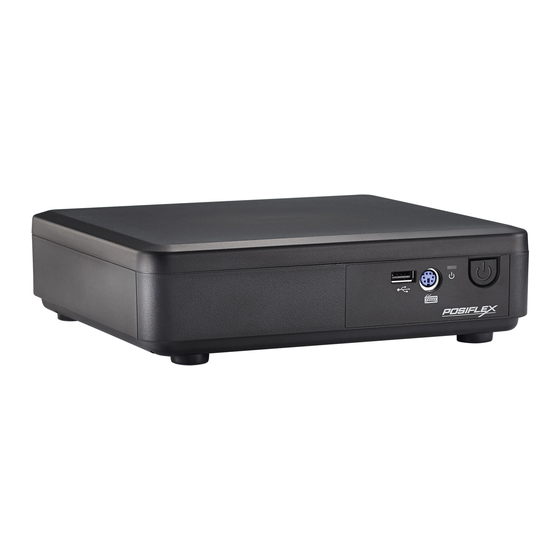

- Page 2 Views of the TX-2000/2100 Power Status LED Indicator Front View Power Button USB 2.0 Port PS2 Port for Keyboard Rear View I/O Interface Bottom View Rubber Pad Rubber Pad DRAM Cover...
- Page 3 View of Rear I/O Interface of TX-2000/2100 Line out USB 2.0 port RJ45 LAN port Dual DSub VGA port COM (DB9) port COM (RJ50) port (COM 1 / COM 2) (COM 3 / COM 4) LPT Port 12VDC-IN power jack...
- Page 4 Note: The COM ports of TX-2000/2100 do not supply power by default. To make the COM ports supply 5VDC or 12VDC power, you can set up the COM ports through jumper setting.
- Page 5 To avoid users from damaging the main board of the system, it is highly recommended that the memory expansion and replacement are implemented by professional technicians. Mounting the TX-2000/2100 on the Wall (Optional) 1. Fix the wall mount bracket onto the wall by using attached plastic anchors and screws.
- Page 6 Power Status LED Indicator There is a power status LED indicators on the front side of the TX- 2000/2100. After powering ON the TX-2000/2100, you can read the system operation status from the power status LED indicator. The power LED status is described below.
- Page 7 Operating System Recovery For the TX-2000/2100 main system preloaded with an operating system on HDD or SSD, Posiflex provides a recovery DVD shipped with the main system for the preloaded operating system. The system integrator shall take care of software restoration after the OS is recovered.
-
Page 8: Specifications
0°C - 40°C, 20%RH - 90%RH (Equipped with HDD) Environmental Requirements Storage : -20°C - 70°C, 10%RH - 90%RH ※ The product information and specifications are subject to change without prior notice. To get the detailed information on TX-2000/2100, please check this model from Posiflex Global Website (http://www.posiflex.com/en-global/Download/download).
