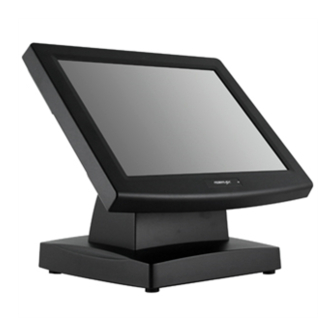

POSIFLEX TM-8115E User Manual

Standalone pos monitor
Hide thumbs

Advertisement

Table of Contents

TM/LM-8115E
Standalone POS Monitor
User Manual
Product Features
15" TFT LCD panel
LCD resolution up to 1024 x 768
5-wire Resistive touch panel (for TM-8115E)
Easy tilt angle adjustment from 18˚ to 75˚
2 x USB port support
Optional side attachment support (SD-466Z or KP-300W)
Optional VESA mounting kit (WB-6000V-B)
Dimension : 345 mm (H) x 377.7 mm (W) x 254 mm (D);
Weight : 5.69 kg
Color : Black
19632900010 Ver. Original
http://www.posiflex.com
Package Contents
15" TM/LM-8115E
Standalone Monitor...................(x 1)
VGA Cable.............................(x 1)
USB type A to B cable.................(x 1)
(For TM series monitors Only)
Power Cord.............................(x 1)
12V/40W Power Adapter.............(x 1)
User Manual...........................(x 1)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TM-8115E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for POSIFLEX TM-8115E

Summary of Contents for POSIFLEX TM-8115E

  • Page 1 Product Features  15” TFT LCD panel  LCD resolution up to 1024 x 768  5-wire Resistive touch panel (for TM-8115E)  Easy tilt angle adjustment from 18˚ to 75˚  2 x USB port support  Optional side attachment support (SD-466Z or KP-300W) ...
  • Page 2 Views of the TM/LM-8115E Front View 15” LM-8115E LCD Panel 15” TM-8115E Resistive Touch Panel LED Indicator Gen 5 Base Rear View Release Button Side Mount Cover Cable Cover Cable Exit...
  • Page 3 Bottom View Rubber Feet with Fixing Screw Cable Holder Cable Groove Cable Passage Rubber Feet with Fixing Screw Left-Side View Tilt Adjustment Lever Right-Side View OSD Control Button OSD button EXT button ＋ button － button Power button...
  • Page 4 I/O Ports USB (Type B) Port VGA Port USB (Type A) DC-IN Power Jack Port Positioning your monitor for a Perfect Viewing Angle Follow the below steps to adjust the viewing angle for TM/LM-8115E with Gen5 base stand using the tilt adjustment lever. After pushing down the tilt adjustment lever on the right side of the stand, tilt the screen up or back to your desired angle.
  • Page 5 Connecting VGA and USB Cables Gen5 base features its own cable management to help you well organize the cords. The following will provide some useful cable-routing instructions for you to connect VGA and USB cables to TM/LM-8115E. To release LCD panel from Gen5 base, support your monitor with one hand holding to the bottom of the panel and then push it up while pressing down the release button located on the back of TM/LM-8115E.
  • Page 6 Lift your monitor to aim four screw bolts on the rear of the monitor to the four screw holes on the Gen5 base. Then, along the rail slots push down the monitor until the LCD panel is well locked into place with a click sound.
  • Page 7 For TM-8115E Model with Resistive Touchscreen For TM-8115E users, please follow the below instructions to complete installation of The Dual Touch Manager, a tool designed to allow your monitor to work as a secondary touchscreen monitor in extended mode.
  • Page 8 Click on the Download tab, and then Drivers & Utility. Click Setup icon of USB Dual Touch Manager to install the USB Dual Touch Manager. Follow the instructions to complete the manager installation. After the installation is finished, restart your terminal. Powering ON/OFF your Monitor To start up TM/LM-8115E, you have to make sure that the monitor is well connected to POS terminals and electricity is supplied to the monitor either...

  • Page 9: Power Led Indicator

    In general, Posiflex terminals will disable the VGA controller in BIOS due to safety concerns. In the case of using your Posiflex terminal to supply power to monitors, it is required to manually enable the VGA power of the terminals in BIOS settings so that the monitor is able to extract power from the Posiflex terminals.

  • Page 10: Using The Osd Menu

    Setting up Display Resolution for Your Monitor The below chart defines the list of recommended display settings for TM/LM-8115E. Improper display configuration will prevent the monitor from properly displaying the image and lead to a warning message of “out of range” prompted on the screen.
  • Page 11 Icon Description While OSD menu is activated:  to select the specific menu option OSD button While OSD menu is deactivated:  to activate the OSD menu While OSD menu is activated:  to exit from the current configuration EXT button While OSD menu is activated: ...

  • Page 12: Auto Adjustment

    OSD Options Please refer to the following table for further explanation of the accessible items. OSD Menu Options Sub-menu items & Description  Backlight Picture Press the “＋” button to increase backlight intensity; Press the “－” button to decrease backlight intensity.
  • Page 13 OSD Menu Options Sub-menu items & Description  Reset Other Restore the current menu back to the default setting.  Menu Time Specify the length of time for OSD menu to stay active on the screen.  Language Specify the language used in the OSD menu. Display information regarding display resolution, Information horizontal/vertical sync frequency, pixel clock...

  • Page 14: Specifications

    300 x 372 x 258 (W x D x H in mm) Weight 4.71 (N.W. in kg) ※ The product information and specifications are subject to change without prior notice. To get the detailed information on TM/LM-8115E, please check this model from Posiflex Global Website (http://www.posiflex.com/en-global/Download/download).
  • Page 15 <MEMO>...
  • Page 16 <MEMO>...
