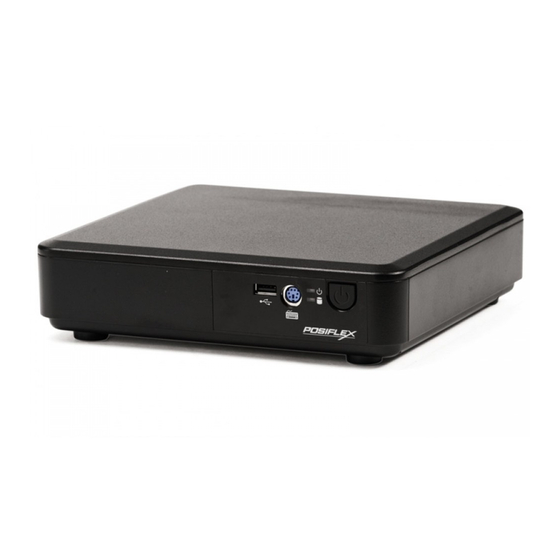

Fan free terminal
Hide thumbs Also See for TX-4200:

Advertisement

TX-4200/4200E/4200R
Fan Free Terminal
User's Manual
Rev.: A0
FCC Notes:
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions manual, may cause interference to radio communications.
It has been tested and found to comply with limits for a Class A digital device pursuant to subpart
B of Part 15 of FCC Rules, which are designed to provide reasonable protection against
interference when operated in a commercial environment. Operation of this equipment in a
residential area is likely to cause interference in which case the user at his owns expense will be
required to take whatever measures to correct the interference.
Warranty Limits:
Warranty terminates automatically when any person other than the authorized technicians opens
the machine. The user should consult his/her dealer for the problem happened. Warranty voids if
the user does not follow the instructions in application of this merchandise. The manufacturer is by
no means responsible for any damage or hazard caused by improper application.
About This Manual:
Posiflex has made every effort for the accuracy of the content in this manual. However, Posiflex
Technology, Inc. will assume no liability for any technical inaccuracies or editorial or other errors
or omissions contained herein, nor for direct, indirect, incidental, consequential or otherwise
damages, including without limitation loss of data or profits, resulting from the furnishing,
performance, or use of this material.
This information is provided "as is" and Posiflex Technology, Inc. expressly disclaims any
warranties, expressed, implied or statutory, including without limitation implied warranties of
merchantability or fitness for particular purpose, good title and against infringement.
The information in this manual contains only essential hardware concerns for general user and is
subject to change without notice. Posiflex Technology, Inc. reserves the right to alter product
designs, layouts or drivers without notification. The system integrator shall provide applicative
notices and arrangement for special options utilizing this product. The user may find the most up
to date information of the hardware from: http://www.posiflex.com or http://www.posiflex.com.tw
or http://www.posiflexusa.com
All data should be backed-up prior to the installation of any drive unit or storage peripheral.
Posiflex will not be responsible for any loss of data resulting from the use, disuse or misuse of this
or any other Posiflex product.
All rights are strictly reserved. No part of this documentation may be reproduced, stored in a
retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying,
or otherwise, without prior express written consent from Posiflex Technology, Inc. the publisher of
this documentation.
© Copyright Posiflex Technology, Inc. 2013
All brand and product names and trademarks are the property of their respective holders.
14520900020
P/N:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX-4200 and is the answer not in the manual?

Questions and answers

Summary of Contents for POSIFLEX TX-4200

  • Page 1 All data should be backed-up prior to the installation of any drive unit or storage peripheral. Posiflex will not be responsible for any loss of data resulting from the use, disuse or misuse of this or any other Posiflex product.
  • Page 2: About This Product

    You may apply ammonia-based glass cleaner only on the screen surface. ABOUT THIS PRODUCT TX-4200/4200E/4200R Series is a multi-purpose controller that can be ideal for various applications. With a compact housing, Intel Cedar view dual core processor, standard VGA + HDMI display interface, mini-PCIe expansion slot...
  • Page 3: Parts Identification

    LED indicator for power and SSD indicator. Power USB 24V port (TX-4200E/4200R)/USB port (TX-4200). I/O plate (TX-4200/4200E/4200R) on the rear side (a pair of 12V power USB ports on TX-4200R supported only , relatively COM3/4 ports on TX-4200/4200E rear side).
  • Page 4 HDMI port x1, on the I/O Plate x1, on the I/O Plate N/A x1 Need extension x1 Need extension x 1 Need extension Parallel port cable (option) cable (option) cable (option) PS/2 KB Yes, on the front Yes, on the front Yes, on the front side side...
  • Page 5: Usb Function

    Standard 6 ports, 5 ports on 6 ports, 5 ports on 10 ports,7 ports on USB port the I/O plate, the I/O plate, 1 port the I/O plate, optional one 24V on the front plate optional one 24V power USB port on power USB port on the front side, the front side, the...
  • Page 6 Fanless system OS support XP Pro, POSReady Linux , XP Pro, Linux, XP Pro, 7/2009, Win 7 POSReady 7/2009, POSReady 7/2009, Win 7 Win 7 SSD (16GB SSD (16GB SSD (16GB Minium) through Minium) through Minium) through SATA interface SATA interface SATA interface 2nd display D-SUB 15 Pin;...
  • Page 7: Hardware Power Switch

    INSTALLATION GUIDES Hardware Power Switch The power switch located in the front bezel of main unit. It is a pushbutton switch and controls the power on/off of the whole system. This power switch turns the system on when pushed only. This switch turns the system off when pushed again during power on status.
  • Page 8 VGA connector, please refer to the Posiflex technical information. Do not connect other monitor to this port before the power in this port is disabled. Rear I/O Plate Please hold the base and pull up the terminal carefully then you will see the I/O plate.
  • Page 9 The VGA port can support +12 V power through system BIOS setting for Posiflex LCD display monitor. 2 VGA port +12V power is set by jumper. Nevertheless, except Posiflex peripheral device, do not connect any other device to this port before the power in this port is disabled.
  • Page 10 Connecting Cash Drawer (Optional) The RJ11 connector in I/O area of a TX-4200/4200E/4200R system can be used for controlling most of the common cash drawers which are driven by +12V signal. However, it is most recommended to use Posiflex CR seriesfor best compliance to operate the opening mechanism and to monitor the drawer open status.
  • Page 11: Application Environment

    System Recovery For TX systems preloaded with Windows POS Ready / Win 7 / Linux on HDD or Solid State Drive, Posiflex provides recovery DVD delivered with the terminal for the preloaded operating system. The System Integrator shall take care of software restoration after OS recovered. A Posiflex supplied USB interface DVD drive will be required for such action.
  • Page 12: Automatic Power On Control

    Please never do any connection / disconnection when system is still powered on. Please always keep the external power adaptor in a free air circulation. Automatic Power on Control The system may also turn on according to some preset conditions such as Modem Ring Up and Alarm Clock Wake Up or LAN Wake Up.
