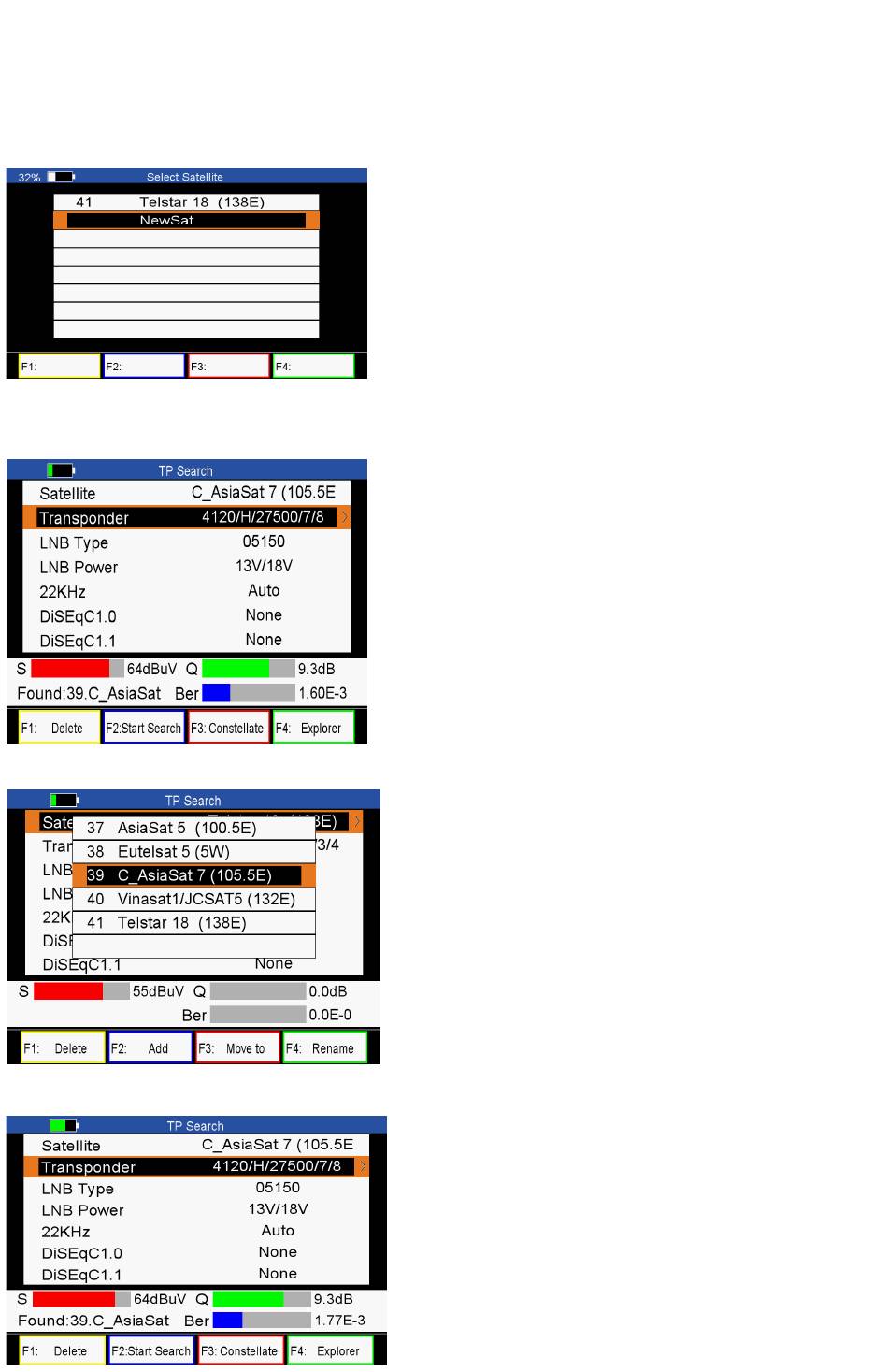

Highlight the TP Search and press the OK button to enter Select Satellite. In this menu, you can execute select, Add,
Delete, Rename, and Move to satellite.
DiSEqC1.0, DiSEqC1.1.
AD INSTRUMENTS
Select satellite and press the ok button to enter TP Search. This
menu allows you to configure the antenna setting parameters. You
can select satellite, transponder, LNB TYPE, LNB, Power, 22 KHz,
- Delete: If you highlight the Satellite, press F1 button to
delete satellite. If you highlight the Transponder, press F1
button to delete transponder.
- Start Search: After configure the antenna setting, press the
F2 button to TP search.
- Constellate: Press the F3 button to display constellation.
- Explorer:Press the F4 button to explorer the signal
information.
- Satellite: Press the ◄/► to select satellite or press the ok
button to enter satellite list, then select satellite. When you
highlight the satellite and press ok button, you also can
execute Delete, Add, and Move to and Rename satellite.
- Transponder: Press the ◄/► to select transponder or
press the ok button to enter transponder list, then select
transponder. When you highlight the transponder and
9
