press ok button, you also can execute Delete, Add, Delete, and Edit transponder and Edit PID.
Note: If you change the satellite, the transponder will be changed automatically.

4.2.2 Satellite IDE.

Main Menu-> satellite->Satellite IDE.
If you don't know the signal information of some usual sat, in this menu, please wait a moment, it will find the satellite
identify.
4.2.3

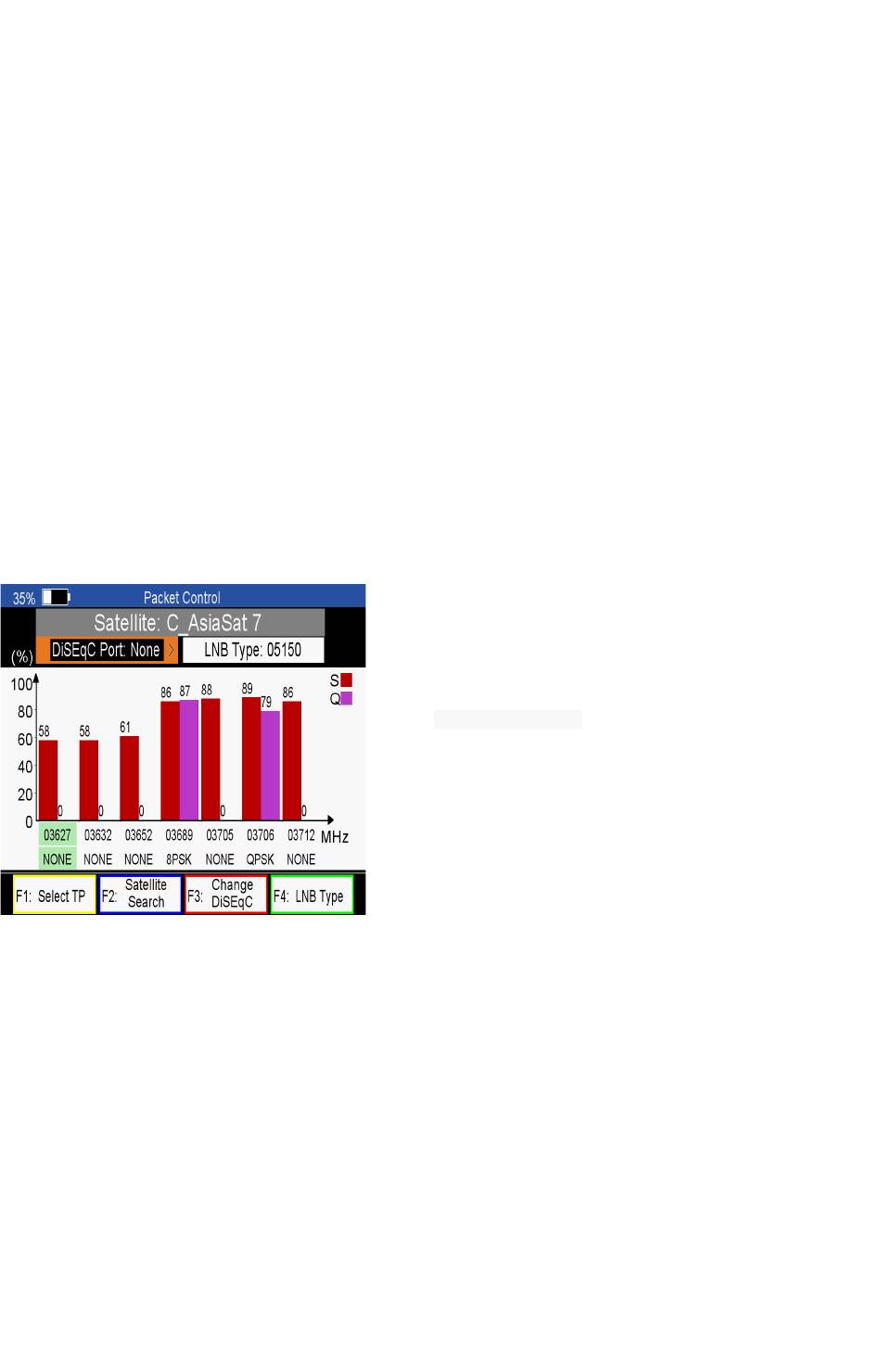

Packet Control

Main Menu-> Satellite -> Packet Control
In this menu, you can know the strength and quality of each transponder under the satellite.
Note: The satellite showed in this menu is what you selected in the menu of select satellite.

4.2.4 DiSEqC Search

Main Menu-> Satellite -> DiSEqC Search
If you connect to the DiSEqC 1.0 or DiSEqC 1.1, it will search the satellite which it is connected, then you can press
F1 button to the port which you searched .You also can press the F2 button to change DiSEqC type, press F4 button
to change LNB Type,
AD INSTRUMENTS
- Select TP: Highlight the transponder and press F1 button to
enter TP list, and select what you want, then highlighted
transponder will become you selected, and display the
strength and quality.
- Satellite Search: Press F2 button to search all
transponders of this satellite.
- Change DiSEqC: Press F3 button to change DiSEqC Port.
- LNB Type: Press F4 button to change LNB Type.
10
