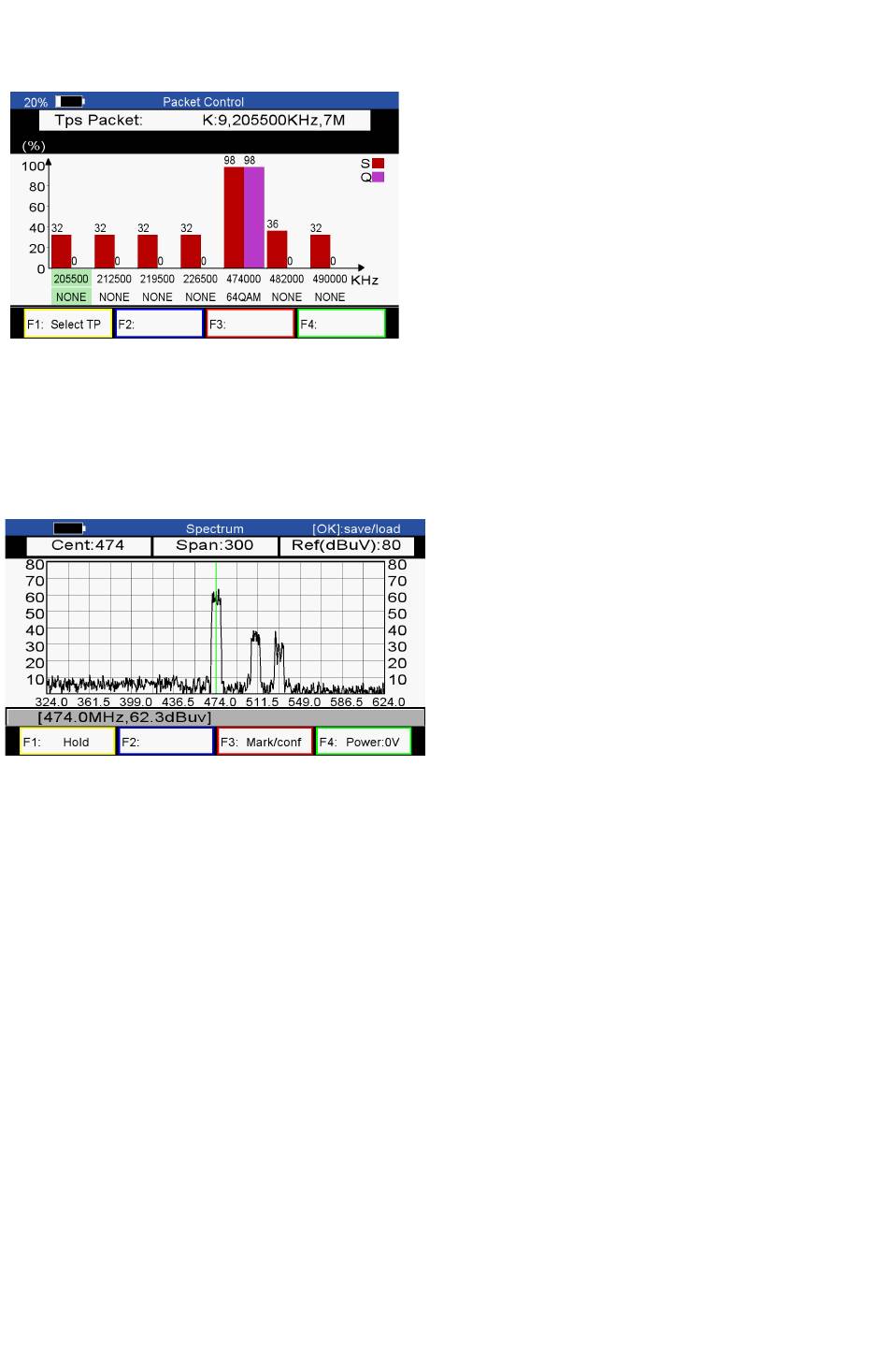

4.3.4 Spectrum

Main Menu-> Terrestrial ->Spectrum

In this menu, you can know the strength of all transponders.

- Hold: Press the F1 button to keep the spectrum.

- ◄/►:Change the transponder

- ▲/▼: Change the range of the Y-axis.

- F3 (Mark/conf): Set the center TP, the transponder of span and the range of the Y-axis.

- F4 (Power): Set voltage for T tuner to 0V, 5V, 12V.

Main Menu-> CATV

Press OK button to enter the CATV menu.

AD INSTRUMENTS

Note:

After insert USB, you can press OK button to save

or load the data of spectrum. If you select saving the data,

you can press OK button or exit button to close the save.

Then you can find "spectrum_file_001.txt "in your USB. If

you select Loading, you need to load the"

spectrum_file_001.txt"in your USB, and then you can see

the previously saved spectrum data.
