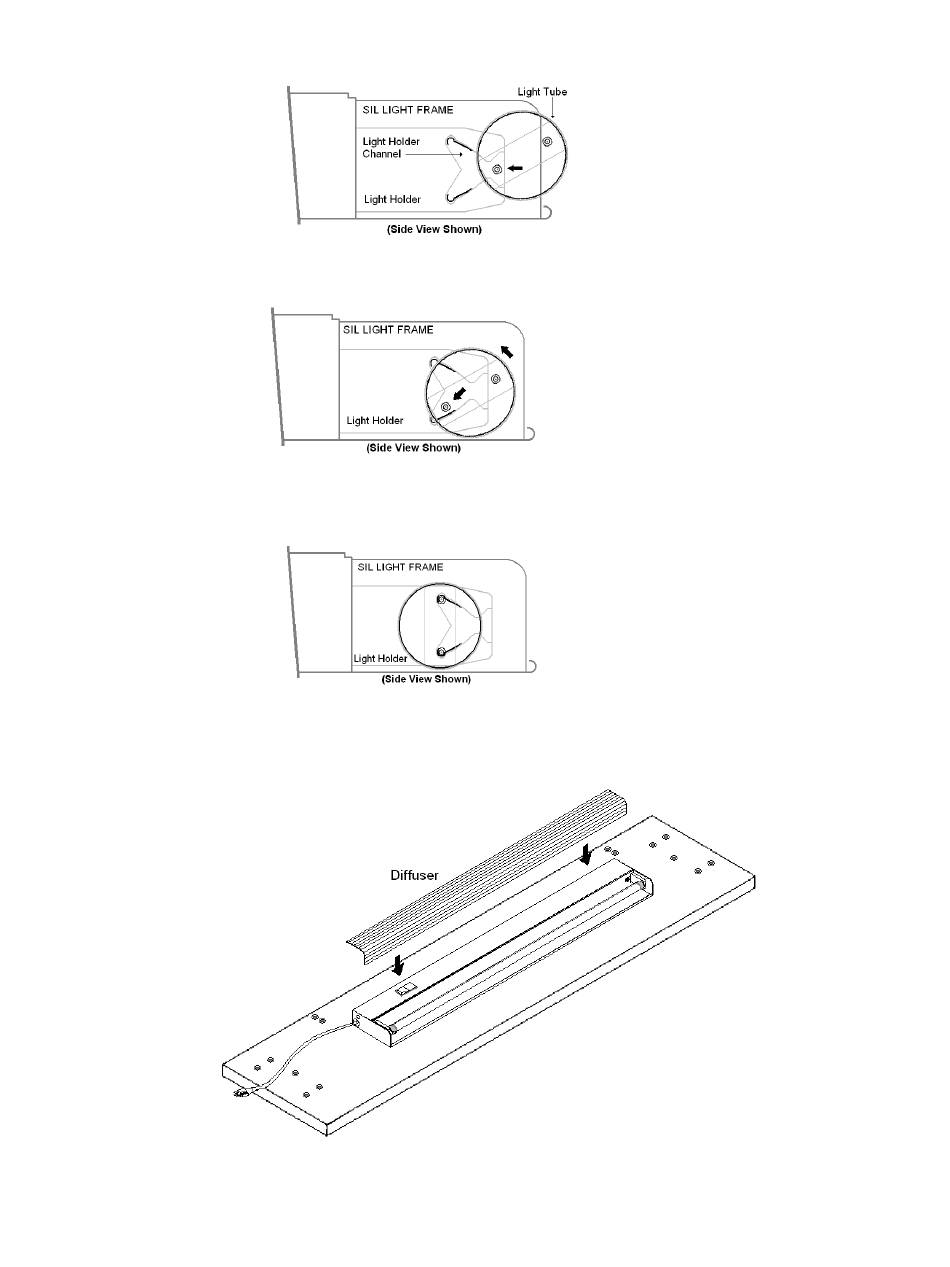

Install only the IAC recommended light tubes for these light fixtures. For the 36" light fixture the recommended
light tube is F25 T8. For the 48" light fixture the recommended light tube is F32 T8. Install the light tube into
the light tube holders located at each end of the light fixture by inserting one of the two pins on each end of
the light tube into the channel of light tube holders.
Step 4:
Insert the second pin of the light tube in the channel of the light tube holders and slowly turn the light tube into
the channels as shown.
Step 5:
Rotate the light tube into the light tube holders being sure both pins of the light tube are in the light tube
holder channels until the light tube locks into place. Double check the installation to make sure all four pins of
the light tube are in the light tube holders.
Step 6:
Carefully reinstall the diffuser into the under shelf light fixture taking care not to force it into place as this could
cause it to break.
