22
6.

Technical data

Rated operating voltage
Operating voltage range
Current consumption at rated voltage
Additional current consumption of the block coil
Storage temperature range
Operating temperature range
Mounting position
International protection acc. DIN 40 050
Environmental class acc. VdS
Dimensions (W x H x D)
Housing sleeve
Face plate
Bolt
Bolt throw
Face plate
Keybit position profile semi-cylinder
(Depending on door stop)
The IK block lock 022220 complies with the essential requirements of the R&TTE 1999/5/EC Directive,
if used for its intended use.
The EC-Declaration of Conformity can be downloaded from our homepage (Service / Download).
7.

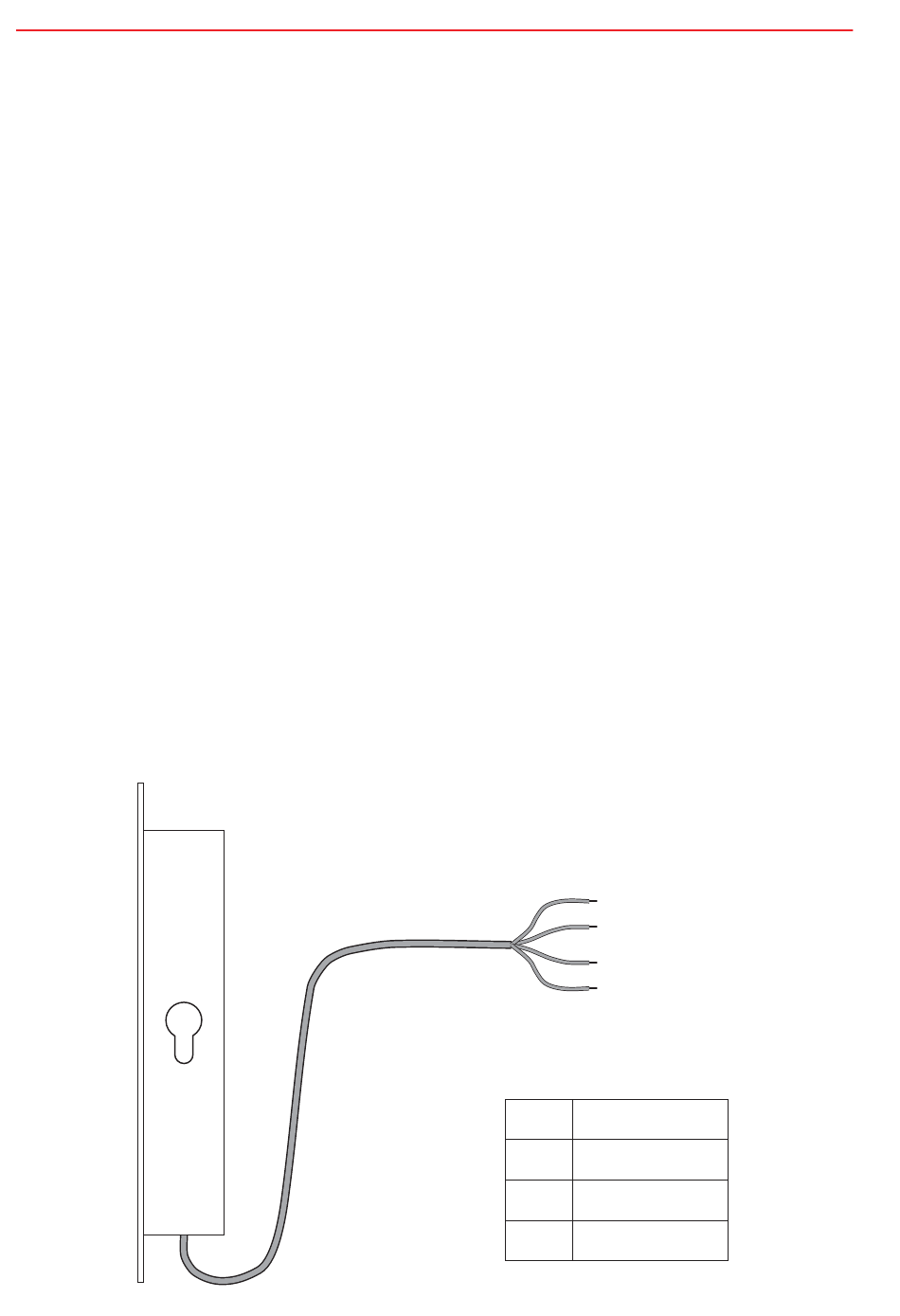

Connection diagram

Mounting and Connection Instructions IK2 block lock
12 V DC
10.0 V to 15 V DC
6 mA
120 mA
-30 °C to +60 °C
-25 °C to +60 °C
any
IP 30
III
16 x 210 x 40 mm
20 x 257 x 3 mm
11 x 40 mm
15 mm
130 x 25 x 3 mm
90° right or 90° left
brown
white
yellow
green
brown
white
yellow
green
U_b +12V DC
U_b 0V
data
enable
