20
4.5

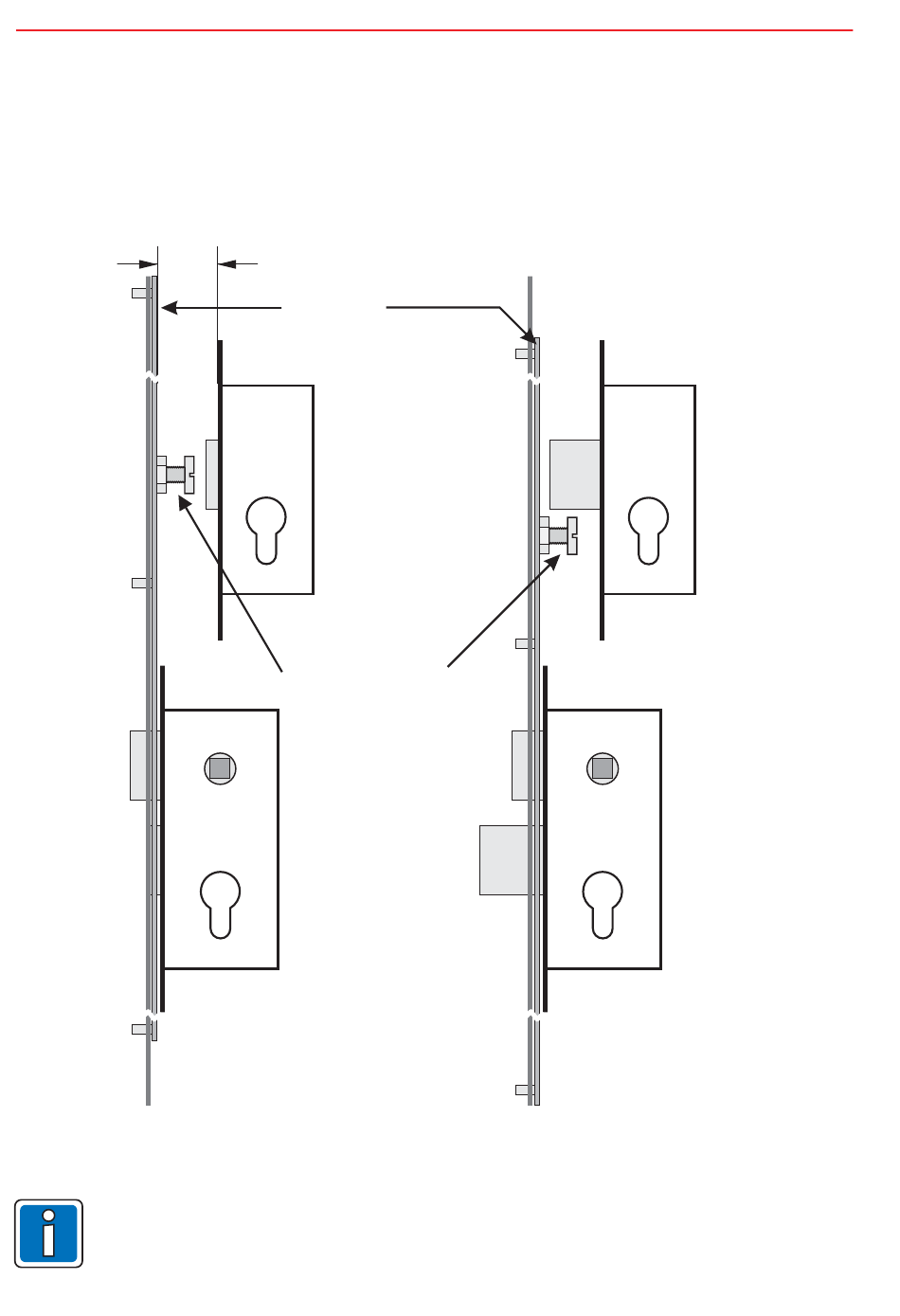

Block lock mounting behind a multiple locking device
(wooden doors)
In combination with the special face plate 16 mm (Item-No. 022121 ) an IK-block lock can be
mounted easily on a door with multiple locking. Also see the folder "Electrical installation of hazard
detection systems" (P03061-15-000-XX)
Locking rods
open
The block lock recess must be laid out so that there is a distance of 20 mm between
block lock face plate and moving connecting rod of the multiple locking device when the
block lock is inserted.
20 mm
Moving
push rods
Block lock
Locking screw
Existing door lock
Mounting and Connection Instructions IK2 block lock
Locking rods
shut
Block lock
Existing door lock
