Mounting and Connection Instructions IK2 block lock

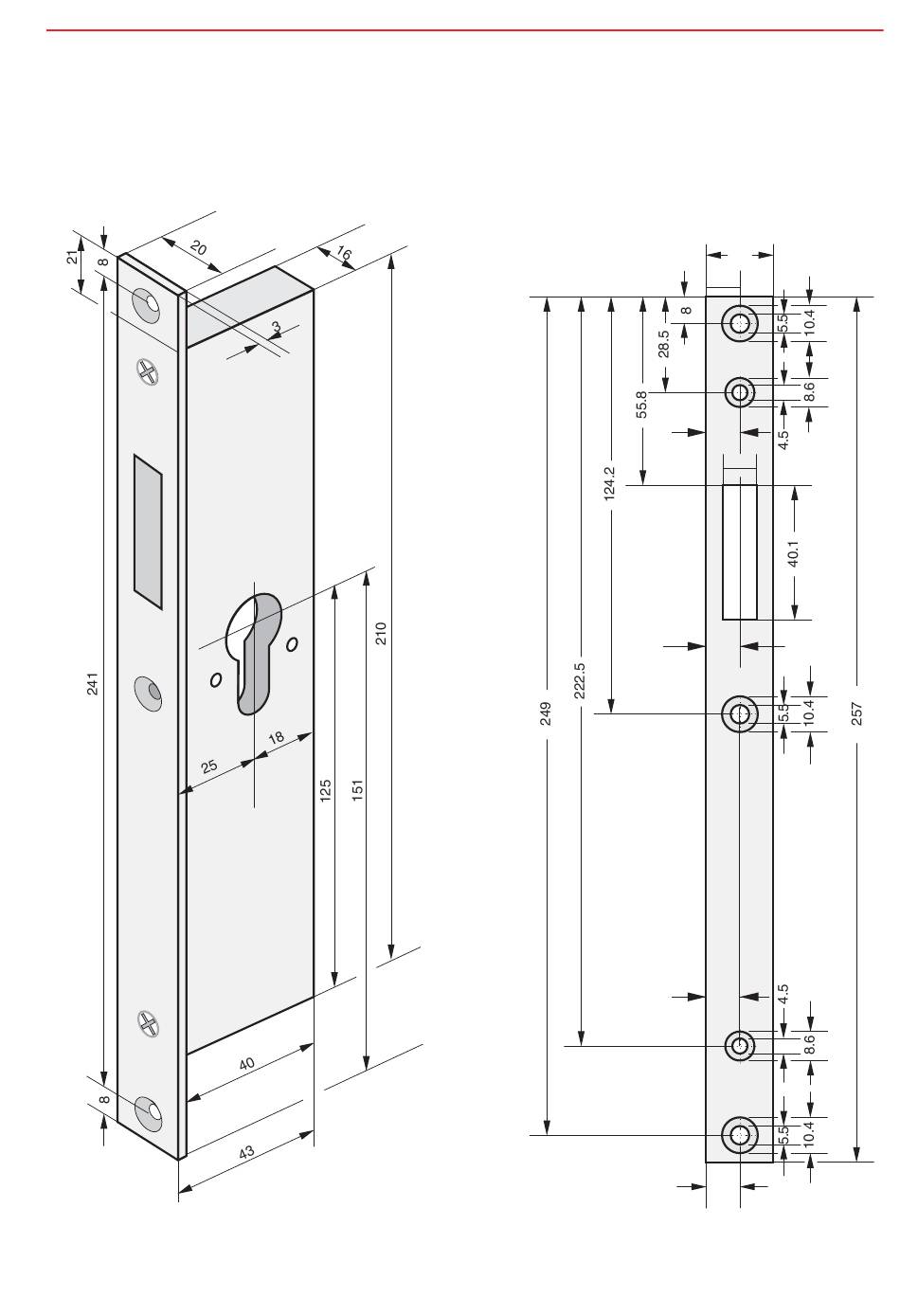

3. Dimensions IK-block lock with standard face plate
(in mm)
15
20
10
10.5
11
10
10.5
10
