The Control Station's Software can by updated at the factory or at the customer site. This section
refers to the procedure needed to update the software in the field (customer site). IT IS VERY
IMPORTANT TO FOLLOW THIS PROCEDURE EXACTLY AS SHOWN BELOW.
1. Turn the power OFF to the Control Station, by turning off the power disconnect.
2. Open the Motor Starter and insert the supplied memory card into the memory slot on the
top of the PLC. DO NOT force the card into its slot, it will simply slide into its
connections and click once it is in place. The card's electrical connection will face the
Control Station's Face plate.
3. Turn the Power back ON.
4. Once the Initial screen appears, Press the Set UP soft key or F2 hard keys.
5. The Password screen will appear and enter 5850 into the passcode area.
6. Press the Enter soft key or F3.
7. The Set Up Screen #1 (Select Language) screen will appear.
8. From this screen, and this screen only press the F2 hard key. It is not labeled on the
screen, but it will allow you to enter into the SYSTEM screen.
9. Press the Down arrow until the cursor is shown over the Removable Media setting.
10. Press the Return button (looks like an arrow going down and to the left) to enter into the

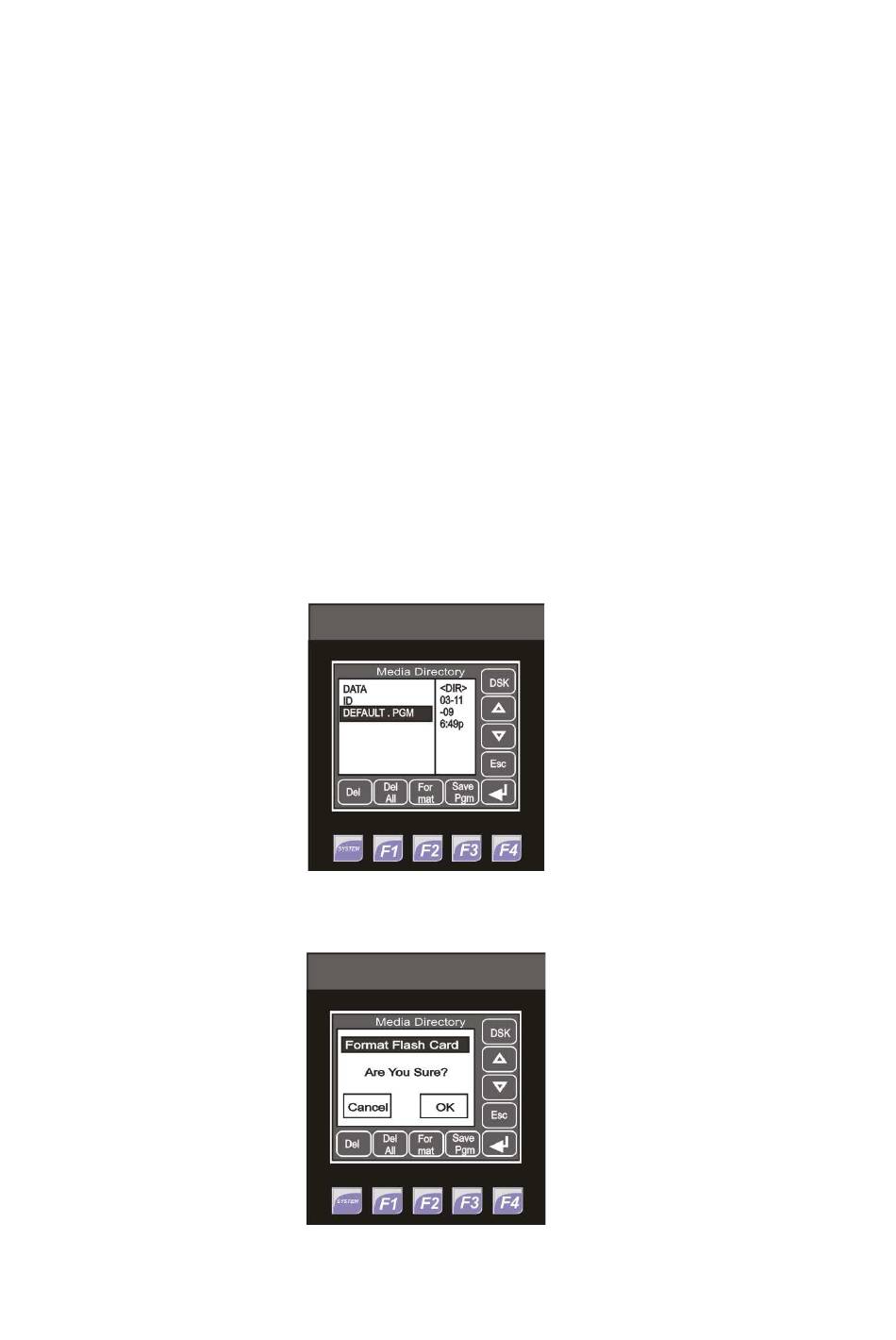

Removable Media screen. The screen should look like this one shown below:
11. Select the DEFAULT.PGM file by moving the cursor with the Up and Down soft keys.
12. Press the Return button and the following screen should appear:
Updating The Software
