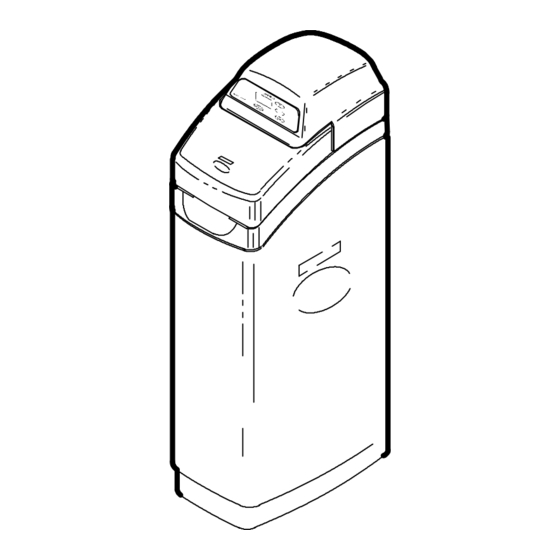

EcoWater ESD 518 Owner's Manual

Electronic demand water system
Hide thumbs Also See for ESD 518:

Advertisement

Table of Contents

See also: Owner's Manual
OWNER'S MANUAL
How to maintain and operate your
EcoWater electronic demand water system
MODEL
ESD 518
Designed, Engineered &
Assembled in the U.S.A.
Systems tested and certified by NSF
International against NSF/ANSI Standard 44
for hardness reduction and efficiency and
the reduction of barium and radium 226/228,
and certified to NSF/ANSI Standard 372
Systems tested and certified by the Water
Quality Association against CSA B483.1.
EcoWater Systems LLC
P.O. Box 64420, St. Paul, MN 55164--0420
www.ecowater.com
.
1
MODELS
ESD 2502R30
ESD 2502R39
Part No. 7339905 (Rev. F 3/31/15)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESD 518 and is the answer not in the manual?

Questions and answers

Bob Nelson
March 16, 2025

The control board on my ESD 518 is in a set time flashing mode constantly. Cannot program.

0
1 comments:
Mr. Anderson
March 16, 2025

To fix the control board flashing issue on your EcoWater ESD 518, try the following steps:

1. Check the RECHARGE Indicator: If the display is flashing "RECHARGE TONIGHT," press and release the RECHARGE keypad once more to cancel the regeneration.

2. Power Cycle the Unit: If the display is blank, the softener may have lost power. When power is restored, the timer should retain the correct time for several hours.

3. Inspect Wiring and Power Supply: Ensure the unit is properly connected to a 120V AC power source and that all wiring is secure.

4. Check the Turbine Sensor and Motor: The flashing may indicate an issue with the turbine sensor or motor. Verify that these components are properly connected and functioning.

5. Reset the System: If the issue persists, try unplugging the unit for a few minutes and then plugging it back in to reset the control board.

If the problem continues, consider contacting an EcoWater dealer for further troubleshooting or repairs.

This answer is automatically generated

0

Related Manuals for EcoWater ESD 518

Summary of Contents for EcoWater ESD 518

  • Page 1 OWNER’S MANUAL How to maintain and operate your EcoWater electronic demand water system MODELS MODEL ESD 2502R30 ESD 518 ESD 2502R39 Systems tested and certified by NSF International against NSF/ANSI Standard 44 for hardness reduction and efficiency and the reduction of barium and radium 226/228,...

  • Page 2: Limited Warranty

    LLC, is excused if failure to perform its warranty obligations is the result of strikes, government regulation, materials short- ages, or other circumstances beyond its control. To obtain warranty service, notice must be given, within thirty (30) days of the discovery of the defect, to your local EcoWater Systems dealer.

  • Page 3: Safety Guides

    Use care when handling the EcoWater softener. Do not turn upside down, drop, or set on sharp protrusions. Do not locate the EcoWater softener where freezing temperatures occur. Do not attempt to treat water over 120° F. Freezing, or hot water damage voids the warranty.

  • Page 4: Performance Claims

    Operational efficiency is the actual efficiency after the system has been installed. It is typically less than the rated efficiency, due to individual application factors including water hardness, water usage, and other contaminants that reduce a softener’s capacity. ESD 518 ESD 2502R30 ESD 2502R39 Rated Capacity (grains @ salt dose) 10,100 @ 2.0 lbs...
  • Page 5 INSTALLATION -- (MODELS ESD 518 & ESD 2502R30) (ESD 518 shown) FIGURE 1 CONDITIONED WATER bypass valve 120V, HARD 60 Hz HARD WATER outlet 3--- valve WATER outlet valve bypass system power supply inlet valve (included) OUTLET to timer OUTLET...

  • Page 6: Important Notes

    INSTALLATION (continued) -- (MODELS ESD 518 & ESD 2502R30) 5. INSTALL INLET AND OUTLET ADAPTORS, OR piece of 3/4” thick plywood (slightly larger than the THE OPTIONAL BYPASS VALVE. bottom of the brine tank). Then shim under the ply- wood to level the softener.
  • Page 7 CAUTION: Do all soldering, and allow to cool, before connecting pipe to the adaptors or bypass valve. a. Use the EcoWater ground clamp kit (not he house cold water pipe (metal only) is often 3. T included) to make a jumper across the inlet and used as a ground for the house electrical system.
  • Page 8 Note: Flexible drain hose is not allowed by some state or local codes. A fitting (1/4” NPT x 1/2” O.D. tube, part no. 0504574) is available from EcoWater for adapting copper tubing to the valve drain fitting. 5. Route the brine valve tubing out of the brine tank and connect to the nozzle assembly.
  • Page 9 AM shows. Model NOTE: Each press of the UP or DOWN keypads changes ESD 518 the time by 1 minute. Pressing and holding the keypads changes the time 32 minutes each second. 2. SET WATER HARDNESS NUMBER:...
  • Page 10 3. SET RECHARGE (REGENERATION) TIME: NOTE: California regulations require the efficiency set- ting to be ON for sale in California. Press the SELECT keypad once to display 2:00 AM NOTE: When efficiency setting is set to (flashing) and RECHARGE TIME. on, an icon will show in the upper right At the 2:00 AM RECHARGE TIME set- hand corner of the display.

  • Page 11: Wiring Schematic

    EXTRA RECHARGE again, you have to reset the present time only if the dis- play is flashing. The HARDNESS and RECHARGE TIME Sometimes, a manually started regeneration (recharge) never require resetting unless a change is desired. may be desired, or needed. Two examples are: Even if the timer is incorrect after a long power outage, .

  • Page 12: Refilling With Salt

    If it should become plugged with sand, silt, refilling routine, check the salt every 2 or 3 weeks. AL- dirt, etc., the EcoWater System Unit will not work, and WAYS refill if less than 1/2 full. Be sure the brinewell cov- you will get hard water.
  • Page 13 9), regular resin bed cleaning is needed to keep the bed tank from coating with iron. Use resin bed cleaner, available from EcoWater, following directions on the container. bottom FREEBOARD Clean the resin every 6 months, or more often if iron ap-...
  • Page 14 REPAIR PARTS -- ALL MODELS Valve Assembly (see pages 16 --- 19 )
  • Page 15 Union Connector = 7108118 Drain Hose, 1/2” I.D. (order length needed) optional parts to extend brine tubing (not included) z Not shown. To order parts, call your local EcoWater dealer or go to www.ecowater.com to locate a dealer in your area.
  • Page 16 REPAIR PARTS -- ESD 518 & ESD 2502R30 wear--strip seal cross--section view...
  • Page 17 Installation Adaptor, 3/4”, single (2 req.) 7344154 Installation Adaptor, 3/4”, pack of 10  Optional part -- not included (includes 10 ea. of Key No. 75) To order parts, call your local EcoWater dealer or go to www.ecowater.com to locate a dealer in your area.
  • Page 18 REPAIR PARTS -- ESD 2502R39 wear--- strip seal cross--- section view...
  • Page 19 O-Ring, 1-1/16” x 1-5/16”, pack of 20  Bypass Valve, 1” 7214383 (incl. 2 ea. of Key Nos. 121 & 123)  Optional part -- not included To order parts, call your local EcoWater dealer or go to www.ecowater.com to locate a dealer in your area.
