HP-4 Direct Curved Installation Instructions

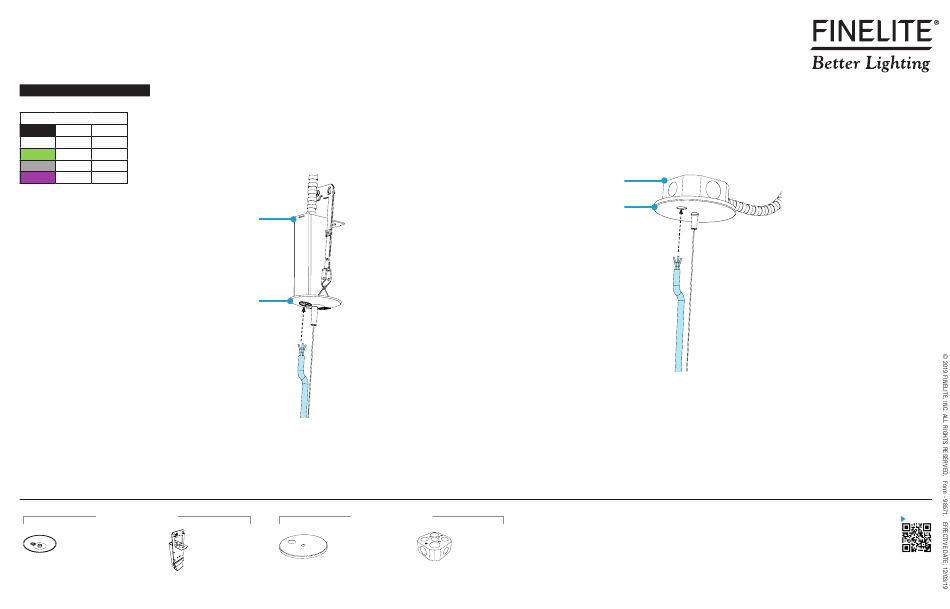

Step 4 - Mounting Luminaires to Structure
B. Make Electrical Connections
WIRING LEGEND
Black Hot Line Voltage
White Neutral Line Voltage
Green Ground
Grey Dimming 0-10V DC
Purple Dimming 0-10V DC
Gridbox™ (provided)
3-1/2" Canopy (provided)
• (Option 1) Feed power cord through the 3-1/2" canopy and connect wires inside the GridBox™.
(Option 2) Feed power cord through the 5" canopy and connect wires inside the J-Box.
•
Mounting Option 1
3-1/2" Canopy GridBox™
(provided)
(provided)
Option 1
GridBox™
Mounting Option 2
J-Box
5" Canopy
(by others)
(provided)
Option 2
J-Box
J-Box (by others)
5" Canopy (provided)
0-10V
Dimming
