HP-4 Direct Curved Installation Instructions
Step 1 - Mounting & Suspension
Mounting Options
Option 1
T-Bar Mounting - GridBox™ and Caddy Clips
Install GridBox™ and electrical conduit at feed locations.
•
• Install caddy clips at mounting point locations.
All caddy clips are to be secured to structure, per local building codes.
•
Option 2
Drywall (C4) or other hard surfaces* - J-Box and Anchor Bolts
Install J-Box and electrical conduit at feed locations.
•
• Install anchor bolts at mounting point locations.
All anchor bolts are to be secured to structure, per local building codes.
•
* Other hard surfaces include: wood, sheet metal panels, steel beams,
concrete or masonry. Use hardware appropriate for each surface material type.

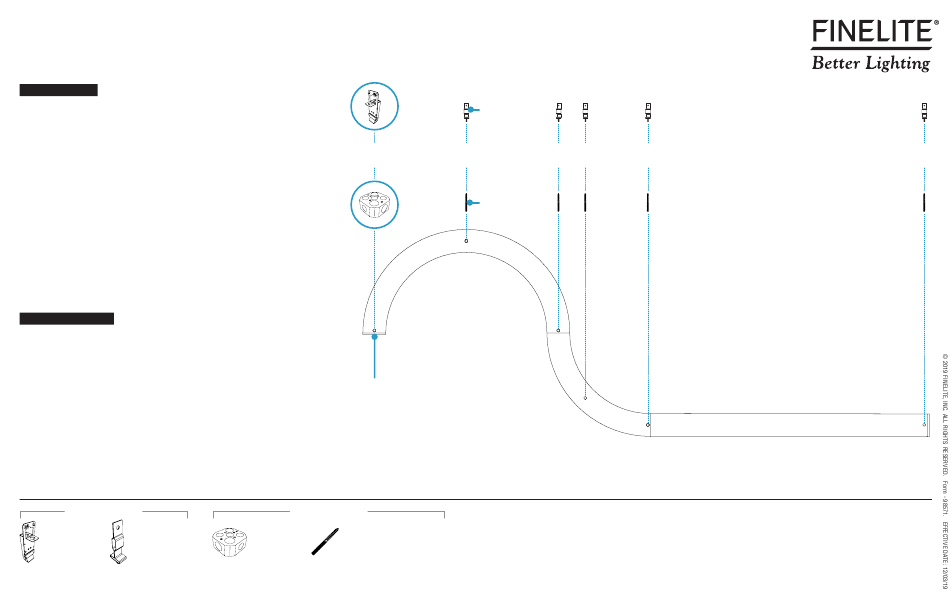

Suspension Locations
Refer to Record Drawings and building plans to determine
exact mounting, suspension points, and power feed locations.
Use drawings on page 3 as measurement references.
Mounting Option 1
GridBox™ Caddy Clip
(provided) (provided)
GridBox™ (provided)
or
J-Box (by others)
Curved Starter (180°)
Endcap
Mounting Option 2
J-Box
1/4"-20 Anchor Bolt
(by others)
(by others)
Caddy Clip
(provided)
or or or
1/4"-20 Anchor
Bolt (by others)
ID: 1
Curved Joiner (90°)
ID: 2
or
Joiner/Ender
ID: 3
or
CONTINUED
