E3 LED Engine Replacement Instructions
Overview
NOTES
All power connections should be installed according to
•
local/national codes by a Certified Electrician.
Turn off power to luminaire while switching out LED engine.
•

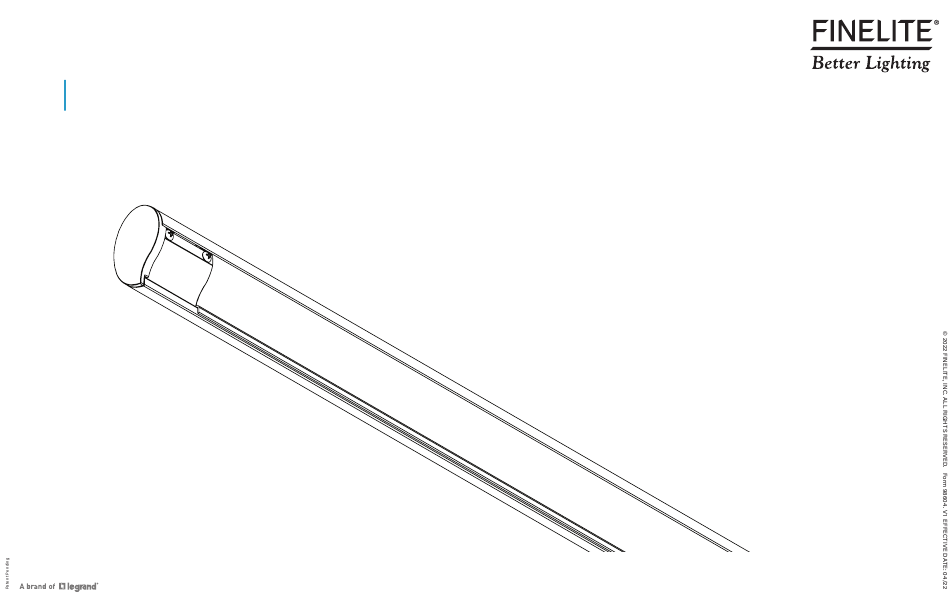

This is a hypothetical build to show the capabilities of this luminaire family and mount type. Your build may vary.
Step 1
Opening Luminaire
Page 2
Step 2
Replacing LED Engine
Page 3
Finelite, Inc. • 30500 Whipple Road • Union City, CA 94587-1530 • (510) 441-1100 • Fax: (510) 441-1510 • www.finelite.com
1 of 3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Finelite E3 LED Engine
Summary of Contents for Finelite E3 LED Engine
- Page 1 This is a hypothetical build to show the capabilities of this luminaire family and mount type. Your build may vary. Finelite, Inc. • 30500 Whipple Road • Union City, CA 94587-1530 • (510) 441-1100 • Fax: (510) 441-1510 • www.finelite.com...
- Page 2 E3 LED Engine Replacement Instructions Step 1 - Opening Luminaire A. Remove Diffuser B. Disconnect LED Engine Diffuser Remove Shunt (provided) Remove Screws Shunt Wire (provided) Use a putty knife to lift open the lower edge of the diffusers. Slowly work down the length of the •...
- Page 3 E3 LED Engine Replacement Instructions Step 2 - Replacing LED Engine A. Replace LED Engine B. Re-Connect Engine C. Replace Diffuser Diffuser (provided) Shunt Wire (provided) 6-32 screw (provided) Re-install diffuser by slipping the upper portion of the diffuser into the pocket above the LED engine.
