HP-4 Direct Curved Installation Instructions

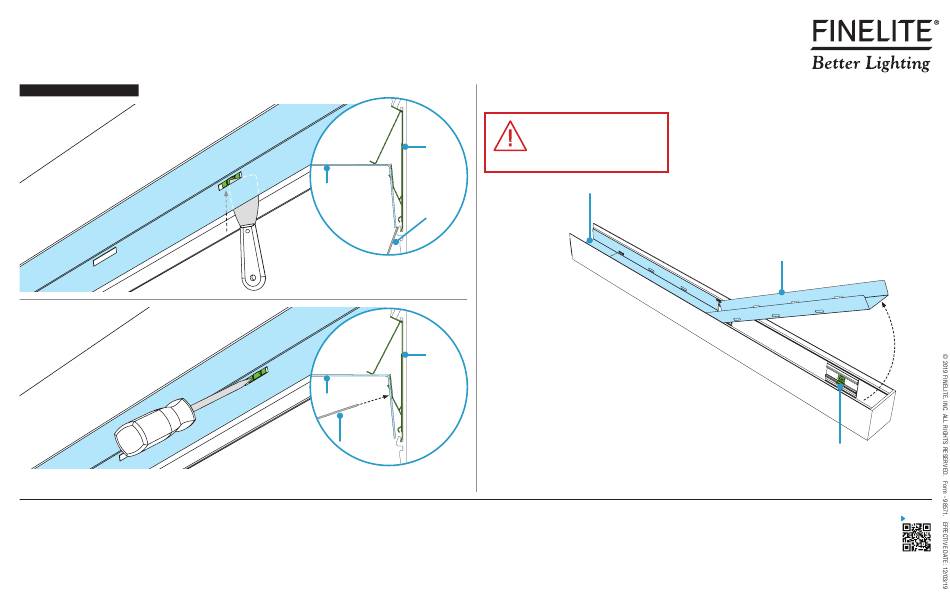

Step 3 - Opening Straight Luminaires
Release Straight Backplates Top-Down View
Putty Knife Option
Flathead Screwdriver Option
Release the backplates from clips by sliding the blade of a putty knife behind backplate edges.
•
• To use a flathead screwdriver, press end of screwdriver (from inside the luminaire) against the clip, until the backplate is released.
Backplate
Backplate
Backplate
Backplate
Flathead
Screwdriver
Top-Down View
Be careful when releasing backplates.
Clip
Do NOT remove double diffusers.
CAUTION
Double Diffuser
Putty
(Do NOT Remove)
Knife
Clip
CAUTION: Be careful when releasing backplates. Do NOT remove double diffusers.
•
• Carefully rotate backplate out at the joint only and let it hang from luminaire body.
Backplate
Clip
Effortless
Access
6 of 12
