HP-4 Direct Curved Installation Instructions

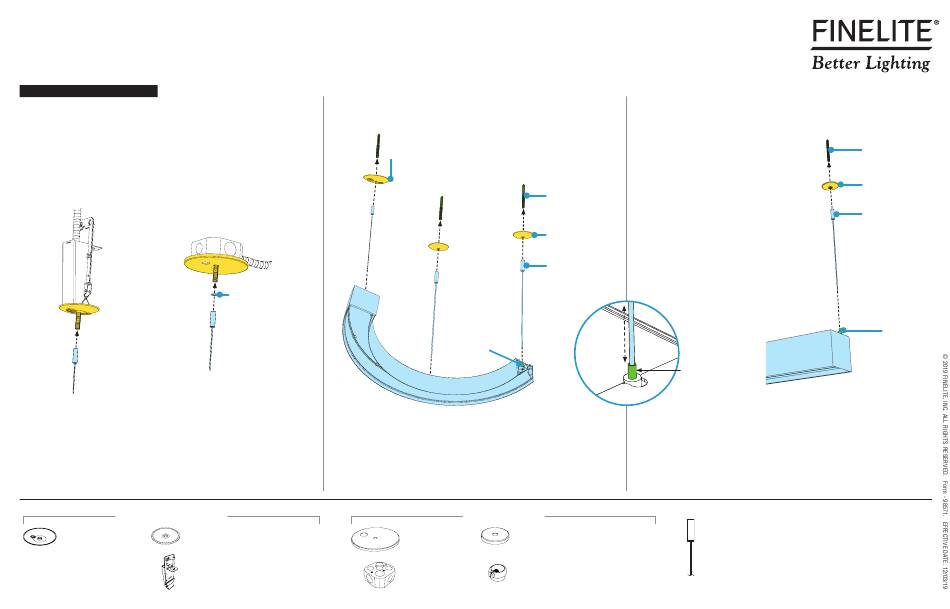

Step 4 - Mounting Luminaires to Structure
A. Mount Luminaires to Structure
Electrical Options
Option 1
GridBox™
Determine which electrical option will be used.
•
Mounting Option 1 (shown)
3-1/2" Canopy 2" T-Bar Support Canopy
(provided) (provided)
GridBox™
(provided)
Curved Starter
Option 2
J-Box
Slip Ring
Slide canopy appropriate for electrical type options onto mounting bolt (anchor bolt or
•
caddy clip bolt).
(Option 2 only) Thread the slip ring onto anchor bolts and secure with set screw at
•
mounting locations.
Thread the bushing/cable assembly onto mounting bolts.
•
While properly supporting luminaires, maneuver luminaires to ceiling and insert cables
•
into cable grippers to support luminaires from ceiling.
Level each luminaire to desired height by depressing top of grippers to adjust cable lengths.
•
Feed Canopy (provided)
Mounting Bolt
(see options, p.2)
Support Canopy
(provided)
Bushing/Cable
Assembly
(provided)
Gripper
(attached)
Mounting Option 2
5" Canopy 2" Drywall Support Canopy
(provided) (provided)
J-Box Slip Ring w/ Set Screw
(by others) (provided)
Straight Joiner
Level
Luminaire
Depress to release
locking mechanism
Slide canopy appropriate for electrical type options onto mounting bolt (anchor bolt or
•
caddy clip bolt).
(Option 2 only) Thread the slip ring onto anchor bolts and secure with set screw at
•
mounting locations.
Thread the bushing/cable assembly onto mounting bolts.
•
While properly supporting luminaires, maneuver luminaires to ceiling and insert cables
•
into cable grippers to support luminaires from ceiling.
Level each luminaire to desired height by depressing top of grippers to adjust cable lengths.
•
Bushing/Cable Assembly
(provided)
Mounting Bolt
(see options, p.2)
Support Canopy
(provided)
Bushing/Cable
Assembly
(provided)
Gripper
(attached)
CONTINUED
