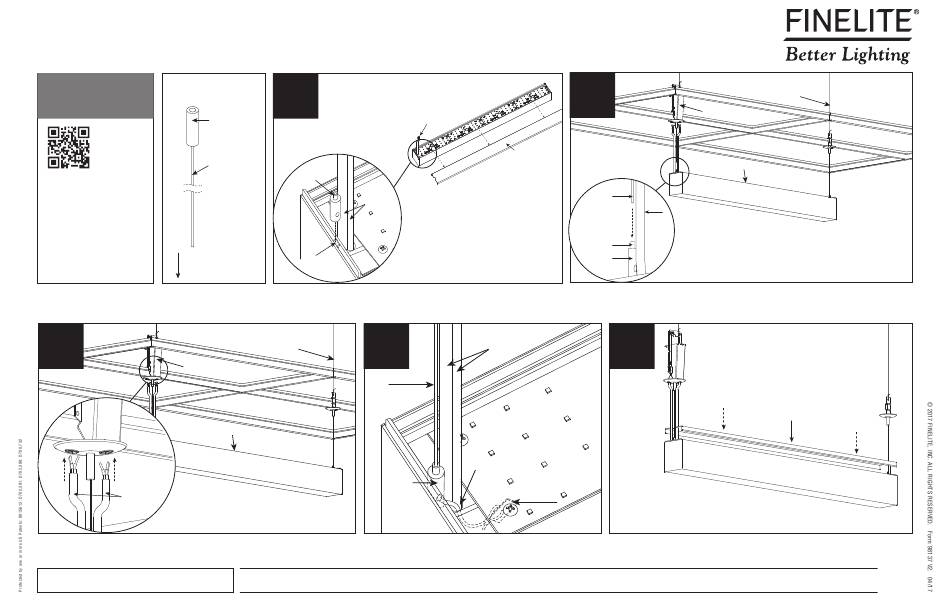

Finelite HP-4 Installation Instructions

HP-4 Indirect/Direct Starter/Independent Installation Instructions
Ceiling
Scan QR code for
helpful video(s)
Cable Bushing
0 - 10V
Dimming
Aircraft Cable
(provided)
Luminaire
Locate aircraft cables.
Step 3
GridBox (provided)
Power Cords
(Dual Power Cords
when multi circuit)
Install power cable through canopy and into GridBox™. Make electrical connections in GridBox.
Note: All power connections to be installed to
local/national codes by a Certified Electrician.
Step 1
Gripper
(provided)
2 Power Cords
Threaded
Stud
Remove Top Glow™ Diffuser and set aside. Install grippers (provided) onto threaded
studs on both ends of the luminaire.
Secure to Structure
(by others)
Step 4
Aircraft
Cable
Starter
Gripper
(provided)
Slide safety stop (provided) and safety crimp up to the aircraft cable
(provided) within 9" of cable gripper (provided). Trim excess cable and
insert safety bar assembly through feed hole.
Finelite, Inc. • 30500 Whipple Road • Union City, CA 94587-1530 • (510) 441-1100 • Fax: (510) 441-1510 • www.finelite.com
Step 2
Power Cords
Top Glow™ Diffuser
Aircraft
Cable
(provided)
Press Down
Here to Release
Locking
Mechanism
Gripper
(provided)
Align aircraft cables (provided) to grippers (provided)and insert on both ends of the luminaire.
Adjust pendant to proper height and level. Press down on top of gripper to release locking mechanism
if needed. Secure luminaire to structure using tie-wire (supplied by others) according to code.
2 Power Cords
Feed Hole
Safety Stop
(provided)
Secure to Structure
(by others)
GridBox (provided)
Starter
Power
Cord
Step 5
Top Glow™ Diffuser
Reinstall Top Glow™ Diffuser and diffuser end caps. Turn power on to luminaire. NOTE: If
part of a longer run, diffuser will be reinstalled back into original luminaire section as
lengths vary.
1
