HP-4 Direct Curved Installation Instructions
Overview
NOTES
•
All power connections should be installed according to
local/national codes by a Certified Electrician.
•
This installation requires proper support as each luminaire
is being installed.
DO NOT attempt to join luminaires together on the floor.
•
Damage may result when lifted.
HELPFUL
0-10V
Effortless
Curved
VIDEOS
Dimming
Access
Joints
Step 1
Mounting & Suspension
Pages 2-3
Step 2
Identification & Preparation
Page 4
Opening Luminaires

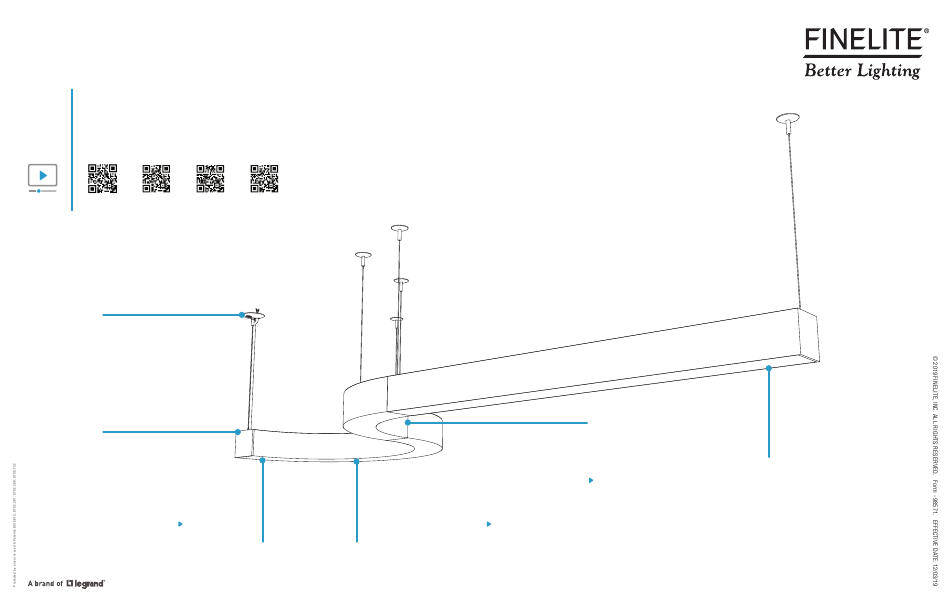

This is a hypothetical build to show the capabilities of this luminaire family and mount type. Your build may vary.
Simple
Plug-Together
Wiring
Step 3
Step 4
Mounting Luminaires to Structure
Pages 5-6
Pages 7-8
Step 5
Joining Luminaires
Page 9
Step 6
Securing Luminaire Joints
Page 10
Finelite, Inc. • 30500 Whipple Road • Union City, CA 94587-1530 • (510) 441-1100 • Fax: (510) 441-1510 • www.finelite.com
Step 7
Closing Luminaires
Pages 11-12
1 of 12
Advertisement
Related Manuals for Finelite Direct Curved HP-4
Summary of Contents for Finelite Direct Curved HP-4
- Page 1 This is a hypothetical build to show the capabilities of this luminaire family and mount type. Your build may vary. Finelite, Inc. • 30500 Whipple Road • Union City, CA 94587-1530 • (510) 441-1100 • Fax: (510) 441-1510 • www.finelite.com...
- Page 2 HP-4 Direct Curved Installation Instructions Step 1 - Mounting & Suspension Mounting Options GridBox™ (provided) Option 1 Caddy Clip T-Bar Mounting - GridBox™ and Caddy Clips (provided) Install GridBox™ and electrical conduit at feed locations. • • Install caddy clips at mounting point locations. All caddy clips are to be secured to structure, per local building codes.
- Page 3 HP-4 Direct Curved Installation Instructions Step 1 - Mounting & Suspension 4D-180 4D-90 Suspension Locations Refer to Record Drawings and building plans to determine exact 4D-45 mounting, suspension points, and power feed locations. 24" = Suspension point 24" 22" = Additional suspension point 17"...
- Page 4 Part# 89159 Part# 89191 Part# 94085 Part# 94014 Part# 94015 Part# 94514 their Finelite part numbers. Mounting Luminaires to Structure Closing Luminaires Dual GridBox™ 3-1/2" Dual Feed Canopy 5" Dual Feed Canopy Aircraft Cable p. 7, Step 3 p.
- Page 5 HP-4 Direct Curved Installation Instructions Step 3 - Opening Curved Luminaires Release Curved Backplates Top-Down View Top-Down View Putty Knife Option Be careful when removing backplates. They may be connected by wiring harnesses. Putty Do NOT remove double diffusers. CAUTION Knife Backplate Backplate...
- Page 6 HP-4 Direct Curved Installation Instructions Step 3 - Opening Straight Luminaires Release Straight Backplates Top-Down View Top-Down View Putty Knife Option Be careful when releasing backplates. Backplate Clip Do NOT remove double diffusers. CAUTION Backplate Double Diffuser Putty (Do NOT Remove) Knife Backplate Flathead Screwdriver Option...
- Page 7 HP-4 Direct Curved Installation Instructions Step 4 - Mounting Luminaires to Structure A. Mount Luminaires to Structure Electrical Options Curved Starter Straight Joiner Mounting Bolt (see options, p.2) Feed Canopy (provided) Option 1 Option 2 Support Canopy GridBox™ J-Box Mounting Bolt (provided) (see options, p.2) Bushing/Cable...
- Page 8 HP-4 Direct Curved Installation Instructions Step 4 - Mounting Luminaires to Structure B. Make Electrical Connections WIRING LEGEND Black Line Voltage Option 1 Option 2 White Neutral Line Voltage GridBox™ J-Box Green Ground Grey Dimming 0-10V DC Purple Dimming 0-10V DC J-Box (by others) 5"...
- Page 9 HP-4 Direct Curved Installation Instructions Step 5 - Joining Luminaires Join Luminaires Bottom-Up View Once luminaires are aligned together, Once luminaires are aligned together, Curved to Curved Straight to Curved joiner luminaire is not yet secure. joiner luminaire is not yet secure. Ensure it does not slide off as it rests Ensure it does not slide off as it rests on the curved starter luminaire.
- Page 10 HP-4 Direct Curved Installation Instructions Step 6 - Securing Luminaire Joints A. Secure Joint with Yoke Brackets Bottom-Up View B. Make Electrical Connections Bottom-Up View Cross Section View Plug-Together Wiring Aligner Sleeve Washer (provided) Level Luminaires Yoke Bracket (provided) Yoke Screw (provided) Depress to release locking mechanism NOTE: Straight to curved uses the same joining method as curved to curved (shown).
- Page 11 HP-4 Direct Curved Installation Instructions Step 7 - Closing Luminaires A. Crimp Safety Cable Top-Down View Curved Straight Aircraft Cable (provided) Aircraft Cable (provided) Reinstall Cover Plate Safety Crimp Cover Plate (provided) #8 Screw Safety Crimp (provided) Cover Plate End Plate Plate Screw Remove #8 screw and cover plate to gain access to safety cable.
- Page 12 HP-4 Direct Curved Installation Instructions Step 7 - Closing Luminaires B. Replace Backplates Bottom-Up View C. Replace Diffusers Bottom-Up View Curved Straight Be careful when replacing backplates. Be careful when replacing backplates. There may be preinstalled double There may be preinstalled double diffusers that should stay in place.
