HP-4 Direct Curved Installation Instructions
Step 6 - Securing Luminaire Joints

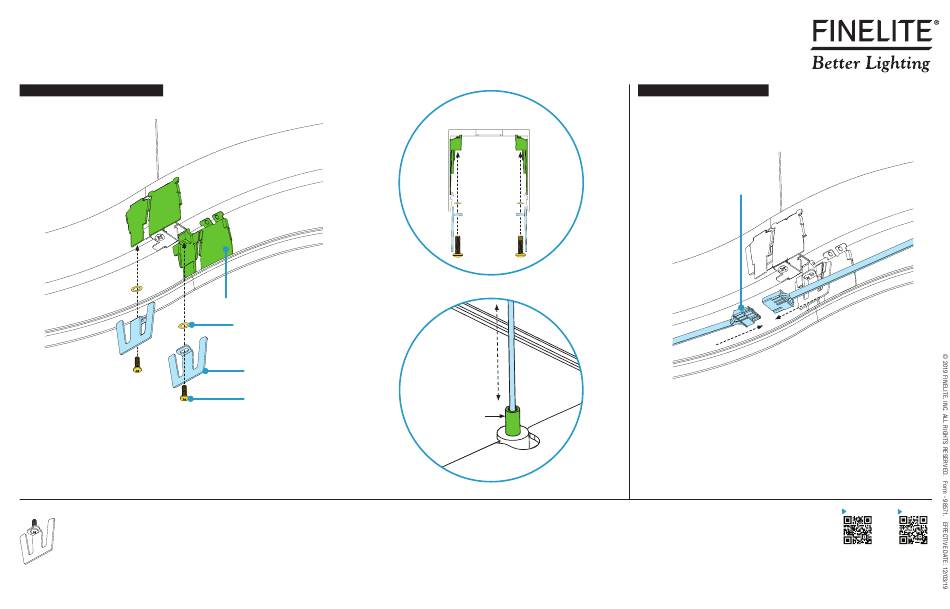

A. Secure Joint with Yoke Brackets Bottom-Up View
NOTE: Straight to curved uses the same joining method as curved to curved (shown).
•
• Before installing yoke brackets, ensure the joining ends of luminaires meet flush and square.
CRITICAL: Ensure yoke brackets properly engage with aligner sleeves.
•
• Secure joint by threading (but not yet tightening) yoke screws through yoke brackets and
washers and into the aligner sleeves.
• Level each luminaire to desired height by depressing top of grippers to adjust cable lengths.
Tighten yoke screws¹ until joint seam of luminaires is closed.
•
Yoke Bracket w/ Screw and Washer
#10-32 x 5/8" (provided)
¹ Screwdriver with 6" bit required.
Aligner Sleeve
Washer (provided)
Yoke Bracket (provided)
Yoke Screw (provided)
Cross Section View
Level Luminaires
Depress to release
locking mechanism
B. Make Electrical Connections Bottom-Up View
Plug-Together Wiring
Connect plug-together wiring.
•
Curved Simple
Joints Plug-Together
Wiring
