HP-4 Direct Curved Installation Instructions

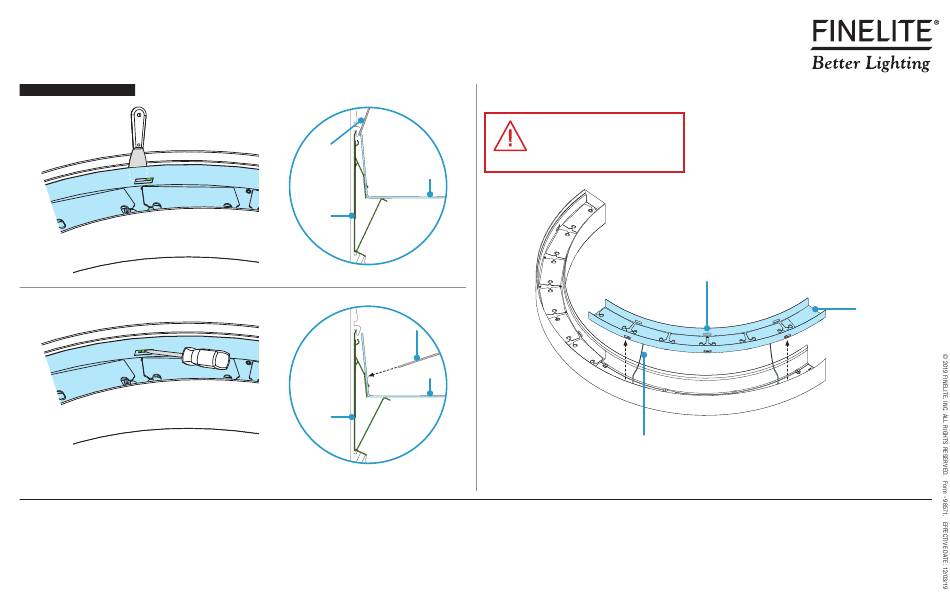

Step 3 - Opening Curved Luminaires
Release Curved Backplates
Top-Down View
Putty Knife Option
Backplate
Flathead Screwdriver Option
Backplate
Release backplates from clips by sliding the blade of a putty knife behind backplate edges.
To use a flathead screwdriver: From inside backplate, press end of screwdriver against the clip until the backplate is released.
Top-Down View
Putty
Knife
Backplate
Clip
Flathead
Screwdriver
Backplate
Clip
CAUTION: Be careful when removing backplates. They may be connected by wiring harnesses. Do NOT remove double diffusers.
Carefully remove backplates.
Keep backplates hanging with safety cables connected.
Be careful when removing backplates.
They may be connected by wiring harnesses.
Do NOT remove double diffusers.
CAUTION
Safety Cable
Backplate
Double Diffuser
(Do NOT Remove)
CONTINUED
5 of 12
