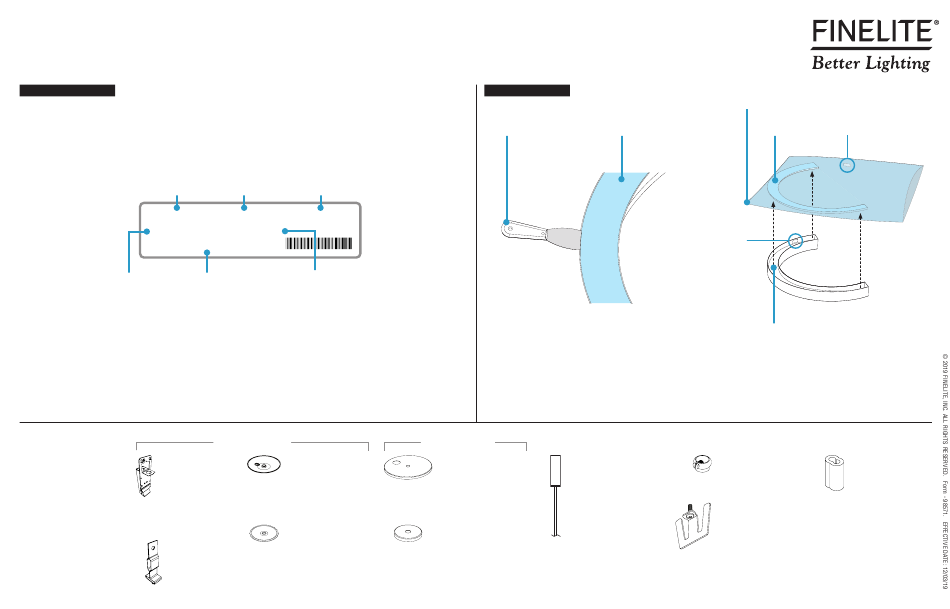

HP-4 Direct Curved Installation Instructions
Step 2 - Identification & Preparation
A. Identify Luminaires
Job Name
ABC Corporation - A12345
HP-4 D - X'
HP-4 D - 32' - S - 835 - 120V - SC
Luminaire Type Full Catalog
and/or Run Length Order ID
Identify all luminaires by their ID label that can be found on the box and inside the luminaire.
•
NOTE: Exact location of labels in these areas may vary.
•
Remove all luminaires from their box.
•
Refer to Record Drawings that can be found in the hardware kit.
•
Kitted Hardware
Finelite has provided
•
GridBox™
items listed here, with
Part# 89159
their Finelite part numbers.
Dual GridBox™
These items can be found
Part# 89199
in separate boxes shipped
Mounting & Suspension
with the luminaire.
p. 2, Step 1
Mounting Luminaires to Structure
Account for all parts
•
p. 8, Step 3
and set aside until they
are needed.
Caddy Clip
All other hardware needed
•
C1 Ceiling - Part# 94001
for this installation will be
C2 Ceiling - Part# 94020
by others. C3 Ceiling - Part# 94029
Mounting & Suspension
p. 2, Step 1
Factory Order Unique Luminaire
Number ID Number
ID: 1
STARTER
Luminaire
Section Type
Mounting Option 1
3-1/2" Canopy
Part# 89191
3-1/2" Dual Feed Canopy
Part# 89192
Mounting Luminaires to Structure
p. 7-8, Step 3
2" T-Bar Support Canopy
Part# 89193
Mounting Luminaires to Structure
p. 7, Step 3
B. Remove Diffuser Top-Down View
Putty Knife
(Outer Edge)
NOTE: Maximum width of putty knife is 2 inches.
•
1. To release diffuser, carefully slide putty knife between outer edge of diffuser and luminaire.
•
2. Then, directly across from you carefully slide putty knife between inner edge of diffuser and luminaire.
•
3. Work your way around outer edge of diffuser to fully release it from luminaire.
•
Keep diffuser inside protective bag.
•
Set aside diffuser to prevent it from getting dirty or damaged.
•
Ensure diffuser can be clearly identified back to corresponding luminaire.
•
Mounting Option 2
5" Canopy Cable Bushing
Part# 94085 Part# 94014
5" Dual Feed Canopy Aircraft Cable
Part# 94145 50" - Part# 94515-12 (Std.)
Mounting Luminaires to Structure 100" - Part# 94515-14
p. 7-8, Step 3 150" - Part# 94515-18
Mounting Luminaires to Structure
p. 7, Step 3
2" Drywall Support Canopy
Closing Luminaires
p. 11, Step 7
Part# 94017
Mounting Luminaires to Structure
p. 7, Step 3
Protective Bag
Diffuser Diffuser
ID Label
Backplate
Slip Ring w/ Set Screw
Part# 94015
Mounting Luminaires to Structure
p. 7, Step 3
Yoke Bracket
Part# 47130
Washer
Part# 94111
#10-32 x 5/8" Screw
Part# 94144
Securing Luminaire Joints
p. 10, Step 6
ID Label
Safety Crimp
Part# 94514
Closing Luminaires
p. 11, Step 7
