HP-4 Direct Curved Installation Instructions
Step 1 - Mounting & Suspension

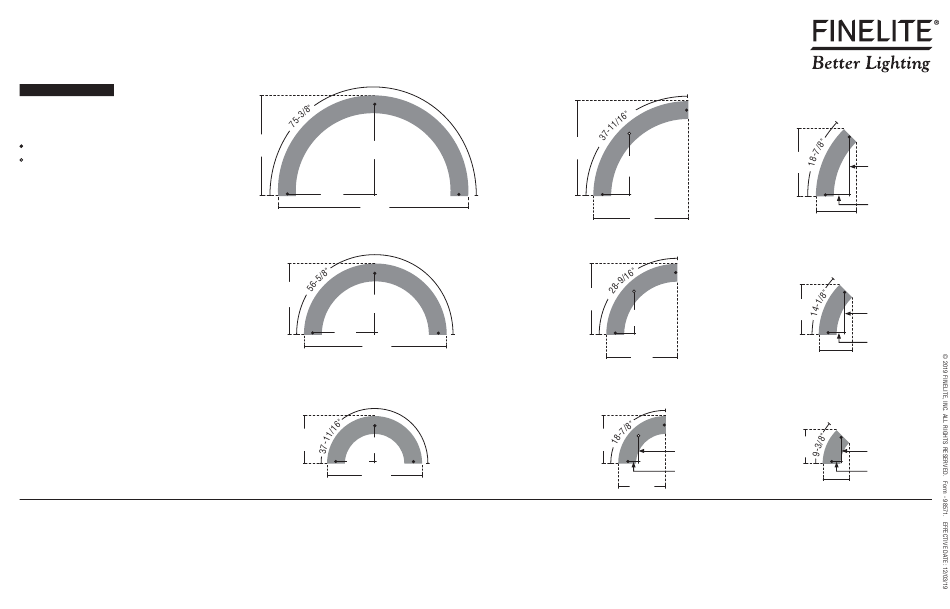

Suspension Locations
Refer to Record Drawings and building plans to determine exact
mounting, suspension points, and power feed locations.
= Suspension point
= Additional suspension point
for non-standard configurations
NOTE: These drawings are not to scale.
4D-180
24"
22"
22"
48"
3D-180
18"
16"
16"
36"
2D-180
12"
10"
10"
24"
4D-90
24"
15-9/16"
6-7/16"
24"
3D-90
18"
11-5/16"
4-11/16"
18"
2D-90
12"
7-1/16"
2-15/16"
12"
4D-45
17"
15-9/16"
6-7/16"
9-7/8"
3D-45
12-11/16"
11-5/16"
4-11/16"
8-1/8"
2D-45
8-1/2"
7-1/16"
2-15/16"
6-5/16"
3 of 12
