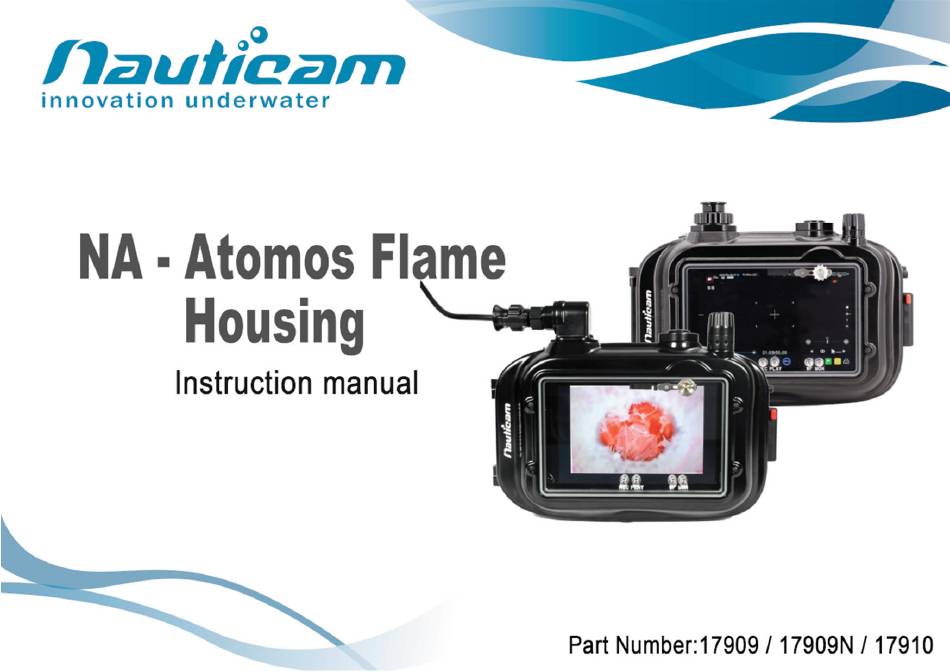

Nauticam 17909 Instruction Manual

Na atomos flame housing

Advertisement

Quick Links

1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 17909 and is the answer not in the manual?

Questions and answers

Summary of Contents for Nauticam 17909

  • Page 2 ORWARD Thank you for your purchase of a NAUTICAM housing. At NAUTICAM, we pride ourselves in the ability to recognize the requirements of professional as well as amateur underwater photographers and fulfill them through the innovative designs of our products. We strive to achieve a high level of user-friendliness by allowing stress-free installation and easy operation of all important functions of the camera.
  • Page 3: Table Of Contents

    ABLE OF ONTENTS Warranty ……………………………………………………………………………………………………………. Package Contents ………………………………………………………………………………………………. Precautions ………………………………………………………………………………………………………… Specifications …………………………………………………………………………………………………….. Identification of Parts ………………………………………………………………………………………… Opening and Locking the Housing ……………………………………………………………………… Preparation of the Housing ………………………………………………………………………………… Installing the Monitor ………………………………………………………………………………………… Connecting to the Camera Housing ……………………………………………………………………. Optional: SDI Output to Surface Monitor……………………………………………………………. Care and Maintenance ……………………………………………………………………………………….
  • Page 4: Warranty

    NAUTICAM does not hold responsibility for damage, of any nature, to any equipment used with and/or placed within our products. NAUTICAM accepts no liability for any loss of captured images or the inability to capture images even if it is due to the malfunctioning of our products.
  • Page 5: Package Contents

    (with HDMI 2.0 input) Cables are not included. Depend on Camera models, different HDMI2.0 cables are required. For 17910 Nauticam Atomos Flame Housing (with SDI input) 90163 SDI Cable in 0.85m length (for connection from SDI bulkhead and Shogun flame monitor) – (Pre-installed) 25058 M16 SDI Bulkhead 25060 SDI Cable in 0.3m length (for connection from camera to underside of SDI Bulkhead)
  • Page 6: Precautions

    O-ring(s). • Do not use lubricants from other brands with the silicone rubber O-ring on this housing, only use the lubricant provided by NAUTICAM. • Discontinue use immediately should you notice any leakage.
  • Page 7 • Do not open the product in a wet or sandy environment. Protect the interior from moisture and debris in order to prevent malfunction or leakage. • Do not store the product in an environment of high humidity. • Do not leave the housing and the monitor in direct sunlight for prolonged periods. •...
  • Page 8: Specifications

    Weight in Water -0.4Kg (17909 and 17910), -0.52kg (17909N) Depth rating 60 m 1) 17909 : Atomos Ninja Flame/Shogun Flame/Ninja Inferno/Shogun Inferno 7'' 10-bit 4K/HD SDI / HDMI Recorder/Monitor/Player 2) 17909N: Atomos Ninja Flame/Shogun Flame/Ninja Compatible Inferno/Shogun Inferno 7'' 10-bit 4K/HD SDI / HDMI...
  • Page 9: Identification Of Parts

    DENTIFICATION OF ARTS Multi Selector Lever PLAY Button WF Button MON Button REC Button...
  • Page 10 Attaching Point for Mounting Ball Moisture Alarm Window Fan LED Window HDMI or SDI cable M16 Accessory Port *17909N includes M28 Accessory Port M16 Vacuum Valve II...
  • Page 11 FAN ON/OFF Monitor ON/OFF Housing Lock Safety Button Cable Cap *17909N doesn’t include a cable.
  • Page 12 Sacrificial zinc anode Attaching Point for Mounting Ball...
  • Page 13: Opening And Locking The Housing

    PENING AND OCKING THE OUSING To open the housing: 1. Press the housing lock safety 2. Turn the housing lock 270°, button. counter clockwise, until the lock reaches the “Open” position as shown.
  • Page 14 To lock the housing: 4. Turn the housing lock 270° 3. Close the housing while the clockwise until the lock reaches housing lock is in the “Open” the “lock” position as shown. position. Confirm that the white indicator line on the safety button is visible.
  • Page 15: Preparation Of The Housing

    REPARATION OF THE OUSING 1. After verifying that the main O-ring is in 4. Setting up the moisture alarm: good condition, lightly coat it with the lubricant provided. 2. Make sure the O-ring groove located in the front part of the housing is free from any foreign material;...
  • Page 16 Battery Installation: Press Press Insert the battery as shown above and To remove the battery, press the metal then press down the battery. plate as indicated and the battery will pop out. *Use only recommended battery with this product...
  • Page 17 Switch the alarm on. The LED light Test the alarm by connecting the will flash blue once and turn blue two wires near the bottom of the for five seconds indicating the housing with a damp cotton bud; battery is normal. Then it goes into the alarm should start giving out a flashing blue light standby mode.
  • Page 18 Vacuum valve: Vacuum valve is pre-install to the housing for conducting a vacuum seal test. Please refer to the manual of the vacuum valve for details of the operation. LED status identification: On start up LED indicator Status Flash “Blue” light once Indicates a 2nd generation PCB Battery is normal, goes into flashing "Blue"...
  • Page 19 After start up LED indicator Status Standby mode. The moisture alarm is active, Flashing "Blue" light and the system is ready for vacuum indication whenever a vacuum is detected. Flashing "Red" light Moisture is detected. with beeping sound Some vacuum is detected, target vacuum level Flashing "Yellow"...
  • Page 20 5. Setting up fans: To remove the battery, press the square Then install Sony NP-F570 battery button as indicated. into the battery compartment on the housing.
  • Page 21: Installing The Monitor

    NSTALLING THE ONITOR To install the monitor into to the housing: 2. Connect the HDMI cable with 1. Turn the three locking levers in the "L" connector to the monitor’s direction as shown. HDMI IN socket as shown above or HD-SDI cable to the monitor’s SDI IN socket.
  • Page 22 3. Place the monitor inside the housing and secure the monitor by turning the three locking levers towards the monitor as shown.
  • Page 23: Connecting To The Camera Housing

    Connect ONNECTING TO THE AMERA OUSING For installing the standard HDMI bulkhead with M16 thread or M16 SDI bulkhead: 1. Unscrew the M16 plug from the 2. Tighten the HDMI or HD-SDI threaded hole with a coin. bulkhead with a spanner.
  • Page 24 Connect the HDMI /HD-SDI cable to the Connect the HDMI / HD-SDI cable to HDMI /HD-SDI bulkhead. the camera's HDMI / HD-SDI socket.
  • Page 25 For installing the custom HDMI bulkhead to use with extension: 1. Unscrew the M16 plug from 2. Tighten the socket extension to the the accessory port with a coin. camera housing with a spanner.
  • Page 26 3. Insert the HDMI cable through the Tighten the HDMI bulkhead by threaded hole from inside of the turning the threaded ring on the housing, and connect the HDMI socket extension. cable to the HDMI bulkhead.
  • Page 27 Connect the HDMI cable to the camera's HDMI connector.
  • Page 28 To connect the monitor housing to HDMI / SDI bulkhead: 2. Unscrew the cap off the HDMI 1. Unscrew the cap off the HDMI /SDI /HD-SDI cable, and Align and bulkhead. plug the HDMI /HD-SDI cable in the HDMI /HD-SDI bulkhead. Tighten connection turning the threaded ring on the...
  • Page 29: Optional: Sdi Output To Surface Monitor

    UTPUT TO URFACE ONITOR Nauticam Atomos Flame Housing (with SDI input) features SDI Pass-through, and HDMI to HD-SDI cross convert, which allow a video signal to be sent topside to a director’s monitor. Attach and Tighten the M16 SDI 2. Connect the SDI cable to the SDI...
  • Page 30: Care And Maintenance

    O-ring with the provided lubricant before reinstalling it in the groove. A damaged O-ring should be discarded immediately and replaced only with one that is provided by NAUTICAM. • Replace the main O-ring annually. It is recommended that you ship the housing to our...
  • Page 31: Optional Accessories

    NA-A7S/A7II/A9 NA-GH4/GH5S/V P.N. 17954 P.N. 16226 P.N. 17919 P.N. 17955 Tripod plate for NA- Mounting Brackets for Monitor Hood for Nauticam Mounting ball for NA- A7S/GH4/A7II/GH5/A9 Shogun/Flame on Epic LT Atomos /Shogun/Flame Shogun/Flame housing Housing Housing...
  • Page 32 HDMI 1.4 Input P.N. 16243 P.N. 25075 P.N. 25033 HDMI A-D Cable in o.5m Length Standard HDMI bulkhead HDMI (D-A) Cable in 190mm Length for for RED DSMC2/C200/EVA1 with M16 thread NA-GH5/G9 (for internal connection from (Internal Cable) HDMI bulkhead to camera) HDMI 2.0 Input P.N.
  • Page 33 P.N. 25085 P.N. 25084 M28C1R200-M28A1R170 HDMI 2.0 M24D1R270-M28A1R170 HDMI 2.0 Cable Cable (for NA-EM1X to use with Ninja V (for NA-Z7V to use with Ninja V housing) housing) SDI Output P.N. 25058 P.N. 25059 P.N. 25060 M16 SDI bulkhead SDI cable extension adaptor SDI cable in 0.4m length...
  • Page 34 P.N. 25064 / 25065 P.N. 25062/25063 SDI surface monitor cable in 15m/45m SDI cable in 5m/30m length length (for connection between SDI (for connection from SDI Bulkhead to Bulkheads) Surface Monitor on land)
