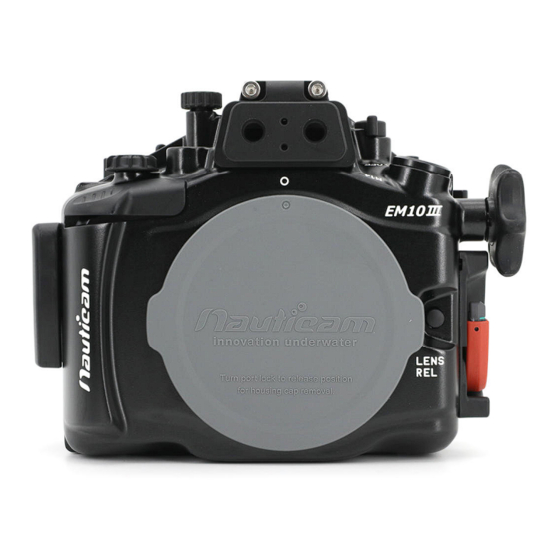

Summary of Contents for Nauticam NA-EM10III
- Page 2 ORWARD Thank you for your purchase of a NAUTICAM housing. At NAUTICAM, we pride ourselves in the ability to recognise the requirements of professional as well as amateur underwater photographers and fulfill them through the innovative designs of our products. We strive to achieve a high level of user-friendliness by allowing stress-free installation and easy operation of all important functions of the camera.
-
Page 3: Table Of Contents
ABLE OF ONTENTS Warranty ……………………………………………………………………………………………………………. Precautions ………………………………………………………………………………………………………… Package Contents ………………………………………………………………………………………………. Specifications …………………………………………………………………………………………………….. Identification of Parts ………………………………………………………………………………………… Opening and Locking the Housing ……………………………………………………………………… Preparation of the Housing ………………………………………………………………………………… Installing the Camera …………………………………………………………………………………………. Switching between Viewfinder and Monitor ……………………………………………………… Mounting the Port ……………………………………………………………………………………………… Changing the Viewfinder ……………………………………………………………………………………. -
Page 4: Warranty
NAUTICAM does not hold responsibility for damage, of any nature, to any equipment used with and/or placed within our products. NAUTICAM accepts no liability for any loss of captured images or the inability to capture images even if it is due to the malfunctioning of our products. -
Page 5: Precautions
O-ring(s). • Do not use lubricants from other brands with the silicone rubber O-ring on this housing, only use the lubricant provided by NAUTICAM. • Discontinue use immediately should you notice any leakage. - Page 6 • Do not open the product in a wet or sandy environment. Protect the interior from moisture and debris in order to prevent malfunction or leakage. • Do not store the product in an environment of high humidity. • Do not leave the housing and the monitor in direct sunlight for prolonged periods. •...
-
Page 7: Package Contents
ACKAGE ONTENTS • NA-EM10III housing • A pair of handle brackets with screws • Shutter release extension • Spare silicone rubber O-ring for housing • O-ring remover • CR2032 battery • Lubricant • Set of Allen keys • Instruction manual... -
Page 8: Specifications
PECIFICATIONS Housing body: Aluminium alloy Construction Surface treatment: Hard anodised Display window: Abrasion resistant polycarbonate Width: 184mm Dimensions Height: 138mm Depth: 100mm Weight Approx. 1.06kg Buoyancy Slightly negative Depth rating 100 metres Port mount Compatible Olympus OM-D E-M10 Mark III camera cameras Vacuum system CR 2032 x1pc (Operating time: approx.. -
Page 9: Identification Of Parts
DENTIFICATION OF ARTS M10 strobe mounting base Mode dial Rear dial Movie lever Fn2 button Housing lock Optical fibre mount safety button Port alignment index Housing lock Front dial Threaded holes for handle brackets Shutter release lever... - Page 10 Accessory coldshoe On/off / Flash up lever Shortcut button M14 accessory port Threaded holes for handle brackets Zoom/focus knob Port lock safety button Port lock lever Lens release button...
- Page 11 0.66x viewfinder Monitor lever Fn1 button Menu button Info button Up button Left button OK button Right button Down button Playback button Erase button Moisture alarm window...
- Page 12 Sacrificial zinc anode 1/4” – 20UNC tripod socket* *The maximum length of screws that can be used with the tripod sockets is 4mm.
-
Page 13: Opening And Locking The Housing
PENING AND OCKING THE OUSING To open the housing: Press the housing lock safety Turn the housing lock anti- button. clockwise for 270°, until the lock reaches the “Open” position as shown... - Page 14 To lock the housing: Close the housing while the 2. Turn the housing lock clockwise housing is in the “Open” position. for 270°, until the lock reaches the “lock” position as shown. Confirm that the white indicator line on the safety button is visible.
-
Page 15: Preparation Of The Housing
Prepar REPARATION OF THE OUSING 1. After verifying that the main O-ring is in 4. Setting up the moisture alarm: good condition, lightly coat it with the lubricant provided. 2. Make sure the O-ring groove located in the front part of the housing is free from any foreign material;... - Page 16 Battery Installation: Press Press To remove the battery, press the metal Insert the battery as shown above and plate as indicated and the battery will pop then press down the battery. out.
- Page 17 2. Switch the alarm on. The LED 3. Test the alarm by connecting the light will flash blue once and turn two wires near the bottom of the blue for five seconds indicating housing with a damp cotton bud; the battery is normal. Then it the alarm should start giving out goes into flashing blue light a repeating “beep”...
- Page 18 Optional vacuum valve: Vacuum valve can be attached to the housing via one of the accessory port for conducting a vacuum seal test. Please refer to the manual of the vacuum valve for details of the operation. LED status identification: On start up LED indicator Status...
- Page 19 After start up LED indicator Status Standby mode. The moisture alarm is active, Flashing "Blue" light and the system is ready for vacuum indication whenever a vacuum is detected. Flashing "Red" light Moisture is detected. with beeping sound Some vacuum is detected, target vacuum level Flashing "Yellow"...
-
Page 20: Installing The Camera
NSTALLING THE AMERA To install the camera into to the housing: 2. Tilt the LCD monitor of the 1. Disengage the red camera saddle camera upwards, then attach lock by pressing it inwards. Then remove the camera saddle from the saddle to the camera by housing sliding tightening the screw to the... - Page 21 3. Lift the ON/OFF lever and Mode 4. Then install the camera by sliding dial upwards. the attached saddle along the rail in the housing until it cannot go in any further.
- Page 22 6. Gently push the mode dial 5. Gently push the ON/OFF lever downwards until it cannot go any downwards ensuring further. actuator correctly engages with the ON/OFF lever of the camera. 7. Confirm that all the controls of the housing are correctly engaged.
-
Page 23: Switching Between Viewfinder And Monitor
Connect WITCHING BETWEEN IEWFINDER AND ONITOR By setting the "EVF Auto Switch" function of the EM-10III camera to Off allows switching between monitor display and EVF display by pressing the Monitor button. To disable this function, press and hold the Monitor button for a few seconds, the "EVF Auto Switch"... -
Page 24: Mounting The Port
Connect OUNTING THE Please refer to the NAUTICAM system port chart for a range of compatible ports: 1. Remove the O-ring from the port, inspect for any damage and lightly coat it with the provided lubricant before placing it back into its groove. - Page 25 Connect 4. Turn the port locking lever to 5. Lift housing cap. the release position as shown.
- Page 26 Connect 6. Align the Port mounting indices 8. Lock the port into place by of the port and the housing. turning the port locking lever to the inward position. To ensure 7. Gently push the port into the that the port is securely port opening of the housing, mounted, confirm that the...
-
Page 27: Changing The Viewfinder
Connect HANGING THE IEWFINDER In order that user can change to a preferred viewfinder easily, the 0.66x viewfinder which comes with the housing is designed so that it can be removed and re-installed by the following simple steps described below. To remove the viewfinder: Push 1. - Page 28 Connect To re-install the viewfinder: Lightly coat the O-rings on the outer periphery of the viewfinder body with lubricant. 2. Push the viewfinder from the 1. Align the viewfinder with the outside of the housing until it sleeve in the display window. cannot go in any further.
-
Page 29: Care And Maintenance
O-ring with the provided lubricant before reinstalling it in the groove. A damaged O-ring should be discarded immediately and replaced only with one that is provided by NAUTICAM. • Replace the main O-ring annually. It is recommended that you ship the housing to factory... -
Page 30: Optional Accessories
PTIONAL CCESSORIES P.N. 25624 P.N. 32204 P.N. 32205 M14 Vacuum Valve II Nauticam 180˚ straight Nauticam 45˚ viewfinder for (Pushbutton Release) viewfinder for MIL housings MIL housings P.N. 71207 P.N. 71208 P.N. 71311 Flexitray II with left handle Adjustable right handle II...
