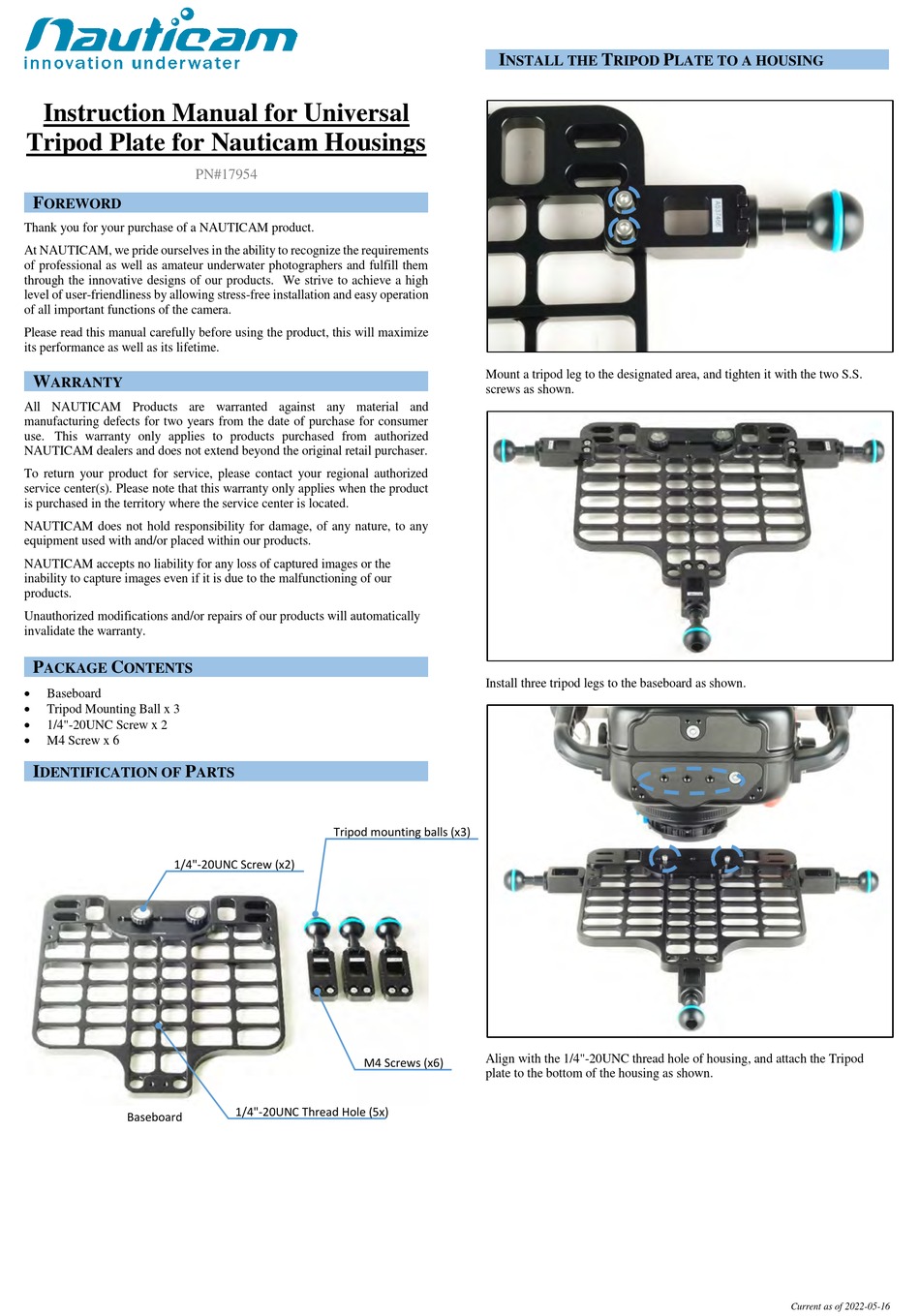

Nauticam 17954 Instruction Manual

Instruction Manual for Universal
Tripod Plate for Nauticam Housings
PN#17954
F
OREWORD
Thank you for your purchase of a NAUTICAM product.
At NAUTICAM, we pride ourselves in the ability to recognize the requirements
of professional as well as amateur underwater photographers and fulfill them
through the innovative designs of our products. We strive to achieve a high
level of user-friendliness by allowing stress-free installation and easy operation
of all important functions of the camera.
Please read this manual carefully before using the product, this will maximize
its performance as well as its lifetime.
W
ARRANTY
All NAUTICAM Products are warranted against any material and
manufacturing defects for two years from the date of purchase for consumer
use. This warranty only applies to products purchased from authorized
NAUTICAM dealers and does not extend beyond the original retail purchaser.
To return your product for service, please contact your regional authorized
service center(s). Please note that this warranty only applies when the product
is purchased in the territory where the service center is located.
NAUTICAM does not hold responsibility for damage, of any nature, to any
equipment used with and/or placed within our products.
NAUTICAM accepts no liability for any loss of captured images or the
inability to capture images even if it is due to the malfunctioning of our
products.
Unauthorized modifications and/or repairs of our products will automatically
invalidate the warranty.
P C
ACKAGE ONTENTS

Baseboard

Tripod Mounting Ball x 3

1/4"-20UNC Screw x 2

M4 Screw x 6
I P
DENTIFICATION OF ARTS
1/4"-20UNC Screw (x2)
Baseboard
Tripod mounting balls (x3)
M4 Screws (x6)
1/4"-20UNC Thread Hole (5x)
I T
NSTALL THE RIPOD
Mount a tripod leg to the designated area, and tighten it with the two S.S.
screws as shown.
Install three tripod legs to the baseboard as shown.
Align with the 1/4"-20UNC thread hole of housing, and attach the Tripod
plate to the bottom of the housing as shown.
P
LATE TO A HOUSING
Current as of 2022-05-16
