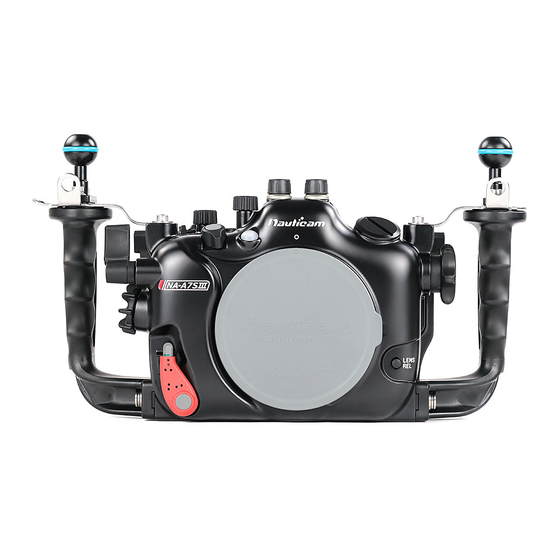

NA - A7SIII For Sony A7SIII Camera with HDMI 2.0 support PN 17428 User Manual Housing FF- MIL Introduction Package Contents Important Instructions Part Names and Functions Opening the housing Closing the housing Preparation for Use Recommended Accessory Care/Storage Warranty Speci cations... -
Page 2: Introduction
PACKAGE CONTENTS Make sure that you have all the included items listed below before using this product. If some items are missing or damaged, contact your local Nauticam dealer. NA-A7SIII Padded Travel Case... -
Page 3: Important Instructions
O-ring renewal between the atmosphere and inside the and port change. housing. Only the accesories speci ed by Use only Nauticam lubricant on silicone Nauticam must be used. Third-party rubber O-ring. accessories may result in malfunctions or damage to the product. -
Page 4: Part Names And Functions
PART NAMES AND FUNCTIONS Rear View C3 button Menu button Housing unlock button Fn button AEL/Image index button C1 button Multi selector Display button ISO button Control wheel - bottom Drive mode button C4/Delete button Moisture alarm window Multi selector - center Control wheel - center... - Page 5 PART NAMES AND FUNCTIONS Top + Front Views M24 Accessory port Optical ber cable connection Mode dial Main Switch C2 button Exposure compensation lock button Exposure compensation dial Rear dial M14 Accessory port Accessory mounting ball AF illuminator/Visible light sensor Port lock safety button Port locking lever Lens release button...
- Page 6 PART NAMES AND FUNCTIONS Back + Side Views 1/4” Threaded tripod holes Zinc Anodes Playback lever Zoom/Focus dial AF-ON/Enlarge lever Shutter release lever REC button Front dial...
-
Page 7: Opening The Housing
OPENING THE HOUSING * drawings as illustrations only depress housing unlock button turn housing lock outward lift up the back housing... -
Page 8: Closing The Housing
CLOSING THE HOUSING * drawings as illustrations only Housing Lock - Lock before closing the housing, clean and lubricate the main O-ring make sure nothing is caught between front and back housing and that they are fully aligned before locking turn housing lock inward until you hear and feel it click into place housing locked in place securely... -
Page 9: Preparation For Use
PREPARATION FOR USE * drawings as illustrations only Installing the Camera - housing tray attachment unlock camera tray lever and remove the tray from the housing attach the camera tray by tightening the tray screw into the tripod socket of the camera * lift up the Photo/movie lever each time before installing the camera, also pull out the zoom/focus knob if... - Page 10 PREPARATION FOR USE * drawings as illustrations only Port Mounting depress safety button and rotate anti-clockwise lubricant the port O-ring before mounting align index mark push port assembly straight in rotate locking lever clockwise to lock...
- Page 11 PREPARATION FOR USE * drawings as illustrations only Coating housing O-ring Main O-ring remove the main O-ring using an O-ring remover clean the O-ring groove with a cloth and ensure that it is free from salt or other foreign materials lightly coat it with provided lubricant return the main O-ring by slowly pressing from one corner to the whole perimeter...
- Page 12 PREPARATION FOR USE * drawings as illustrations only Setting up moisture alarm CR2032 Battery Alarm ON/OFF remove battery press the battery down until it insulation lm click into place switch on the alarm test the alarm - the moisture alarm - connect the wires with a window will ash in...
- Page 13 PREPARATION FOR USE * drawings as illustrations only Changing lens/port without opening the housing If using with vacuum valve : remove the cap from the vacuum valve and press the red button to release pressure before unlocking port lock If using without vacuum valve, please follow from step 2 unlock port lock and remove port assembly...
-
Page 14: Recommended Accessory
RECOMMENDED ACCESSORY * drawings as illustrations only Vacuum valve system remove the plug of M16 accessory port from the housing remove the cap from the vacuum valve hand pump slightly lubricate the o-ring and vacuum valve tighten the vacuum valve to the housing with the tool provided accesory port on housing... -
Page 15: Care/Storage
CARE/STORAGE Soak the housing system in fresh water Operate all controls and buttons at after salt water usage least 3 times while immersed in fresh water We recommand cleaning and inspecting Protect the housing with robust and the main O-ring each time after diving for shock-proof travel case during trans- any damage and every time the housing portation. -
Page 16: Warranty
NAUTICAM accepts no liability for any damage to and defects in the housing caused by improper use and/or poor maintenance; it is the responsibility of the own- er to carefully follow the instructions in our manuals. - Page 17 *Support RAW 16bit 4.2K (4264 x 2408) up to 59.94p output Monitor options 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” (excl. HDMI 2.0 cable) HDMI connectivity accessories ( 1.4 ) 25033 Standard HDMI bulkhead with M16 thread...
-
Page 18: Speci Cations
Nauticam Internationl Ltd. Rm 2203, CCT Telecom Bldg, 11 Wo Shing St, Fo Tan, Hong Kong Tel. +852 - 26902711 Fax. +852 - 26909778 URL. www.nauticam.com Gallery. www.nauticam.smugmug.com...
