Summary of Contents for Nauticam NA-A7RV
-
Page 1: Table Of Contents

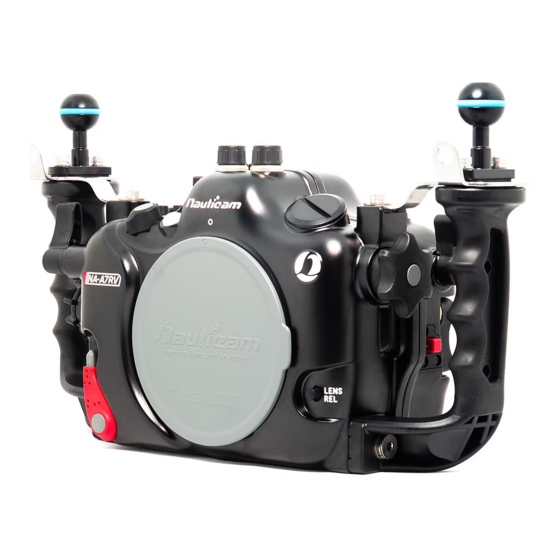

NA - A7RV For Sony Alpha A7RV Mirrorless Camera PN 17433 User Manual Housing FF- MIL Introduction Package Contents Important Instructions Part Names and Functions Opening the housing Closing the housing Preparation for Use Optional Accessories Care/Storage Warranty Specifi cations Dec, 2022... -
Page 2: Introduction
PACKAGE CONTENTS Make sure that you have all the included items listed below before using this product. If some items are missing or damaged, contact your local Nauticam dealer. NA-A7RV Padded Travel Case... -
Page 3: Important Instructions
O-ring renewal between the atmosphere and inside the and port change. housing. Only the accesories specifi ed by Use only Nauticam lubricant on silicone Nauticam must be used. Third-party rubber O-ring. accessories may result in malfunctions or damage to the product. -
Page 4: Part Names And Functions
PART NAMES AND FUNCTIONS Rear View C3 button Menu button Housing unlock button C1 button Fn button AEL/Image index button Multi selector Display button ISO button Control wheel - bottom Drive mode button C4/Delete button Moisture alarm window Multi selector - center Control wheel - center... - Page 5 PART NAMES AND FUNCTIONS Top + Front Views M24 Accessory port Optical fi ber cable connection M10 Accessory port M14 Accessory port Main switch C2 button Exposure compensation lock Still/movie/S&Q lever Exposure compensation dial Rear dial Mode dial Accessory mounting ball AF illuminator/Visible light sensor Port lock safety button Port locking lever...
- Page 6 PART NAMES AND FUNCTIONS Back + Side Views 1/4” Threaded tripod holes Sacrifi cial zinc anodes Playback lever Zoom/Focus dial AF-ON/Enlarge lever Shutter release lever REC button Front dial...
- Page 7 M24 Adaptor for HDMI 2.0 cable 25094 M24A3R140-M28A1R170 HDMI 2.0 cable M5 Accessory ports 25228 M5 Strobe mounting ball M5 Threaded holes 25218 Mounting ball set for tripod legs 1/4” -20 mounting threads 17954 Universal tripod plate 17960 Universal Quadra-Pod Plate for Nauticam Housings...
-
Page 8: Opening The Housing
OPENING THE HOUSING * drawings as illustrations only depress housing unlock button turn housing lock outward lift up the back housing... -
Page 9: Closing The Housing
CLOSING THE HOUSING * drawings as illustrations only Housing Lock - Lock before closing the housing, clean and lubricate the main O-ring make sure nothing is caught between front and back housing and that they are fully aligned before locking turn housing lock inward until you hear and feel it click into place housing locked in place securely... -
Page 10: Preparation For Use
PREPARATION FOR USE * drawings as illustrations only Installing the Camera - housing tray attachment unlock camera tray lever and remove the tray from the housing attach the camera tray by tightening the tray screw into the tripod socket of the camera * tilt the fl... - Page 11 PREPARATION FOR USE * drawings as illustrations only Port Mounting depress safety button and rotate anti-clockwise lubricant the port O-ring before mounting align index mark push port assembly straight in rotate locking lever clockwise to lock...
- Page 12 PREPARATION FOR USE * drawings as illustrations only Coating housing O-ring Main O-ring remove the main O-ring using an O-ring remover clean the O-ring groove with a cloth and ensure that it is free from salt or other foreign materials lightly coat it with provided lubricant return the main O-ring by slowly pressing from one corner to the whole perimeter...
- Page 13 PREPARATION FOR USE * drawings as illustrations only Setting up moisture alarm CR2032 Battery Alarm ON/OFF remove battery press the battery down until it insulation fi lm click into place switch on the alarm test the alarm - the moisture alarm - connect the wires with a window will fl...
- Page 14 PREPARATION FOR USE * drawings as illustrations only Changing lens/port without opening the housing If using with vacuum valve : remove the cap from the vacuum valve and press the red button to release pressure before unlocking port lock If using without vacuum valve, please follow from step 2 unlock port lock and remove port assembly...
-
Page 15: Optional Accessories
OPTIONAL ACCESSORIES * drawings as illustrations only Vacuum valve system remove the plug of M14 accessory port from the housing remove the cap from the vacuum valve slightly lubricate the o-ring and hand pump tighten the vacuum valve to the vacuum valve housing with the tool provided accesory port... - Page 16 OPTIONAL ACCESSORIES * drawings as illustrations only Strobe Mounting Ball Installing M5 Strobe Mounting Ball - RECOMMENDED M5 screw remove M5 screw with the allen key provided in the screw #25228 M5 Strobe mounting ball directing onto housing package the M5 thread * the anti-corrosion screw may also be Anti-corrosion unscrewed while removing M5 screw, if this...
- Page 17 OPTIONAL ACCESSORIES fi rstly remove the pre-installed 0.66x viewfi nder gently push the 0.66x viewfi nder from the inside of from the housing by removing the retainer o-ring the housing inside rear housing remove the retainer o-ring from the viewfi nder align the viewfi...
-
Page 18: Care/Storage
CARE/STORAGE Soak the housing system in fresh water Operate all controls and buttons at after salt water usage least 3 times while immersed in fresh water We recommand cleaning and inspecting Protect the housing with robust and the main O-ring each time after diving for shock-proof travel case during trans- any damage and every time the housing portation. -
Page 19: Warranty
NAUTICAM accepts no liability for any damage to and defects in the housing caused by improper use and/or poor maintenance; it is the responsibility of the own- er to carefully follow the instructions in our manuals. -
Page 20: Specifications
25626 M14 Offset Connector with Vacuum Valve II (Pushbutton Release) In air 2.70 kg 17433UK Conversion kit for NA-A7RV to use with A7IV camera Buoyancy in water negative 0.30 kg (w/ camera & battery) 25221 M10 strobe mounting ball for housing... - Page 21 Monitor options ( 2.0 ) Monitor options ( 1.4 ) 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 17923 NA-Shinobi-H Housing for Atomos Shinobi 5.2” 4K HDMI Monitor 17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5”...
- Page 22 Nauticam Internationl Ltd. Rm 2203, CCT Telecom Bldg, 11 Wo Shing St, Fo Tan, Hong Kong Tel. +852 - 26902711 Fax. +852 - 26909778 URL. www.nauticam.com Gallery. www.nauticam.smugmug.com...
