    NA - SHINOBI-H / NA - SINOBI-S For Atomos Shinobi 5.2” 4K HDMI Monitor with HDMI 1.4 Input / SDI Input PN 17923 / 17924 User Manual Housing Monitor Introduction Package Contents Important Instructions Part Names and Functions Opening the Housing Closing the Housing Setup Options Cable Connection...
  • Page 2: Introduction

    PACKAGE CONTENTS Make sure that you have all the included items listed below before using this product. If some items are missing or damaged, contact your local Nauticam dealer. NA - SHINOBI-H (HDMI) NA - SHINOBI-S (SDI)
  • Page 3: Important Instructions

    O-ring renewal between the atmosphere and inside the and port change. housing. Only the accesories specified by Use only Nauticam lubricant on silicone Nauticam must be used. Third-party rubber O-ring. accessories may result in malfunctions or damage to the product.
  • Page 4: Part Names And Functions

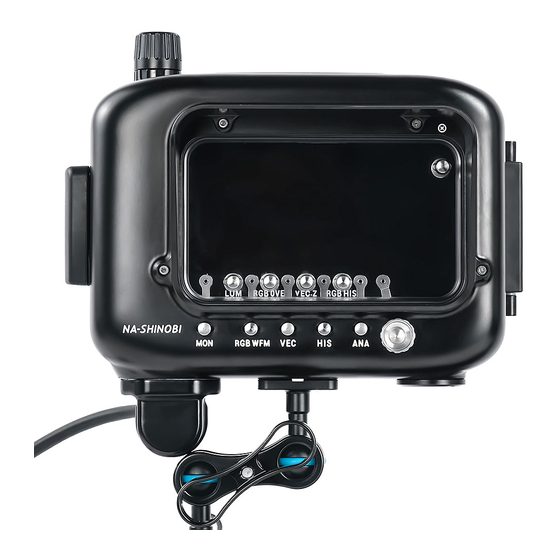

    PART NAMES AND FUNCTIONS Rear View 10 11 RGB Overlay button Luma Waveform button Monitor button Close button Vectorscope zoom button RGB Histogram button Analysis button Settings lever RGB Parade button Vectorscope button Histogram button...
  • Page 5 PART NAMES AND FUNCTIONS Front + Bottom Views Power button Zinc Anodes M25 Accessory port HDMI / SDI cable NAV0014 Mounting ball with screws...
  • Page 6 PART NAMES AND FUNCTIONS Top + Side Views M16 Accessory port Moisture alarm window Housing unlock button...
  • Page 7: Opening The Housing

    OPENING THE HOUSING * drawings as illustrations only depress housing unlock button turn housing lock latch anti-clockwise to open the housing flip open the back housing when lock latch is aligned to ‘open’ position...
  • Page 8: Closing The Housing

    CLOSING THE HOUSING * drawings as illustrations only before closing the housing, clean and lubricate the main O-ring make sure nothing is caught between front and back housing and that they are fully aligned before locking main O-ring insert the housing shaft into the shaft hole and then rotate the lock latch clockwise until you hear and feel it click into place...
  • Page 9: Setup Options

    SETUP OPTIONS - HDMI * drawings as illustrations only HDMI IN 17923 NA - Shinobi-H Housing for Atomos Shinobi 5.2” 4K HDMI Monitor with HDMI 1.4 input M25-M16 25071 Step Down Adapter HDMI 1.4 (A-D) Cable in 0.75m length 25033 Standard HDMI Bulkhead with M16 thread 25081...
  • Page 10 SETUP OPTIONS - SDI * drawings as illustrations only SDI IN 17924 NA - Shinobi-S Housing for Atomos Shinobi 5.2” 4K HDMI Monitor with SDI input M25-M16 25096 Step Down Adapter SDI Cable in 0.75m length M16 SDI Bulkhead 25060 SDI Cable in 0.40m length SDI IN + SDI OUT 25060...
  • Page 11: Cable Connection

    CABLE CONNECTION - HDMI IN * drawings as illustrations only HDMI Cable to Monitor Connector turn the two locking levers in the direction as shown connect the HDMI cable to the monitor HDMI connector then place the monitor inside the housing secure the monitor by turning the two locking levers towards the monitor...
  • Page 12 CABLE CONNECTION - SDI IN * drawings as illustrations only SDI Cable to Monitor Connector turn the two locking levers in the direction as shown place the monitor inside the housing then secure the monitor by turning the two locking levers towards the monitor connect the SDI cable to the monitor SDI connector...
  • Page 13 CABLE CONNECTION - SDI OUT * drawings as illustrations only SDI Surface Cable to Monitor Housing *Please note that M16 SDI Bulkhead, 25060 SDI cable and SDI surface cable is not included in the package unscrew the M25 plug from the accessory port with a coin and remove the caps of M16 SDI Bulkhead and SDI surface cable...
  • Page 14 CABLE CONNECTION - SDI OUT * drawings as illustrations only 25060 SDI Cable to Shinobi-S Monitor Connector turn the two locking levers in the direction as shown place the monitor inside the housing then secure the monitor by turning the two locking levers towards the monitor wrap the cable around the battery and connect the cable...
  • Page 15 CABLE CONNECTION - TO CAMERA HOUSING * drawings as illustrations only For Both HDMI + SDI Cable Bulklhead Extension Ring M24 - M16 Adpater remove the caps of HDMI/SDI cable and bulkhead connect the internal cable to the bulkhead (M24-M16 adapter if needed) as shown connect the bulkhead onto camera housing connect the internal cable to the camera connector...
  • Page 16: Preparation For Use

    PREPARATION FOR USE * drawings as illustrations only Coating housing O-ring Main O-ring remove the main O-ring using an O-ring remover clean the O-ring groove with a cloth and ensure that it is free from salt or other foreign materials lightly coat it with provided lubricant return the main O-ring by slowly pressing from one corner to the whole perimeter...
  • Page 17 PREPARATION FOR USE * drawings as illustrations only Setting up moisture alarm Alarm ON/OFF CR2032 Battery remove battery press the battery down until it insulation film click into place switch on the alarm test the alarm - the moisture alarm - connect the wires with a window will flash in dampened cotton bud;...
  • Page 18: Pre-Installed M16 Vacuum Valve Ii

    PRE-INSTALLED M16 VACUUM VALVE II * drawings as illustrations only Vacuum valve system remove the cap from the pre-installed vacuum valve hand pump connect hand pump to the valve vacuum valve moisture alarm window pump several times until it reaches the target vacuum level close vacuum valve cap Moisture alarm window colour indication :...
  • Page 19: Care/Storage

    CARE/STORAGE Soak the housing system in fresh water Operate all controls and buttons at after salt water usage least 3 times while immersed in fresh water We recommand cleaning and inspecting Protect the housing with robust and the main O-ring each time after diving for shock-proof travel case during trans- any damage and every time the housing portation.
  • Page 20: Warranty

    NAUTICAM accepts no liability for any damage to and defects in the housing caused by improper use and/or poor maintenance; it is the responsibility of the own- er to carefully follow the instructions in our manuals.
  • Page 21: Specifications

    SPECIFICATIONS NA-SHINOBI-H NA-SHINOBI-S Atomos Shinobi 5” 4K HDMI Monitor, Atomos Shinobi SDI 5” HDR Pro Monitor Atomos Shinobi SDI 5” HDR Pro Monitor Construction Construction Housing body Hard Anodized Aluminium Alloy Housing body Hard Anodized Aluminium Alloy Display window Abrasion Resistant Polycarbonate...
  • Page 22: Hdmi Cable Compatibility

    HDMI CABLE COMPATIBILITY 25036 and 25046 are both included in NA-SHINOBI-H package 25036 HDMI (D-C) Cable in 190mm length Compatible Camera Nikon D500 D750 D7500 Canon 5DIV 5DSR 6DII 7DII 25046 HDMI (D-D) Cable in 200mm length Compatible Camera Sony...
  • Page 23 Nauticam Internationl Ltd. Rm 2203, CCT Telecom Bldg, 11 Wo Shing St, Fo Tan, Hong Kong Tel. +852 - 26902711 Fax. +852 - 26909778 URL. www.nauticam.com Gallery. www.nauticam.smugmug.com...
