Page 1: Table Of Contents

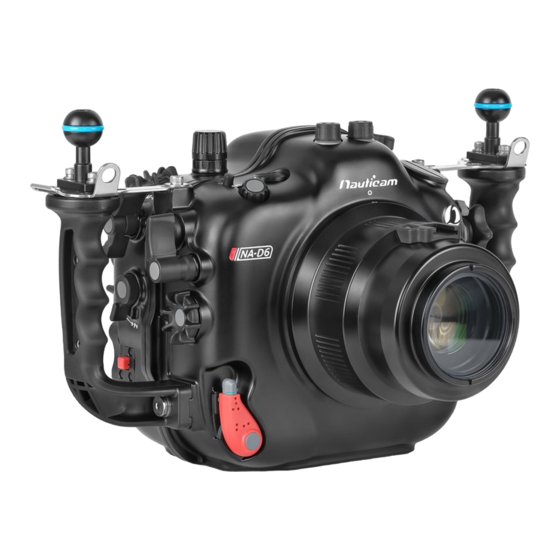

NA - D6 For Nikon D6 DSLR Camera PN 17225 User Manual Housing DSLR Introduction Package Contents Important Instructions Part Names and Functions Opening the housing Closing the housing Preparation for Use Recommended Accessories Care/Storage Warranty Specifi cations... -
Page 2: Introduction
PACKAGE CONTENTS Make sure that you have all the included items listed below before using this product. If some items are missing or damaged, contact your local Nauticam dealer. NA-D6 Padded Travel Case... -
Page 3: Important Instructions
O-ring renewal between the atmosphere and inside the and port change. housing. Only the accesories specifi ed by Use only Nauticam lubricant on silicone Nauticam must be used. Third-party rubber O-ring. accessories may result in malfunctions or damage to the product. -
Page 4: Part Names And Functions
PART NAMES AND FUNCTIONS Rear View Delete button Menu button Picture control button Zoom (in) preview button Zoom (out) preview button OK button Fn 3 button Multi selector LV lever Live view selector Moisture alarm window Release mode button QUAL button WB button AEL button Info button... - Page 5 PART NAMES AND FUNCTIONS Top + Front Views M28 Accessory port Optical fi ber cable connection Release mode dial Main switch M14 Accessory port Exposure compensation button M16 Accessory port Main command dial Mode button BKT button Metering button Accessory mounting ball Port lock safety button Port locking lever Port index mark...
- Page 6 PART NAMES AND FUNCTIONS Back + Side Views 1/4” Threaded tripod holes Zinc Anodes Zoom/Focus knob release Zoom/Focus knob AF-mode lever Fn 1 lever Fn 2 lever Info lever Playback lever AF-ON lever Movie record lever ISO lever Shutter release lever PV lever Sub-command dial...
-
Page 7: Opening The Housing
OPENING THE HOUSING * drawings as illustrations only depress housing unlock button turn housing lock outward lift up the back housing... -
Page 8: Closing The Housing
CLOSING THE HOUSING * drawings as illustrations only before closing the housing, clean and lubricate the main O-ring make sure nothing is caught between front and back housing and that they are fully aligned before locking turn housing lock inward until you hear and feel it click into place housing locked in place securely... -
Page 9: Preparation For Use
PREPARATION FOR USE * drawings as illustrations only Installing the Camera - housing tray attachment unlock camera tray lever and remove the tray from the housing attach the camera tray by tightening the tray screw into the tripod socket of the camera make sure the camera buttons are engaged with the camera tray * pull out the zoom/focus knob if... - Page 10 PREPARATION FOR USE * drawings as illustrations only Port Mounting depress safety button and rotate anti-clockwise lubricant the port O-ring before mounting align index mark push port assembly straight in rotate locking lever clockwise to lock...
- Page 11 PREPARATION FOR USE * drawings as illustrations only Coating housing O-ring Main O-ring remove the main O-ring using an O-ring remover clean the O-ring groove with a cloth and ensure that it is free from salt or other foreign materials lightly coat it with provided lubricant return the main O-ring by slowly pressing from one corner to the whole perimeter...
- Page 12 PREPARATION FOR USE * drawings as illustrations only Setting up moisture alarm CR2032 Battery Alarm ON/OFF remove battery press the battery down until it insulation fi lm click into place switch on the alarm test the alarm - the moisture alarm - connect the wires with a window will fl...
- Page 13 PREPARATION FOR USE * drawings as illustrations only Changing lens/port without opening the housing If using with vacuum valve : remove the cap from the vacuum valve and press the red button to release pressure before unlocking port lock If using without vacuum valve, please follow from step 2 unlock port lock and remove port assembly...
-
Page 14: Recommended Accessories
RECOMMENDED ACCESSORY * drawings as illustrations only Vacuum valve system remove the plug of M16 accessory port from the housing remove the cap from the vacuum valve hand pump slightly lubricate the o-ring and make sure the o-ring is in place vacuum valve accesory port on housing... -
Page 15: Care/Storage
CARE/STORAGE Soak the housing system in fresh water Operate all controls and buttons at after salt water usage least 3 times while immersed in fresh water We recommand cleaning and inspecting Protect the housing with robust and the main O-ring each time after diving for shock-proof travel case during trans- any damage and every time the housing portation. -
Page 16: Warranty
NAUTICAM accepts no liability for any damage to and defects in the housing caused by improper use and/or poor maintenance; it is the responsibility of the own- er to carefully follow the instructions in our manuals. -
Page 17: Specifi Cations
25108 M67 Double Flip Holder for M67 Macro Ports Monitor options 83250 M67 to Bayonet Mount Converter II 17922/S Nauticam Atomos Ninja V/V-S Housing for Atomos Ninja V 5” (excl. HDMI 2.0 cable) 83251 M77 to Bayonet Mount Converter II 83214 Bayonet Mount Adaptor for SMC/CMC HDMI connectivity accessories ( 1.4 ) - Page 18 Nauticam Internationl Ltd. Rm 2203, CCT Telecom Bldg, 11 Wo Shing St, Fo Tan, Hong Kong Tel. +852 - 26902711 Fax. +852 - 26909778 URL. www.nauticam.com Gallery. www.nauticam.smugmug.com...
