Summary of Contents for Nauticam NA-TG7
-
Page 1: Table Of Contents

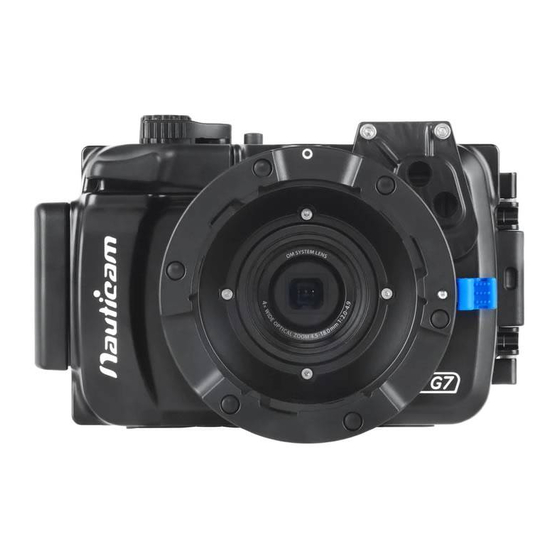

November, 2023 NA - TG7 For Olympus Tough TG 5 / 6 / 7 Camera PN 17820/17821 User Manual Housing COMPACT Introduction Package Contents Important Instructions Part Names and Functions Housing Mount Opening the Housing Closing the Housing Installing the Camera Installing the Diffuser Preparation for Use Care/Storage... -
Page 2: Introduction
PACKAGE CONTENTS Make sure that you have all the included items listed below before using this product. If some items are missing or damaged, contact your local Nauticam dealer. 17820 NA-TG7 Housing (BM) 17821 NA-TG7 Housing (M52) -
Page 3: Important Instructions
O-ring renewal between the atmosphere and inside the and port change. housing. Only the accesories specified by Use only Nauticam lubricant on silicone Nauticam must be used. Third-party rubber O-ring. accessories may result in malfunctions or damage to the product. -
Page 4: Part Names And Functions
PART NAMES AND FUNCTIONS Rear View Thumb position Housing unlock button REC button Quick control dial 1 Up/Exposure compensation button Right/Flash button Menu button Quick control dial 1 Left/Mode unction button Playback button Info button Menu/Set button... - Page 5 PART NAMES AND FUNCTIONS Top + Front Views M10 Accessory port ON/OFF lever Zoom/Focus knob release Rear dial Port index mark Optical fibre mount Lens release button...
- Page 6 PART NAMES AND FUNCTIONS Bottom + Side Views Sacrificial zinc anodes 1/4” Threaded tripod holes Lens release button Housing unlock button...
-
Page 7: Housing Mount
HOUSING MOUNT Housing mount Compatible accessories Cold shoe 25311 Strobe Mounting Ball for Cold Shoe 25312 Light Mounting Stem for Cold Shoe 25321 Long Strobe Mounting Ball for Cold Shoe 25322 Long Light Mounting Stem for Cold Shoe M10 Accessory port 25221 M10 Strobe Mounting Ball for Housing Hand straps and housing tray... -
Page 8: Opening The Housing
OPENING THE HOUSING * drawings as illustrations only depress housing unlock button turn housing lock latch anti-clockwise to open the housing flip open the back housing when lock latch is aligned to ‘open’ position... -
Page 9: Closing The Housing
CLOSING THE HOUSING * drawings as illustrations only before closing the housing, clean and lubricate the main O-ring make sure nothing is caught between front and back housing and that they are fully aligned before locking main O-ring insert the housing shaft into the shaft hole and then rotate the lock latch clockwise until you hear and feel it click into place... -
Page 10: Installing The Camera
INSTALLING THE CAMERA * drawings as illustrations only place the camera into the housing make sure that the housing is engaged and in-placed with camera holder... -
Page 11: Installing The Diffuser
INSTALLING THE DIFFUSER * drawings as illustrations only Using built-in flash remove the optical fibre mount screw the diffuser onto the housing as shown diffuser flash diffuser in place... -
Page 12: Preparation For Use
PREPARATION FOR USE * drawings as illustrations only Coating housing O-ring Main O-ring remove the main O-ring using an O-ring remover clean the O-ring groove with a cloth and ensure that it is free from salt or other foreign materials lightly coat it with provided lubricant return the main O-ring by slowly pressing from one corner to the whole perimeter... -
Page 13: Care/Storage
CARE/STORAGE Soak the housing system in fresh water Operate all controls and buttons at after salt water usage least 3 times while immersed in fresh water We recommand cleaning and inspecting Protect the housing with robust and the main O-ring each time after diving for shock-proof travel case during trans- any damage and every time the housing portation. -
Page 14: Warranty
NAUTICAM accepts no liability for any damage to and defects in the housing caused by improper use and/or poor maintenance; it is the responsibility of the own- er to carefully follow the instructions in our manuals. -
Page 15: Specifications
SPECIFICATIONS 17820 NA-TG7 Housing for Olympus Tough TG 5 / 6 / 7 Camera (BM) Construction Hand strap Housing body Hard Anodized Aluminium Alloy 36316 Hand Strap for Mirrorless IL Camera & Compact Camera Housing Display window Abrasion Resistant Polycarbonate... - Page 16 SPECIFICATIONS 17821 NA-TG7 Housing for Olympus Tough TG 5 / 6 / 7 Camera (M52) Construction Hand strap Housing body Hard Anodized Aluminium Alloy 36316 Hand Strap for Mirrorless IL Camera & Compact Camera Housing Display window Abrasion Resistant Polycarbonate...
- Page 17 Nauticam Internationl Ltd. Rm 2203, CCT Telecom Bldg, 11 Wo Shing St, Fo Tan, Hong Kong Tel. +852 - 26902711 Fax. +852 - 26909778 URL. www.nauticam.com Gallery. www.nauticam.smugmug.com...
