Percussion Play Wall Marimba Installation Instructions

Percussion Play Wall Marimba Installation Instructions

Wall fixed

Advertisement

Quick Links

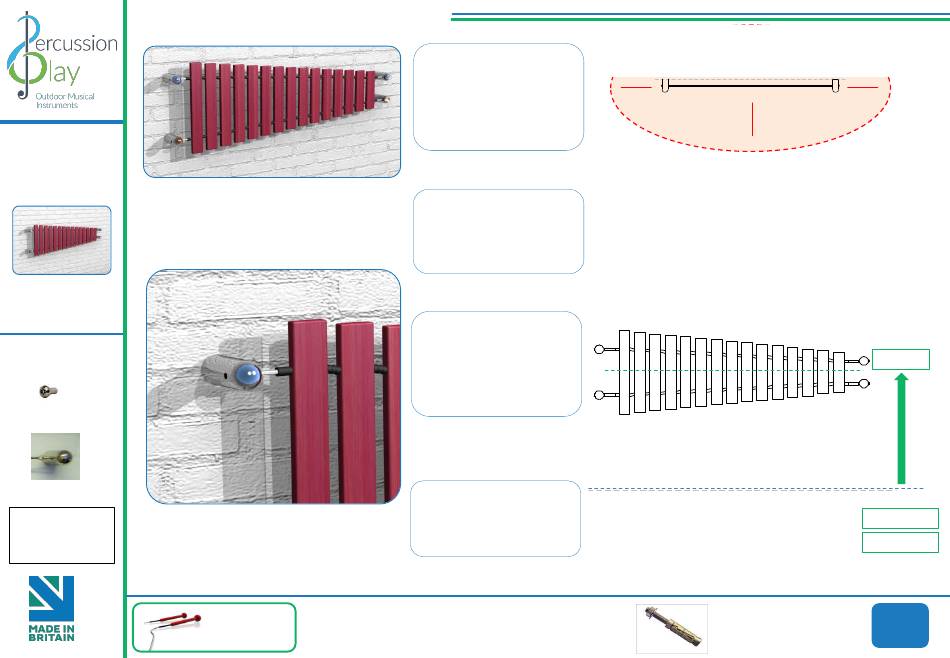

Installation Instructions

Wall Fixed

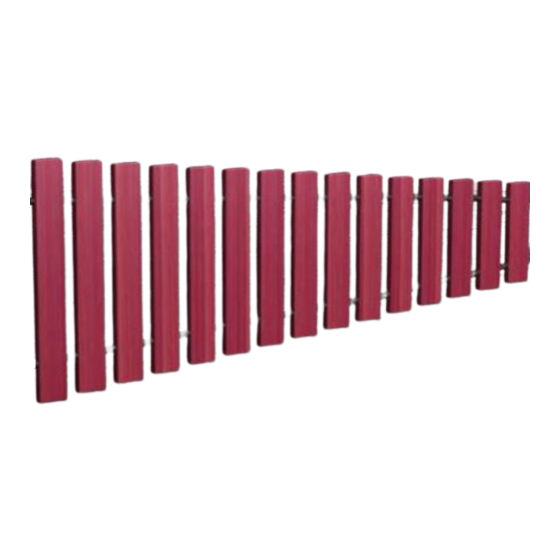

Wall Marimba
Page 1 of 3
Instrument
Components:
x4
M8 Barrel Nut
x4
Wall mounts
Metric Conversion:
700mm/ 28"
850mm/ 33"
1m/ 39"
Weight of heaviest part
BS EN 1176
12kg
(Wall Marimba Notes)
Wall fixings are not supplied, installer will select suitable
Pair Small Red
method of fixing. Suggested Fixing M10 Rawl Bolt
Beaters X1
1. Mark hole positions on wall,
then drill to manufacturers
specified diameter and depth
of M10 rawl bolt (See Wall Fix
installation sheet)
2. Once holes are drilled
insert M10 rawl bolts into
holes and set in place to
secure tightly
3. Attach wall mounts onto
rawl bolts making sure they
are tight to the wall and have
the large holes to the outside.
Use a long tool to tighten
further.
4. Once all mounts are fixed
in place attach the notes
using M8 Barrel Nuts and Pin
torx bit.
Install Instrument with 1m free space (from widest point) around it.
1m
1m
Spares available from
percussionplay.com
local distributor
1m
KS1,KS2
Ground Surface
KS2 - 850mm
KS1 - 700mm
14 Kg
or from your
