Atdec A F -AT-W Installation Manual page 2

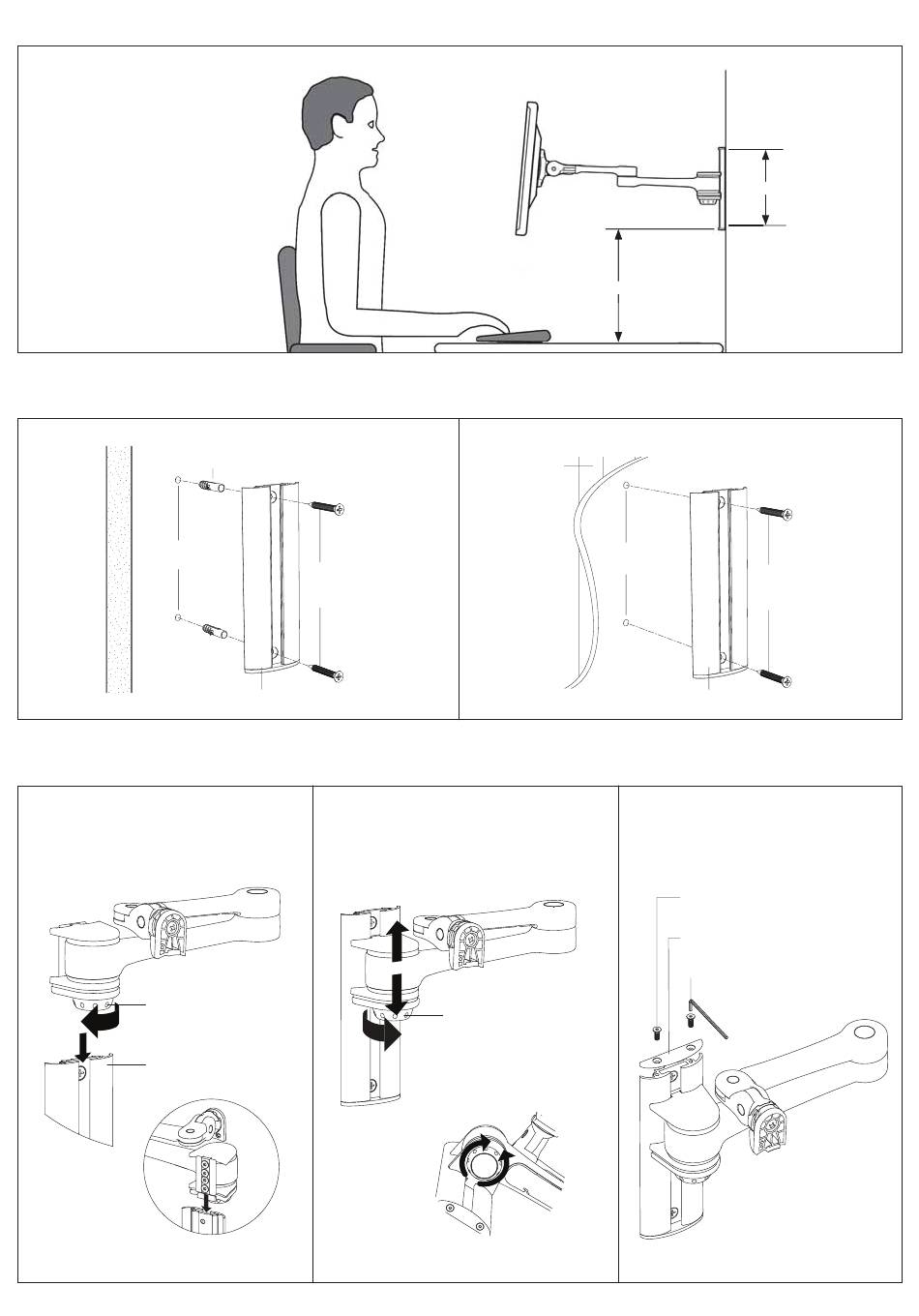

1. Position Wall Plate
As a guide, it is recommended
that the bottom of the
Wall Plate be positioned
approximately 140mm (5 1/2")
above the desktop.
2. Choose the appropriate installation procedure depending on your wall type
Masonry
8mm (5/16")
Hole
3. Mount Arm Assembly
3.1 Unlock the Locking Dial before
inserting the Arm Assembly into the
Wall Plate
Locking Dial
Wall Plate
Nylon
Anchors
M6 x 50mm
Countersunk
Screw
Wall Plate
3.2 Slide the Arm Assembly to the preferred
height and lock to secure the arm
140mm (5 1/2")
Timber Stud
Timber
Stud
5.5mm
(1/4") Hole
v
Locking Dial
Note: The wall-mounted
arm provides vertical
adjustment of 128mm.
128mm (5")
M6 x 50mm
Countersunk
Screw
Wall Plate
3.3 Secure the End Cap with the
supplied M4x12mm Countersunk
Screws and 2.5mm Allen Key
M4x12mm
Countersunk Screw
End Cap
2.5mm Allen Key
AF-AT-W Page 2 of 4
