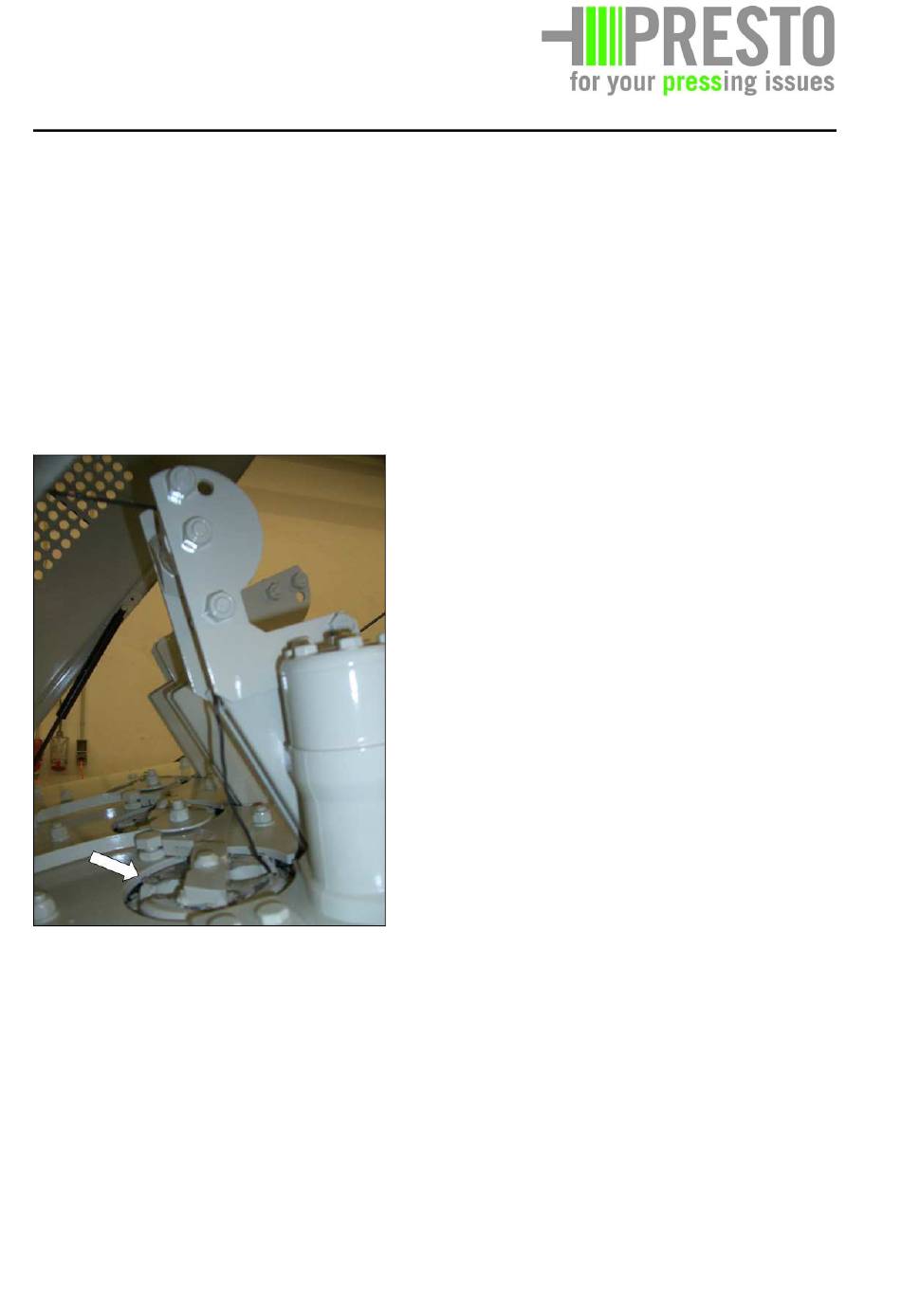

If the desired bale length has been achieved
the compressing die will stop in the front final
position. The drilling discs make a half way
rotation and transport the upper wire in one
opening. The lower wire is led from the needle
as a loop upward and laid into the free opening
of the drilling disc (⇒). After a number of
rotations of the drilling disc the drilling process
is finished with a return rotation and the
subsequent cutting.
Drilling disc
You will find the detailed description with
regard to the operation and the sequence of
the tie-off process in chapter 6 "Operation".
