Installation instructions

Installation, electrical connection and the first commissioning is permitted to
be performed by a worker with relevant qualifications. The panels are intended
for mounting on a wall. The producer must be consulted before any other form
of installation is attempted.

Installation on the wall

•
Mark the holes according to the table, drill out the holes, insert the dowels
and drive the screw in to protrude approx. 5 mm. (Fig. 4)
•
Always hang the panel by all four mounting slots.
•
Put the panel on the screws.

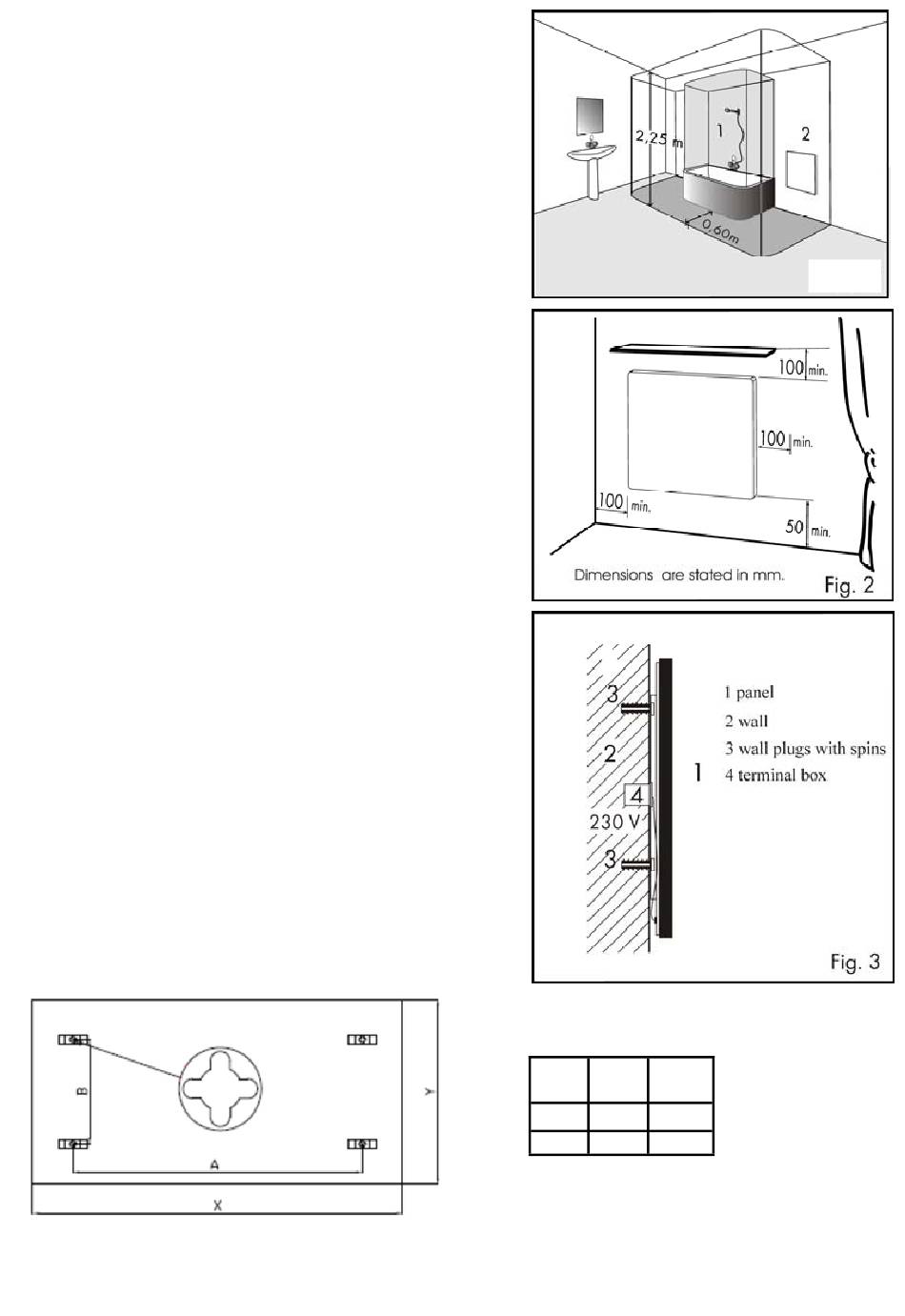

Clearance distances
The distance between the bottom edge of the appliance and the floor mustn't
be less than 50 mm; 150 mm is recommended. The clearance distance on the
side (e.g. from furniture) must be at least 100 mm, and 100 mm is the mini-
mum in the upward direction (see Fig. 2).
In bathrooms, the panel must be installed in accordance with the HD 60364-7-
701:2007 standard and is permitted to be located in accordance with Fig. 1.
The panel is a class II appliance, with IP 44 coverage. The panel must not be
placed directly under an electric socket.
8
W A
(mm)
300 335
600 935
Fig.4
Fig.1
B
(mm)
360
360
