Installation, electrical connection and the first use
should only be performed by a qualified person.
Distances
The distance from the lower edge of the appliance
to the floor should not be less than 50 mm. There
should also be a distance of at least 100 mm at the
sides, e.g. to a furniture, and above (see Fig. 2).
In bathrooms, the panel must be installed
in accordance with Figure 1 in zones 2 and 3.
The panel is a class II equipment and is splash water
protected with the IP 44 protection. The panel should
not be arranged right under a fixed connection
socket. The electric installation must be equipped
with a double pole switching device with a control
gap opening of at least 3 mm (this requirement is
met by the Fenix Therm 100 thermostat.

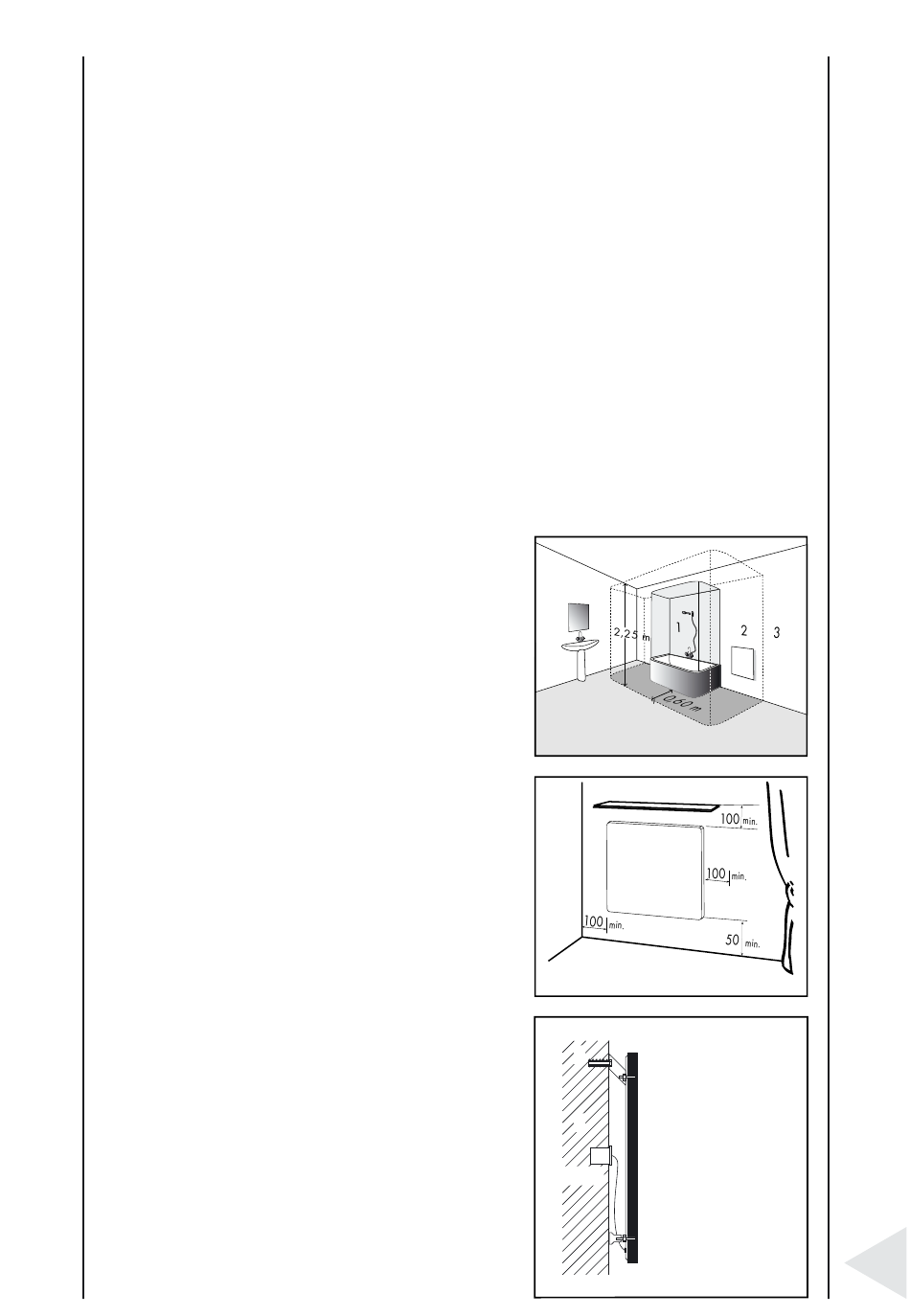

fig. 1
dimensions in mm
2
1 marble panel
5
2 mounting bracket
3 adjustment rest
4 4 wall
1
5 dowel and screw
6
6 junction box
230 V
3
fig. 2
GB
fig. 3
5
